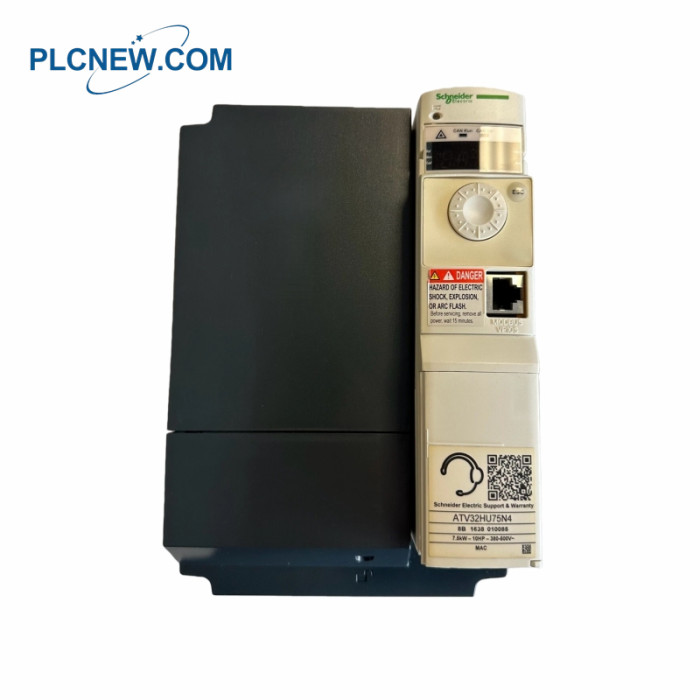

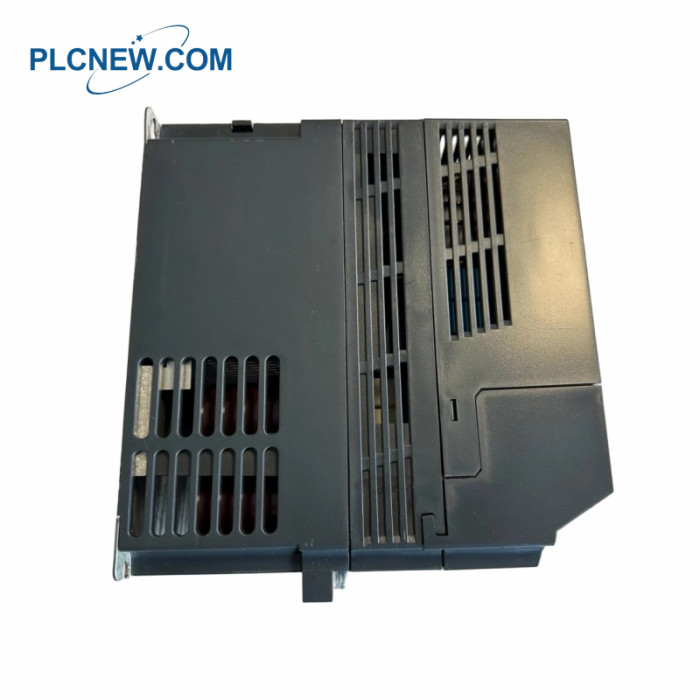

Schneider ATV32HU75N4 Variable speed drive
Product Details
Manufacturer: Schneider ElectricThe Schneider Electric ATV32HU75N4 is part of the Altivar 32 series and operates as a variable-speed drive. It is rated
at 7.5 kW, equivalent to 10 horsepower, making it applicable in numerous industrial settings requiring adaptable motor
control. The drive accommodates supply voltages within 380 to 500 V for a three-phase system and can function with
50 or 60 Hz supply frequencies. The speed range for asynchronous motors in open-loop mode is between 1 and 100.
In terms of performance, the drive provides a nominal output current of 14.2 A at 500 V and an apparent power rating
of 15.5 kVA. The switching frequency can be tailored from 2 to 16 kHz, allowing users to optimize for specific
applications. When braking is necessary, the drive can deliver a braking torque of up to 170% when used with an
appropriate braking resistor.
Accuracy is within ±15%, ensuring reliable torque delivery, and the drive can experience transient overtorque
reaching between 170 and 200% of its rated torque. Protection features are included to prevent overcurrent,
phase loss, short-circuits, and overheating, enhancing the system's reliability. Communication ports supporting
Modbus and CANopen protocols enable efficient integration into various control systems.
