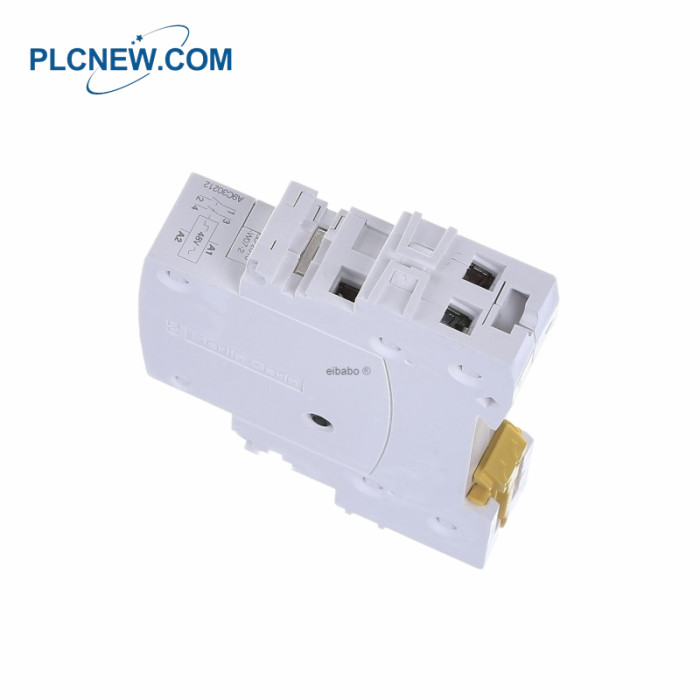

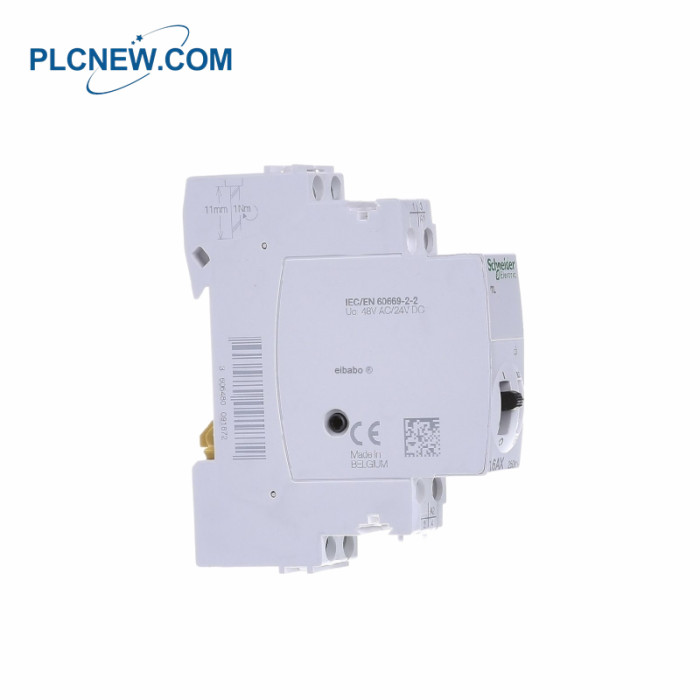

Schneider A9C30212 Modular impulse relay
Specifications
Model Number
A9C30212
Pole Contact Composition
2 NO
Rated Current [In]
16 A
Network Type
AC
Control Circuit Voltage [Uc]
48 V AC 50/60 Hz；24 V DC
Network Frequency
50/60 Hz
Rated Operational Voltage [Ue]
250 V AC 50/60 Hz
Switching Frequency
100 switching operations/day
5 switching operations/minute
Impulse Duration
50 ms … 1 s
Relative Humidity
95 % at 55 °C
Operating Ambient Temperature
-20 … 50 °C
Storage Ambient Temperature
-40 … 70 °C
This Acti9 iTL is a modular impulse relay. This 2P device has 2 normally open contacts. Rated current is 16A, 24VAC to
250VAC operating voltage and it operates with 48VAC or 24VDC control voltage. Electrical endurance goes up to 200000
cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 100 switching operations/day or 5
switching operations/minute. The duration of the command order should be between 50ms to 1s. It is mainly used
for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage
is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is
IV. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The degree of protection is IP20 and IP40 in an enclosure.
The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C. This product is
compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.
Product Applications
Industrial manufacturing plant: As part of the internal power distribution system of the factory building, it is used to
control the terminal circuits of the equipment.
Architecture and infrastructure: Applied to shopping malls, office buildings, and large factories for building control.
Lighting control system: For high-power switching of industrial and commercial lighting.
Motor control: Start and stop control of small single-phase motors.
