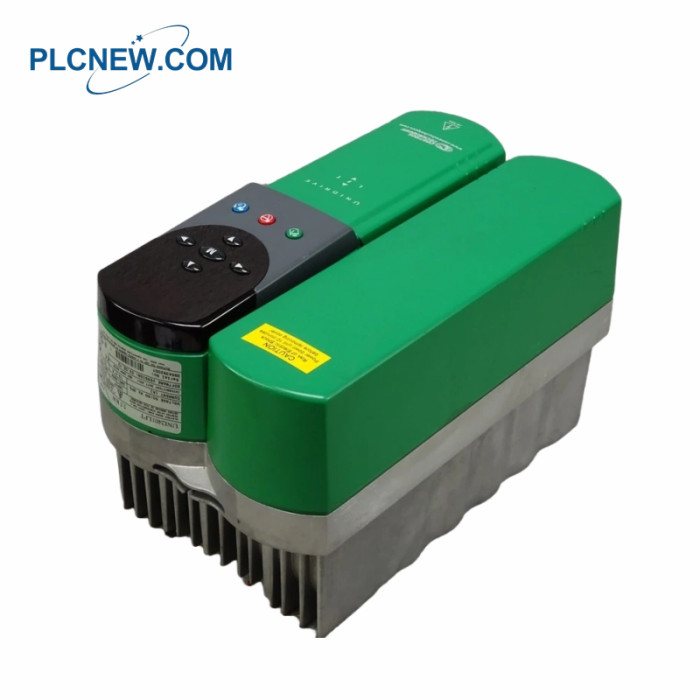

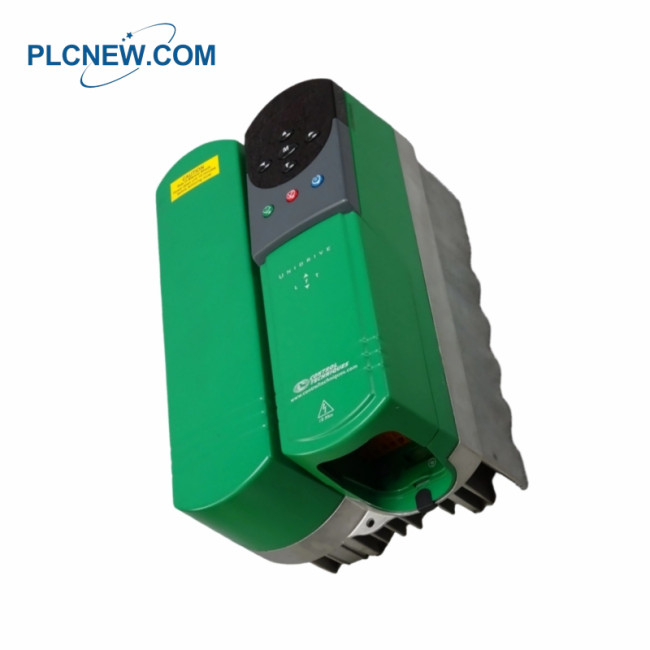

Control Techniques UNI2401 AC Drive

Control Techniques UNI2401 AC Drive

Control Techniques UNI2401 Specification

Part Number: UNI2401
Manufacturer: Control Techniques
Type: AC Drives
Nominal Rating (kW): 5.5
Nominal Rating (hp): 7.5
Max.  Continuous Output Current at 40°C Ambient (A):
3kHz: 12
4.5kHz: 12
6kHz: 12
9kHz: 12
12kHz: 11.7
Max.  Continuous Output Current at 50°C Ambient (A):
3kHz: 12
4.5kHz: 12
6kHz: 12
9kHz: 11.6
12kHz: 9.7
Typical Input Current (A): 13
Max.  Continuous Output Current (A): 16
Minimum Resistance (Ω): 40
Instantaneous Power Rating (kW): 15

Control Techniques UNI2401 Description

The Control Techniques UNI2401 AC Drive is a versatile and highly efficient motor control solution, designed to meet

the diverse needs of modern industrial applications. As part of the Unidrive SP series, this drive offers a robust combination

of power, flexibility, and precision, making it ideal for various operational environments. The UNI2401 is equipped with

multiple operating modes, including Open Loop, Closed Loop vector, Servo, and Regen, allowing it to adapt to various

motor control requirements easily. With its advanced features and reliable performance, the UNI2401 is valuable for

industries looking to enhance their motor control capabilities.

Frequently Asked Questions

1. What are the primary operating modes of the UNI2401 AC Drive?
The UNI2401 AC Drive supports multiple operating modes, including Open Loop, Closed Loop vector, Servo, and Regen.
2. What is the nominal power rating of the UNI2401?
The UNI2401 AC Drive has a nominal power rating of 5.5 kW, equivalent to 7.5 horsepower (HP).
3. How does the drive perform under different switching frequencies?
The UNI2401 is designed to maintain a maximum continuous output current of 12 amps at a 40°C ambient

temperature across various switching frequencies, including 3kHz, 4.5kHz, 6kHz, and 9kHz.
4. What is the typical input current for the UNI2401 AC Drive?
The typical input current for the UNI2401 AC Drive is 13 amps.
