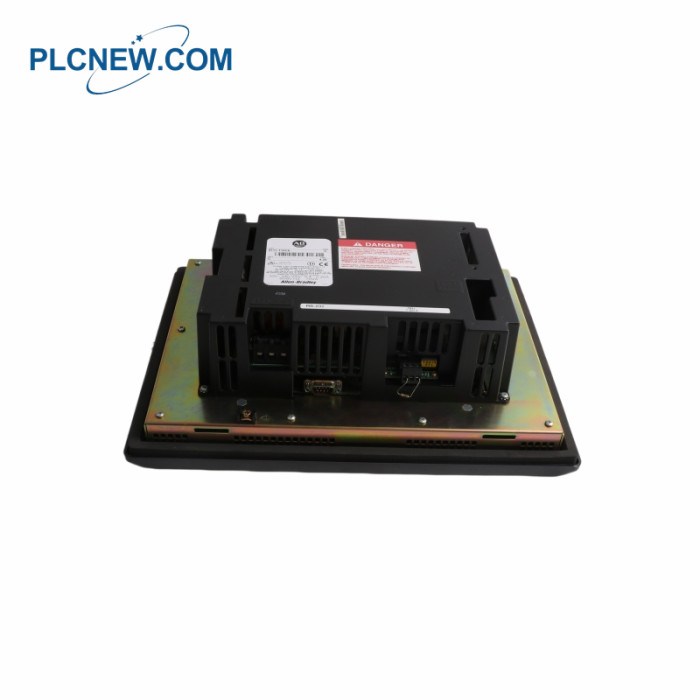

2711-T10C8 AC-powered operator terminal
Specifications
|
Part Number |
2711-T10C8 |
|
Weight |
8.00 lbs (3.63 kg) |
|
Display Size |
10.1 in. |
|
Display Area |
211 × 158 mm (8.3 × 6.2 in.) |
|
Screen Resolution |
640 × 480 pixels |
|
Backlight Service Life |
100,000 hours LED backlight |
|
Touchscreen Grid |
384 points (24 columns × 16 rows) |
|
Touch Cell Size |
26 × 30 pixels |
|
Application Memory |
1008K bytes (for application screens) |
|
Communication Ports |
Data Highway Plus (DH+), RS232 (printer interface) |
|
Input Voltage Range |
85～264V AC, 47～63 Hz |
|
Operating Temperature |
0～55 °C (32～131 °F) |
|
Heat Dissipation |
39 W (132 BTU/HR) |
The graphic operator terminal with catalog number 2711-T10C8 is part of the 2711 PanelView Standard operator
terminals. It is specifically part of the PanelView Plus 1000 operator terminals which comes with standard capabilities
such as a 10.1-inch colored display screen with resolution of 640 x 480 pixels, touch input interface and integral 1008
Kbytes internal flash memory.
The 2711-T10C8 has specific feature provided by the built-in Data Highway Plus (DH+) communication port and RS232
Printer interface. The DH+ port is used for exchanging data with partner controllers such as PLC5, SLC500, and other
PLC , even with 3rd party devices with support for DH+ protocol as well. DH+ uses a 3-wire cable, which may be
implemented in long distances and support communication with one or more controllers. The secondary port which
is the RS232 is used for communicating with alarm printers, enabling printing and documenting of alarms and events
for historization and reports.
The 2711-T10C8 is a flush mounted to an enclosure and supports horizontal orientation only. It requires mounting
clearance of 51 mm or 2 inches on all sides to ensure adequate air flow as well as working space for installation of
additional components intended for the operator terminal.
Product Applications
Automotive manufacturing and parts production lines: Used in complex stamping, welding, and assembly lines to
display fault codes, cycle times, and set parameter formulations.
Chemical and petrochemical industries: Used at the front end of reaction vessels and batching control systems (DCS/PLC)
to monitor temperature and pressure transmitter data and valve on/off status in real time.
Water treatment and environmental engineering: Used in sewage treatment and waterworks pump station control to
visually display water flow pipeline diagrams and pump unit operating status.
Paper, printing, and packaging industries: Used for tension adjustment and alarm information recording in multi-axis
linkage equipment and winding/unwinding control.
