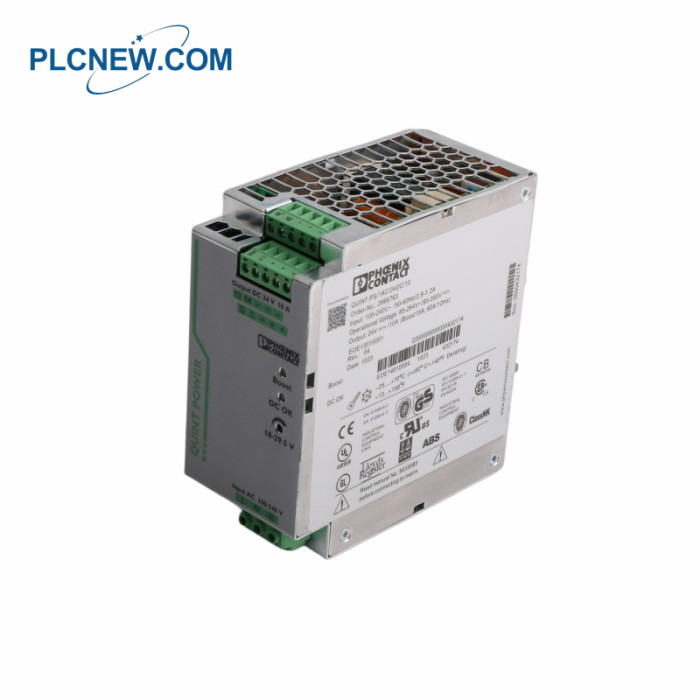

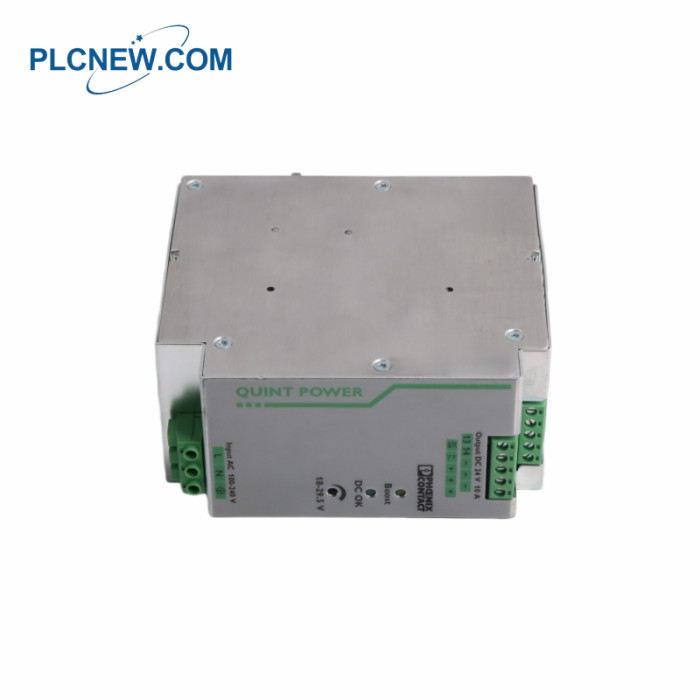

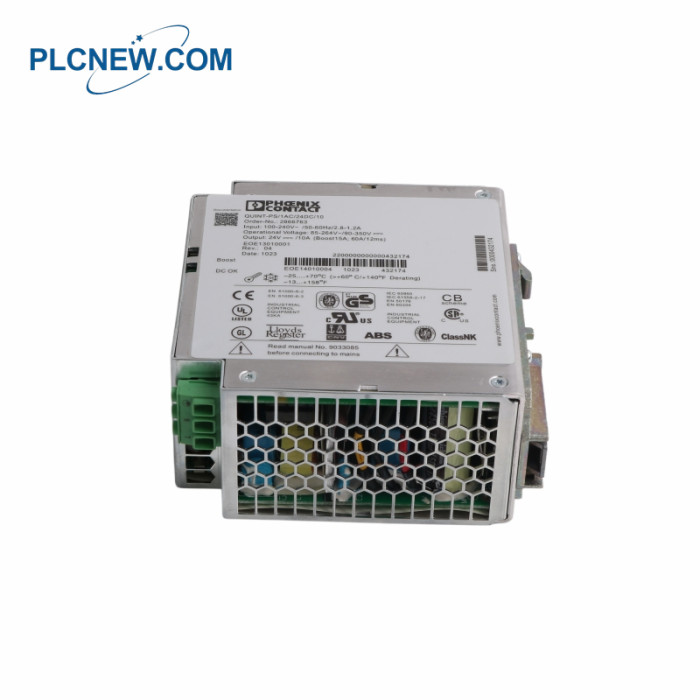

Phoenix Contact QUINT-PS 1AC/24DC/10 2866763 Power supply unit
Specifications
Part Number
QUINT-PS 1AC/24DC/10 2866763
AC Operation
Nominal Input Voltage Range
100 V AC … 240 V AC
110 V DC … 250 V DC
Input Voltage Range (AC)
85 V AC … 264 V AC
Derating IStat. Boost
＜100 V AC (1 %/V)
Dielectric Strength (Max.)
300 V AC
Typical Grid Voltage
120 V AC, 230 V AC
Supply Voltage Type
AC
Inrush Current
＜15 A
Inrush Current Integral (I²t)
＜1.5 A²·s
Inrush Current Limitation
15 A
AC Frequency Range
45 Hz … 65 Hz
DC Frequency Range
0 Hz
Nominal Power Consumption
302 VA
DC Operation
Nominal Input Voltage Range
110 V DC … 350 V DC
Input Voltage Range (DC)
110 V DC … 350 V DC
Derating IStat. Boost
＜110 V DC (1 %/V)
Current Consumption
2.5 A (110 V DC)
1.2 A (220 V DC)
Nominal Output Voltage
24 V DC ±1 %
Static Boost (IStat.Boost)
15 A
Selective Fuse Breaking (ISFB)
60 A (12 ms)
Magnetic Circuit Breaker Tripping
B2 / B4 / B6 / C2 / C4
Derating
60 °C … 70 °C (2.5 %/K)
Feedback Voltage Resistance
≤ 35 V DC
QUINT POWER power supplies with maximum functionality QUINT POWER circuit breakers magnetically and therefore
quickly tip at six times the nominal curent, for selective and therefore cost-effectvesystem protection The high level of
system availability is additonally ensured., thanks to preventive function monitoring. as it reports critcaloperating states
before errors occurReliable starting of heavy loads takes place via the static power reserve POWER BOOST. Thanks to
the adjustable votage, allranges between 5VDC ... 56 V DC are covered.
Product Applications
Industrial and Control Systems: Applied in factory , robot control, machine tools and automated production lines,
providing reliable 24V DC power supply for PLCs, sensors and actuators.
Heavy Industry and Power Industry: Suitable for power plants, power transmission and transformation systems, oil
and gas, mining equipment, etc., capable of coping with harsh environments with high impact, high vibration and
extreme temperatures.
Process Control and Chemical Industry: Meeting the demand for high-reliability power supply in hazardous chemical
production environments, with a sturdy structure and good heat dissipation performance.
Transportation and Infrastructure: Applied in railway signal systems, rail transit, tunnel monitoring and intelligent
monitoring systems of transportation hubs.
Building and Equipment Engineering: Suitable for central monitoring of large buildings, HVAC (heating, ventilation
and air conditioning) systems and elevator control.
