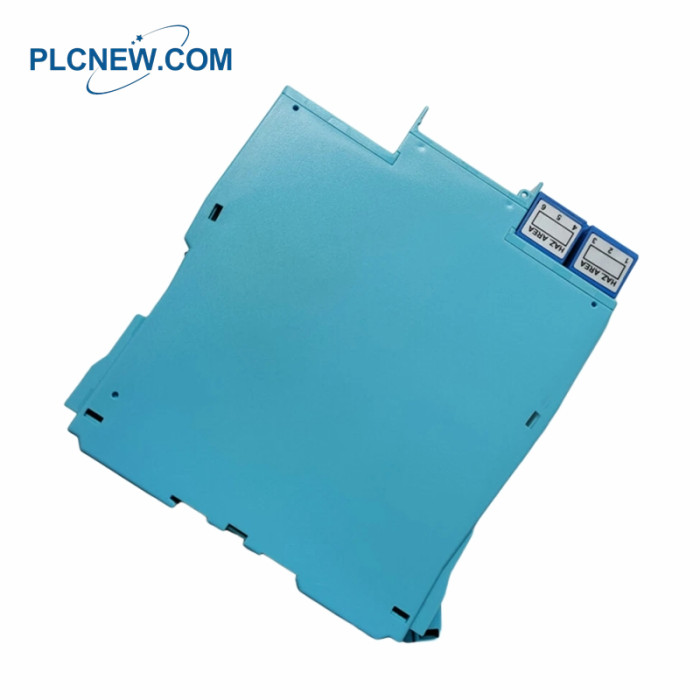

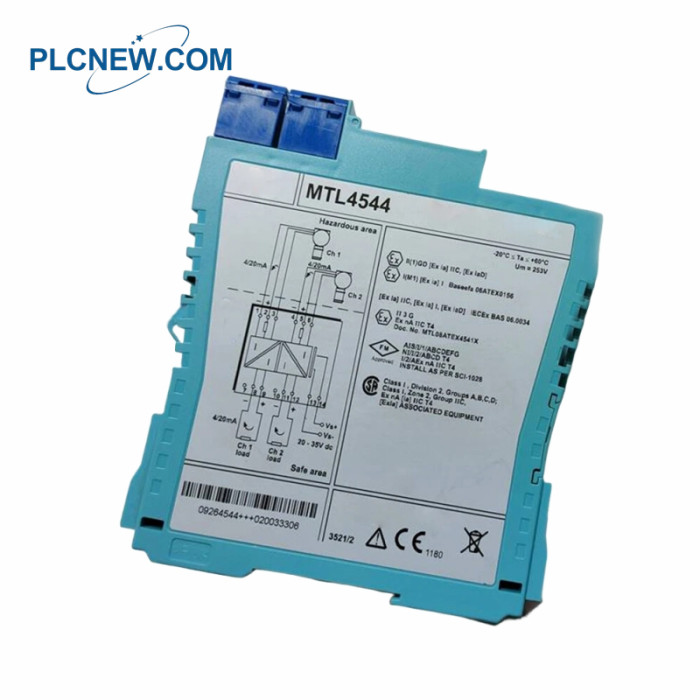

EATON MTL4544 Repeater Power Supply
EATON MTL4544 Specification
Manufacturer : EATON
Product No. : MTL4544
Product Type : Repeater Power Supply
Signal range: 4 to 20mA
Under/over-range: 0 to 24mA
Safe-area circuit ripple : < 50µA peak-to-peak
Hazardous-area input
Signal range: 0 to 24mA (including over-range)
Transmitter voltage: 16.5V at 20mA
Transfer accuracy at 20°C : Better than 15µA
Temperature drift : < 0.8µA/°C
EATON MTL4544 Description
The MTL4544 provides fully-floating dc supplies for energising twoconventional 2-wire or 3-wire 4/20mA or HART
transmitters located ina hazardous area,and repeats the current in other circuits to drive twosafe-area loads.For
smart transmitters,the unit allows bi-directionaltransmission of digital communication signals superimposed on
the4/20mA loop current. Alternatively, the MTL4544 acts as a currentsink for a safe-area connection rather than
driving a current into theload.Separately powered current sources, such as 4-wire transmitterscan be connected
but will not support HART communication.
