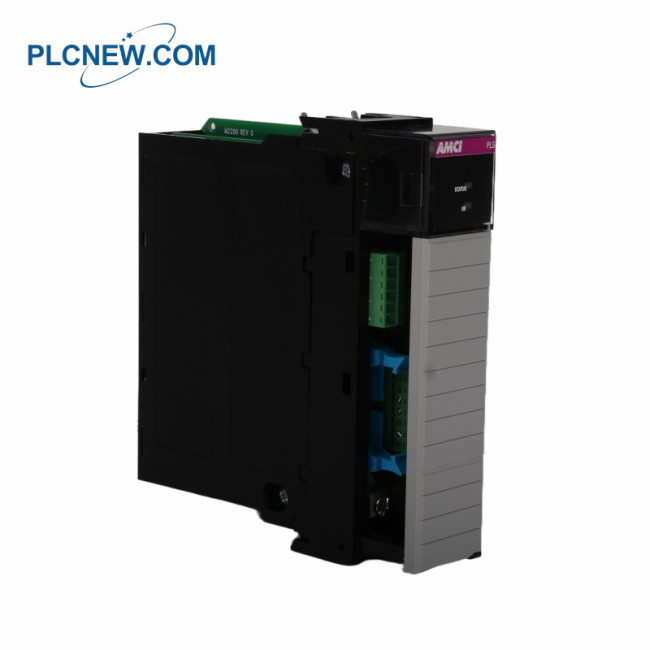

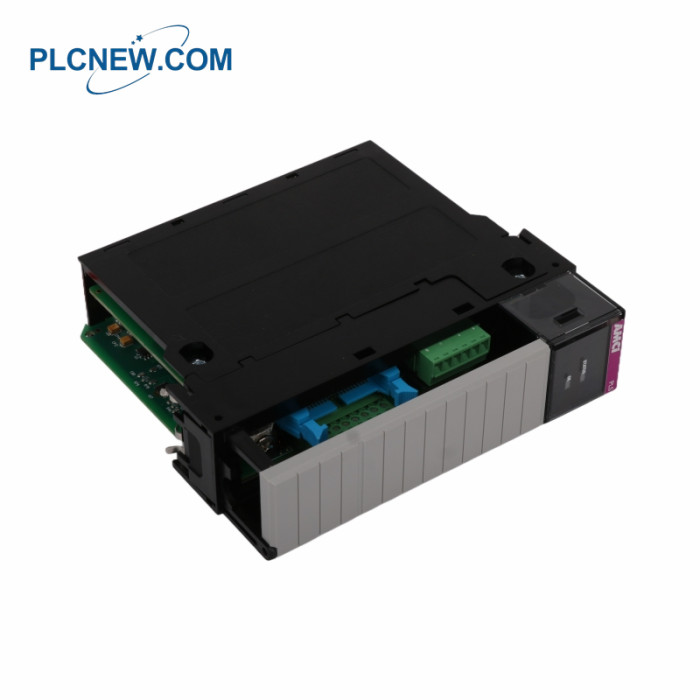

AMCI 8213 Programable Limit Switch

AMCI 8213 Programable Limit Switch

Product Details

Manufacturer: AMCI
Product Model: 8213
Number of Outputs: 8 to 16 programmable outputs
Output Type: Digital
Output Capacity: 24 V DC, up to 0.5 A per channel
Resolution: 1 part in 4096 per revolution
Accuracy: ±1 count of encoder feedback
Response Time: < 1 ms
Power Supply: 24 V DC nominal (±10%)
Operating Temperature: –10 °C to +60 °C

Interconnections between the 8213 and relay boards are made with CRP-() cables, where (x) is thelength in feet.

Presently, two, six, and twelve foot cables are available from AMCl. CRP cables areshielded, fine pitch ribbon cables with

drain lugs at both ends. Due to their complexity, AMCl stronglyrecommends that you purchase pre-assembled and tested

CRP cables instead of making them yourself.Connections are made by inserting the blue lDC connector into the proper

socket and connecting the drainwire to the screw terminal. Note that the lDC connector is keyed and can only be inserted

 in one way.The retaining clips on the lDC socket snap over the top of the connector to secure it in place. The drainwire

on the CRP cable must be connected to the screw terminals next to the lDC sockets. The screwterminal on the 8213

module is connected to Earth Ground. The two screw terminals on the RB-8 relayboards are connected together. RB-8’s

have two lDC sockets that allow you to daisy chain a second relayboard to it. The CRP cable firom the 8213 is connected

to the socket labeled “CNl” on the first RB-8. Asecond CRP cable is connected from the “CN2" socket of the first RB-8 to

the “CNl" socket of either aRB-7 or RB-8. The first RB-8, the one connected to the 8213, has the Inputs and Outputs l to

8. If thesecond relay board is an RB-7, it has the Outputs 9 to 16. If the second relay board is an RB-8, it has theInputs

and Outputs 9 to 16.
