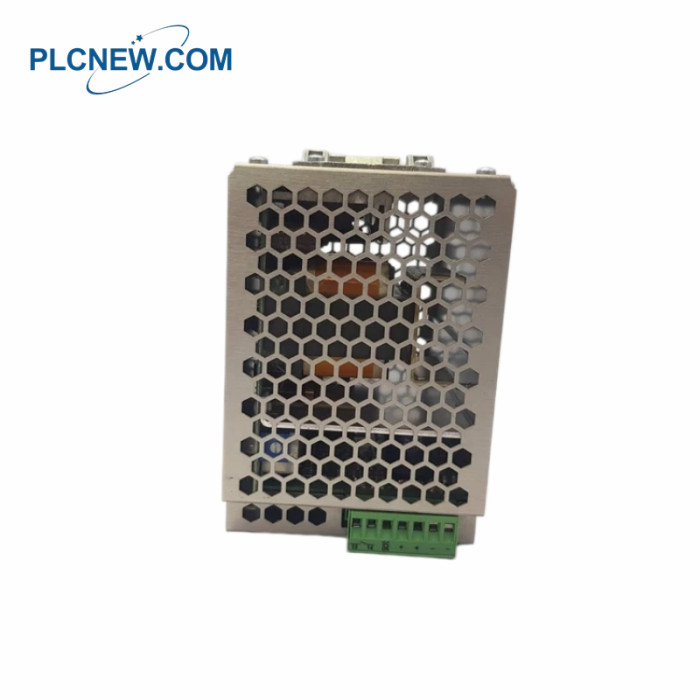

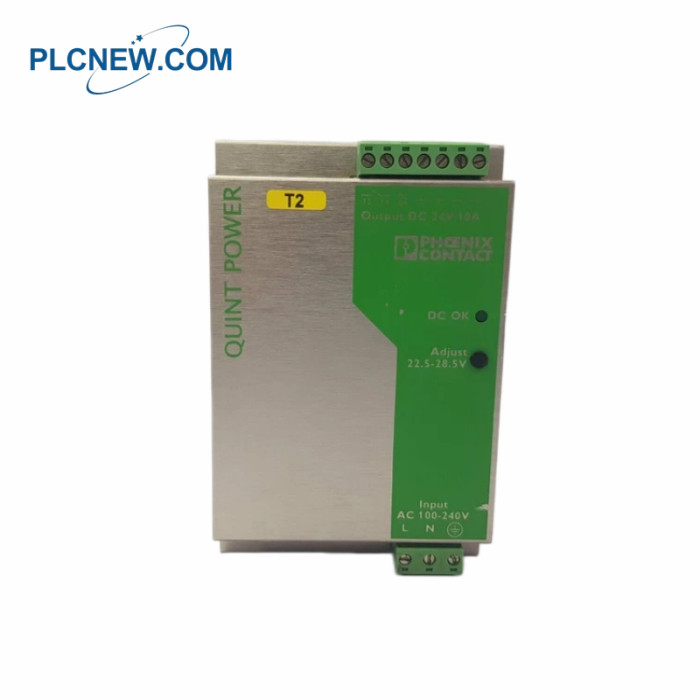

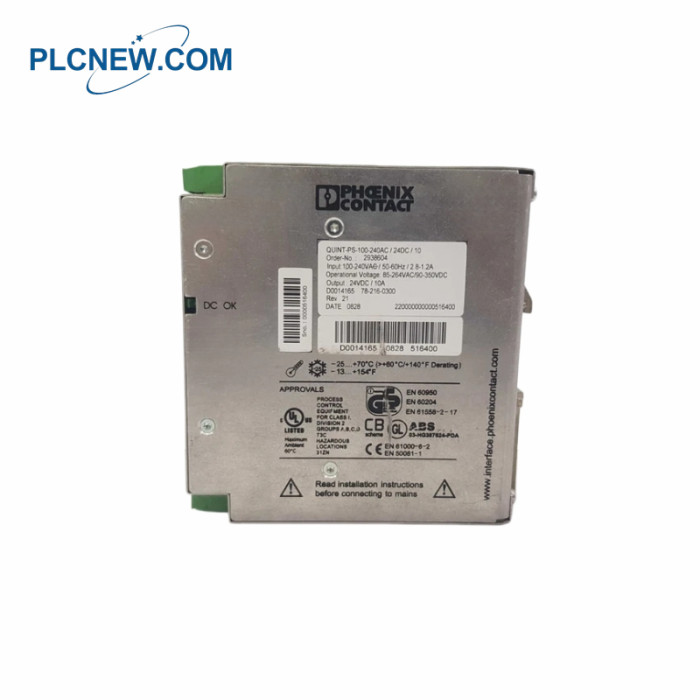

PHOENIX CONTACT QUINT-PS100-240AC/24DC/10 2938604 Power supply

PHOENIX CONTACT QUINT-PS100-240AC/24DC/10 2938604 Power supply

Details of the module

Input Voltage Range:
85 V AC ... 264 V AC
90 V DC ... 350 V DC
Input Voltage Range AC: 85 V AC ... 264 V AC
Input Voltage Range DC: 90 V DC ... 350 V DC
Voltage Type of Supply Voltage: AC/DC
Inrush Current: < 15 A (typical)
Inrush Current Integral (I²t): < 1.5 A²s
AC Frequency Range: 45 Hz ... 65 Hz
Frequency Range DC: 0 Hz
Efficiency: > 91 %
Nominal Output Voltage: 24 V DC ±1 %
Nominal Output Current (IN): 10 A (up to 60 °C)
Output Description: UOUT > 0.9 × UN: High signal
Maximum Switching Voltage: ≤ 24 V
Output Voltage: +24 V DC (Signal)
Maximum Inrush Current: ≤ 40 mA
Continuous Load Current: ≤ 40 mA

The PHOENIX CONTACT QUINT‑PS100‑240AC/24DC/10 is a high-reliability industrial switching power supply designed for

and control applications requiring stable 24 V DC output. It belongs to the QUINT POWER series from Phoenix Contact and

is widely used in PLC cabinets, distributed I/O systems, and machine control panels.

Frequently asked questions：

1. What is the main function of the QUINT-PS100-240AC/24DC/10?
It converts AC or DC input power into a stable 24 V DC supply, which is widely used to power PLC systems, sensors,

relays, and  equipment.
2. What does the POWER BOOST feature do?
POWER BOOST allows the power supply to deliver up to 15 A temporarily, enabling reliable startup of devices with high

inrush currents such as motors or large PLC racks.
3. Can multiple power supplies be connected together?
Yes. The unit supports parallel operation for redundancy or increased output capacity and can also be connected in series

if required.

Industrial Features & Approvals
Expert reviews and technical listings highlight several specialized features:
SFB Technology: Selective Fuse Breaking technology allows it to provide up to six times the nominal current for 12

ms, ensuring individual circuit fuses trip reliably without collapsing the entire DC bus.
Durability: Rated for operation between -25°C and 70°C with an MTBF (Mean Time Between Failures) of over 500,000

hours.
Global Approvals: Certified for various international standards, including UL 508, UL 60950-1, and Class I, Division 2

for hazardous locations.
