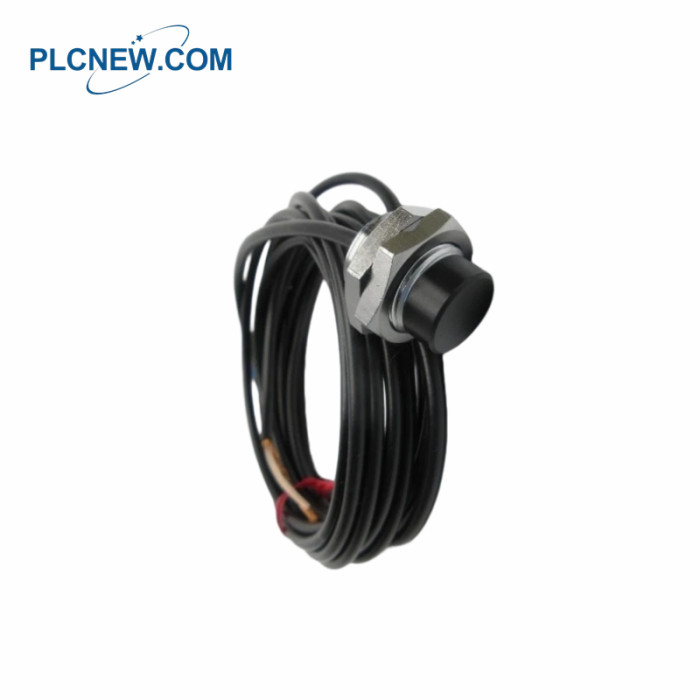

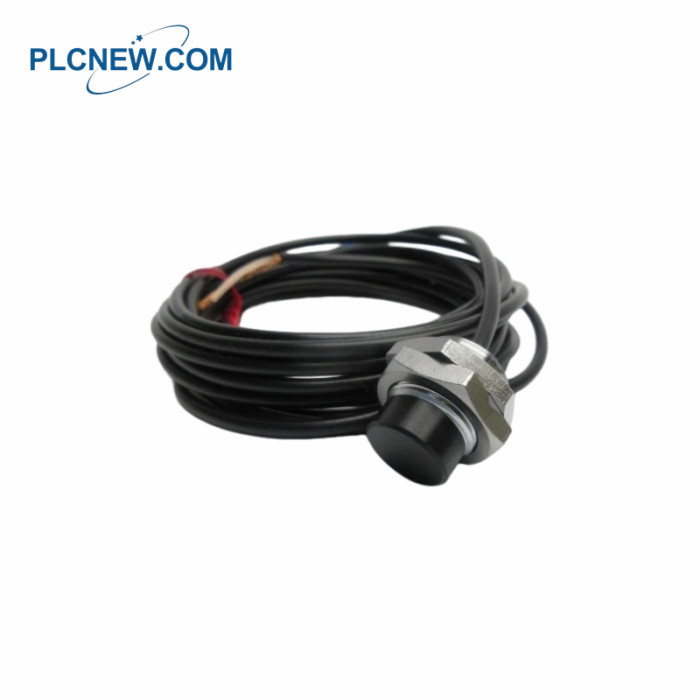

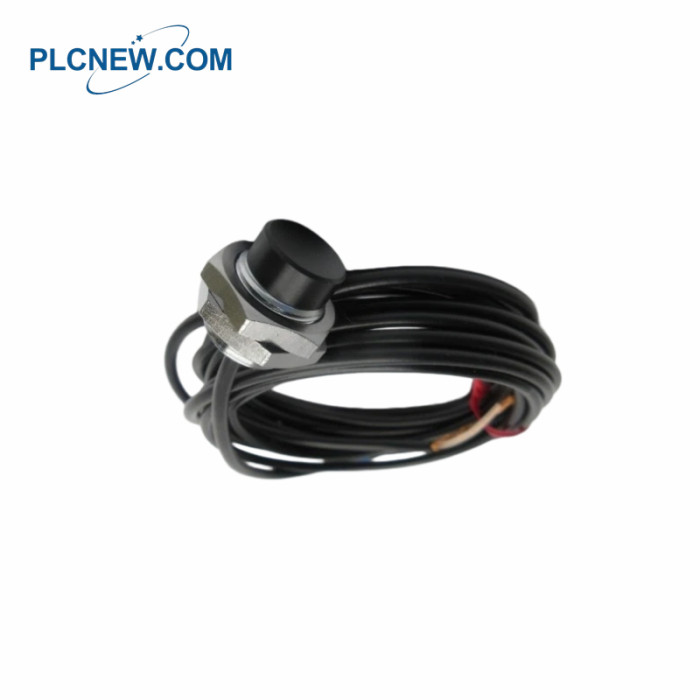

KEYENCE EX-416 Proximity Sensor
Specifications
|
Model |
EX-416 |
|
Output Voltage |
0~5 V, output impedance: 100 Ω |
|
Output Current |
4~20 mA, applicable load resistance: 0~350 Ω |
|
Resolution |
0.04% F.S. (under LOW response frequency mode) |
|
Linearity |
±1% F.S. |
|
Response Frequency (HIGH) |
13 kHz (-3 dB) |
|
Response Frequency (LOW) |
1.3 kHz (-3 dB) |
|
Power Supply Voltage |
12~24 VDC ±10% |
|
Max Current Consumption |
240 mA |
|
Enclosure Protection Rating |
IP67 |
|
Ambient Operating Temperature |
-10~+60 °C (no icing) |
|
Relative Humidity |
35~85 % RH, non-condensing |
The KEYENCE EX-416 is a high-precision displacement sensor head designed for non-contact measurement applications
in industrial , quality inspection, and positioning systems. When paired with the EX-205 amplifier unit, the sensor
provides accurate distance measurement within a 0 to 5 mm measuring range, making it ideal for detecting small
positional changes and dimensional variations in manufacturing processes.
The EX-416 features a compact M16 threaded cylindrical housing (Ø14.5 mm) that allows easy installation in confined
spaces and production equipment. It offers both 0–5 V voltage output and 4–20 mA current output, enabling
seamless integration with PLCs, industrial controllers, and monitoring systems. With a high response frequency of up
to 13 kHz, the sensor can accurately capture rapid movements and high-speed production events.
Product Applications
Automotive and Mechanical Manufacturing: Used for bottom dead center detection in ultrasonic welding heads, and
high-frequency vibration monitoring of eccentricity and rotational state of shaft components in engine or transmission
systems.
Metalworking: Detecting workpiece thickness changes and amplitude during precision machining processes such as
stamping and cutting, and confirming the precise positioning of metal targets on high-speed production lines.
Semiconductor and Electronics Manufacturing: Performing online measurement of extremely small gaps (Gap), and
measuring the height and parallelism of integrated circuit components.
