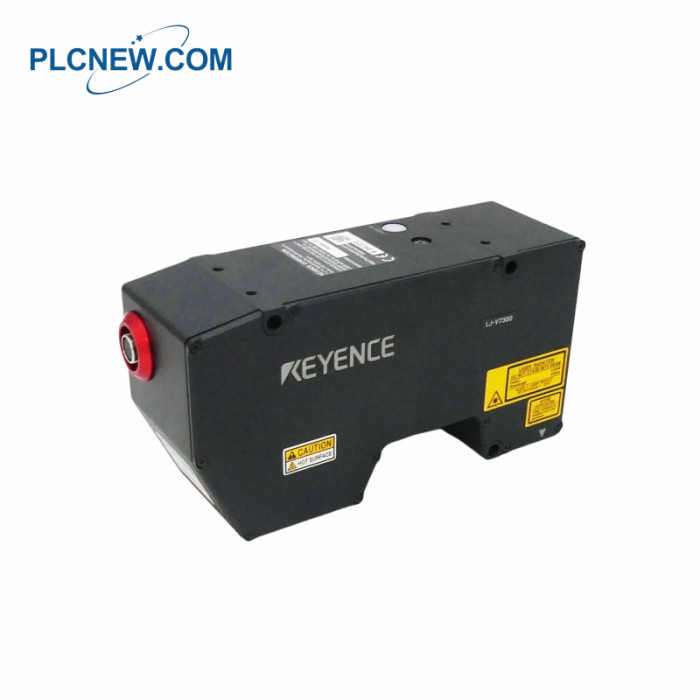

KEYENCE LJ-V7300 Laser Scanner
Specifications
|
Model |
LJ-V7300 |
|
Reference Distance |
300 mm (11.81 in) |
|
Z-axis Measurement Range |
±145 mm (Full Scale total: 290 mm) |
|
Light Source |
Blue Semiconductor Laser |
|
Wavelength |
405 nm (Visible Beam) |
|
Laser Class |
Class 2 |
|
Laser Output Power |
4.8 mW |
|
Spot Size @ Reference Distance |
Approx. 240 μm × 610 μm |
|
Z-axis Repeatability |
5 μm |
|
X-axis Repeatability |
60 μm |
|
Z-axis Linearity |
±0.05% ~ ±0.15% F.S. |
|
Profile Data Interval |
300 μm |
|
Operating Temperature |
0°C ~ +45°C |
|
Relative Humidity |
≤85% RH, non-condensing |
|
Vibration Resistance |
10–57 Hz, double amplitude 1.5 mm |
|
Shock Resistance |
15 G, duration 6 ms |
The KEYENCE LJ-V7300 is a high-performance 2D/3D laser profile sensor engineered for precision measurement,
inspection, and dimensional analysis in industrial environments. Utilizing advanced blue semiconductor laser technology
(405 nm) and diffuse reflection measurement, the sensor delivers exceptional accuracy and stability when measuring
complex surfaces, edges, profiles, and height variations.
With a 300 mm reference distance and a wide ±145 mm measurement range, the LJ-V7300 is capable of capturing
detailed profile data across large inspection areas while maintaining a repeatability of up to 5 μm on the Z-axis. The
sensor's high-speed sampling capability of 16 μs allows it to perform real-time measurements on fast-moving production
lines, making it ideal for automated quality control applications.
Product Applications
Weld bead inspection
Battery manufacturing
Semiconductor inspection
Robotic guidance systems
Automotive production lines
Electronic component verification
