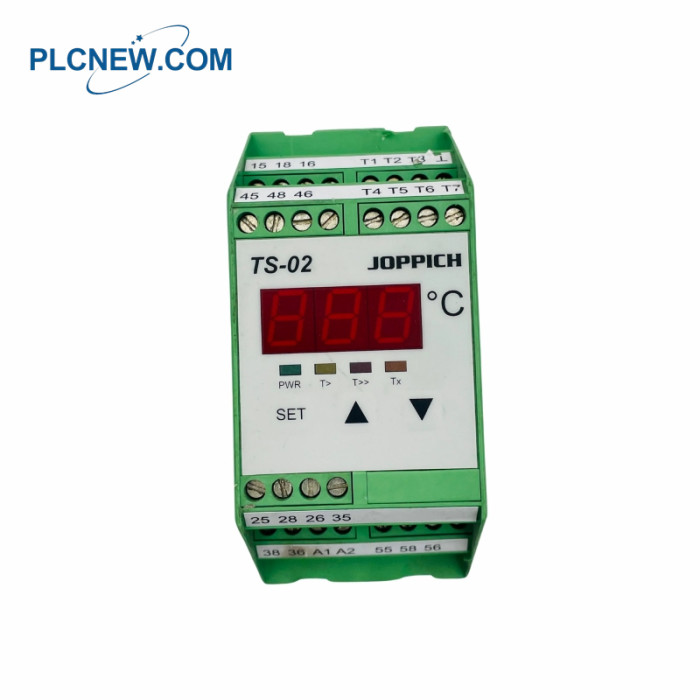

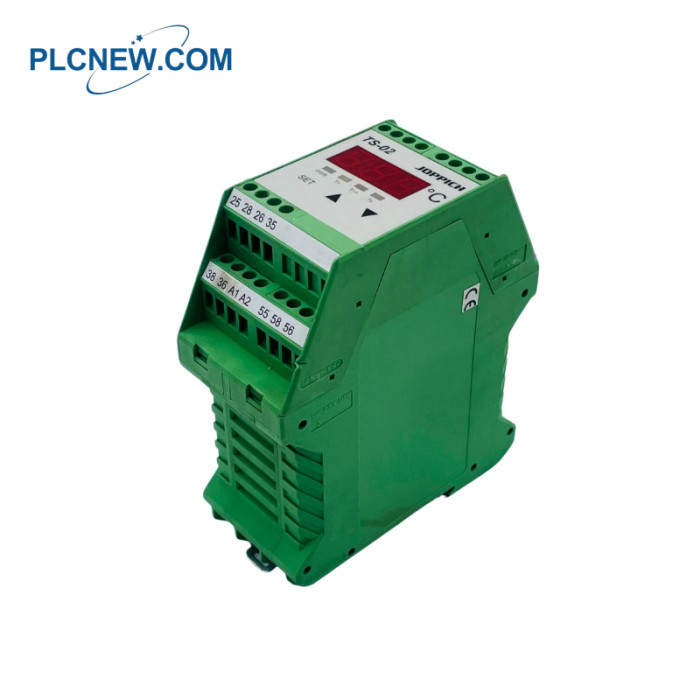

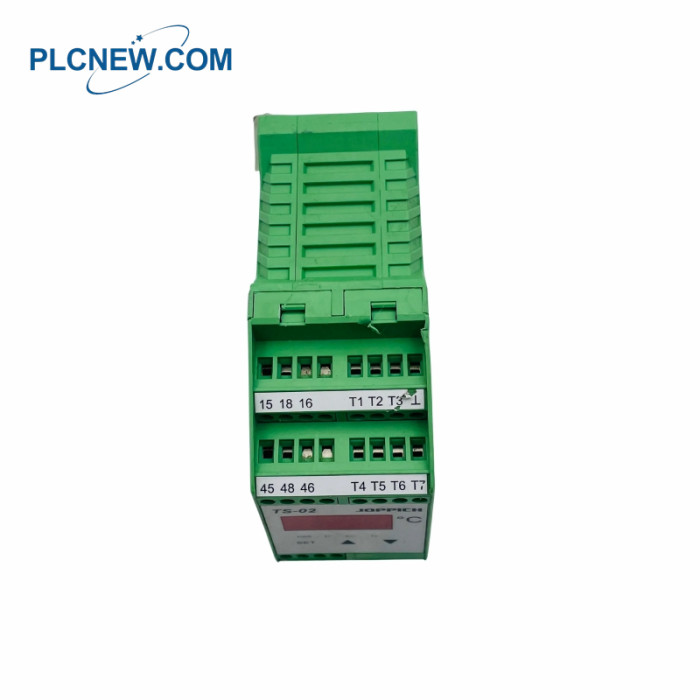

JOPPICH TS-02 Temperature Monitoring Unit
Specifications
|
Manufacturer |
JOPPICH |
|
Product Model |
TS-02 |
|
Power Supply |
DC 24-270V±10%；AC 40-270V±10%，50-60Hz |
|
Power Consumption |
＜6 VA / ＜6 W |
|
Switching Accuracy |
2℃ |
|
Display Range |
0~200℃，resolution 1℃ |
|
Display Accuracy |
±2℃±1 digit |
|
PT100 Setting Range |
20~200℃ |
|
Ambient Temperature |
-10℃~+50℃ |
The TS-02 temperature monitoring unit is used to monitor the temperature of equipment bymeans of PTC thermistors
in accordance with DIN 44081/82 or DIN VDE 0660 Part 303. Thetemperature is also monitored permanently via
PT100 element.Attached is an example of temperature monitoring of a transformer used for energydistribution in
the field of medium-voltage and high-voltage systems.
The user is informed of the temperature via a 3-digit 7-segment display. The user is further onnotified of the
corresponding temperature and the state of the TS-02 via four LEDs in thefront panel. Four relays are related to
the different measuring circuits. The significance of theindividual measuring circuits and the LEDs can be found in the
following sections.
Product Applications
Power generation industry
Petrochemical industry
Manufacturing industry
