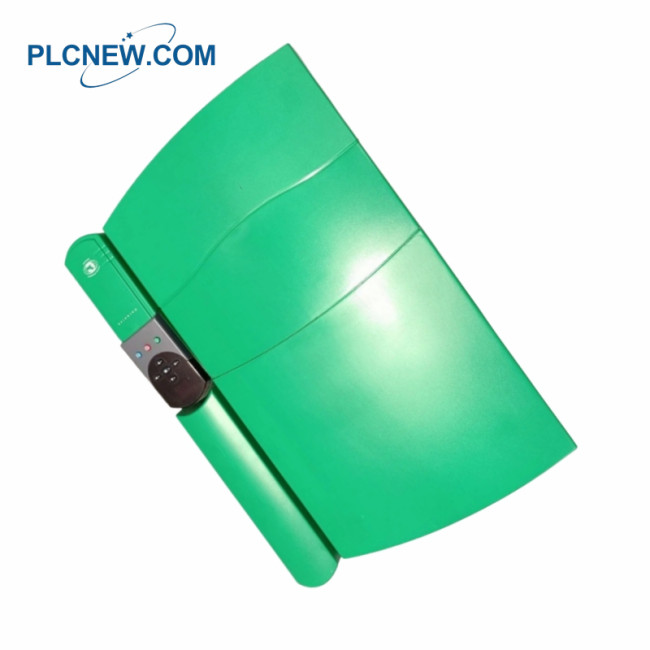

Control Techniques UNI1404 AC drive

Control Techniques UNI1404 AC drive

Control Techniques UNI1404 Specification

Manufacturer: Control Techniques
Product Line: Unidrive
Part Number: UNI1404
Weight: 9.00 lbs (4.08 kg)
Description: Universal Variable Speed AC Drive
Voltage Class: 400 V
Voltage Range: 380 to 480 VAC ±10%
Nominal Power Rating: 3 HP
Output Current: 5.6 A
Typical Input Current: 8.2 A
Model Size Class: Size 1
Operating Modes: Open Loop V/f, Open Loop Vector, Closed Loop Vector, Servo, Regen
Minimum Temperature at Power-Up: –10°C
Ambient Operating Temperature: 0 to 50 °C
Ambient Storage Temperature: –40 to 50 °C
Humidity: 95% RH (no condensation)

Control Techniques UNI1404 Description

The UNI1404 by Control Techniques is a universal variable speed AC drive crafted for diverse motor control requirements.

It can function in conditions starting from a minimum of -10°C at power-up, with operational capabilities extending to

an ambient temperature range of 0 to 50 °C. The storage temperature specifications are broad, allowing for conditions

as low as -40 °C and as high as 50 °C without compromising safety or functionality.
In terms of specifications, this drive is rated to handle a voltage class of 400V with a range encompassing 380 to

480 VAC ±10%. The nominal power output is rated at 2.2 kW or 3 HP, supporting significant loads while maintaining

efficiency. The device’s output current is rated at 5.6A, with a typical input current of 8.2A.

Frequently Asked Questions

Q1: What is the UNI1404?
A: The UNI1404 is a Universal Variable Speed AC Drive from Control Techniques’ Unidrive product line,

designed to control the speed, torque, and direction of AC motors in industrial applications.
Q2: What is the UNI1404 nominal power rating?
A: The drive is rated at 3 HP.
Q3: What is the UNI1404 output current?
A: The UNI1404 output current is 5.6 A.
Q4: What voltage class does it support?
A: The drive operates in the 400 V class, with a voltage range of 380–480 V AC ±10%.
