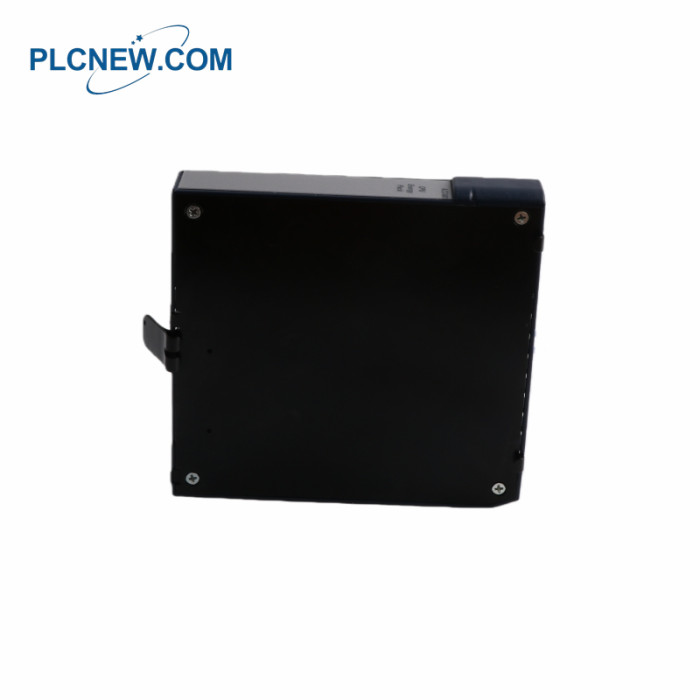

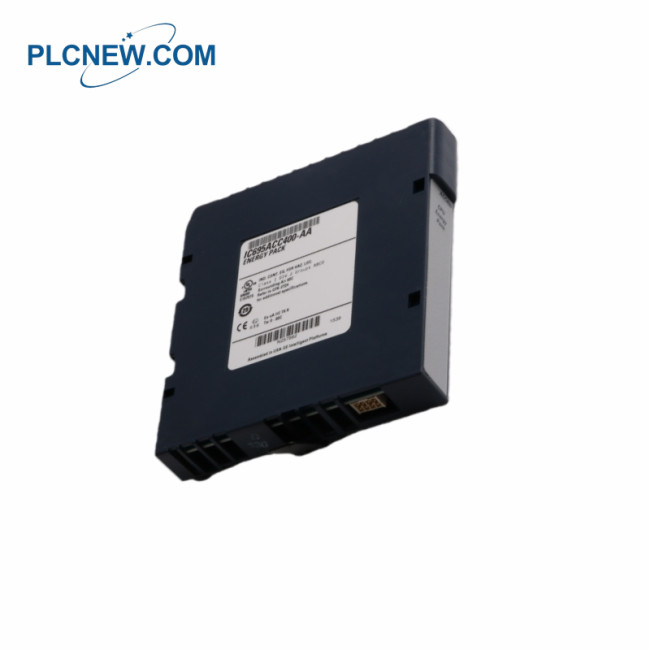

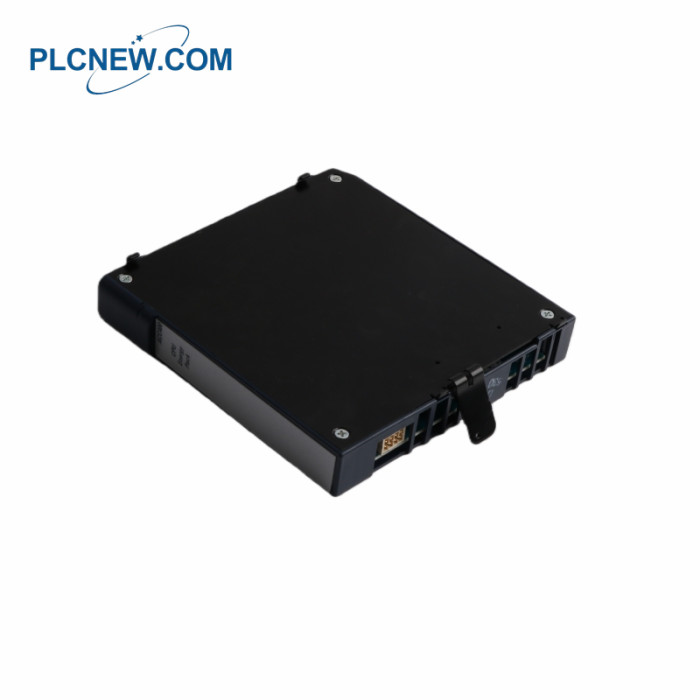

GE IC695ACC400 CPU Energy Pack

GE IC695ACC400 CPU Energy Pack

Product Introduction

Manufacturer: GE Fanuc Emerson
Product Type: CPU Energy Pack
Product Line: PACSystem RX3i
Series: RX3i
Part Number: IC695ACC400
Weight: 0.69 lbs (0.31 kg)
Voltage Rating (Cable): 300 VAC
Cable Length: 3 ft (0.91 m)
Cable Insulation: PVC
Conductors: Tinned copper
Operating Temperature: 0 to 60 °C (32 °F to 140 °F)

The IC695ACC400 is an energy pack module from the PACSystem RX3i platform, current under Emerson .  This module

is an optional module for controller modules such as CPE305 and CPE310.  It is mainly used to provide power during

power loss, sufficient enough to enable the CPU to transfer the contents of the Random Access Memory (RAM) to the

Non-volatile (Flash) memory.  This prevents unwanted erasure of the user program and data, increases system availability,

and reduces downtime.  This energy pack module is mounted to the side of the Power supply.  A power cable with

catalog number IC695CBL001 measuring 3 meters or 0.91 meters) connects the energy pack to the bottom of the CPU

where the energy pack connector is embedded.  This energy pack provides information regarding the charging status,

fault, low capacitance, and charged status.  It carries a certificate of compliance to the EU RoHS Directive 2002/95/EC.

The IC695CBL001 is a straight-through end-to-end cable The connector type of this cable is Samtec PID1-040D-K while

the cable itself is a 300 VAC rated, Tinned Copper conductor with PVC insulation.  The crimp contacts are 3.8 Amperes

Current rated at 95 Degree Celsius while the crimp housing is made of Nylon 66 or equivalent.  The IC695ACC400 has a

typical life expectancy of 10+ years when installed in an environment with an operating temperature of 0-50 Degree

Celsius.  At 60 Degree Celsius, the life expectancy drastically drops to 4.5 years only.  This energy pack physically

measures 140mm (5.5”) H x 124mm (4.87”) D x 25.4mm (1”) W.
