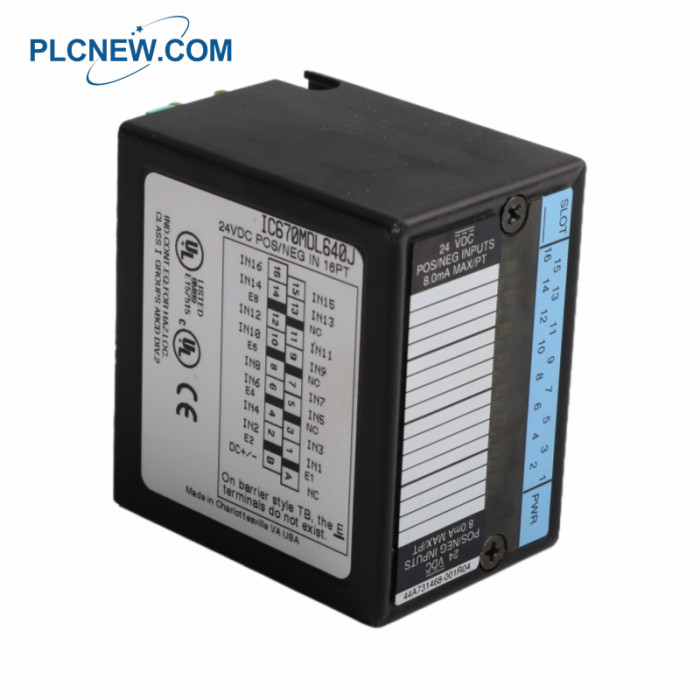

General Electric IC670MDL640 Discrete Input Module
The 24 VDC Positive/Negative Input Module (IC670MDL640) provides a single group of 16 discrete inputs, which may be driven by positive or negative.

General Electric IC670MDL640 Discrete Input Module

Characteristic
Rated Voltage: 24VDC
Input Voltage Range: 0±30 VDC
User Input Current: 7.5 mA per point @ 24 VDC
Isolation: user input to frame ground, group to group 250 VAC continuous, 1500 VAC for 1 minute. No isolation between individual points in a group.
Indicators: 1 LED per point shows individual point status PWR LED indicates field and backplane power are pres ent
Current drawn from Bus In terface Unit Power Supply: 75 mA, typical (all points on) 83 mA, maximum
Input Impedance: 3K typical
On state voltage: Positive: +15V to +30V
Negative: ±15V to ±30V
Off state voltage: Positive: 0 to +5V
Negative: 0 to ±5V
On state Current: 3.0mA to 8mA
Off state Current: 0mA to 1.5mA
On response time: 6ms typical, 10ms maximum
Off response time: 6ms typical, 10ms maximum
