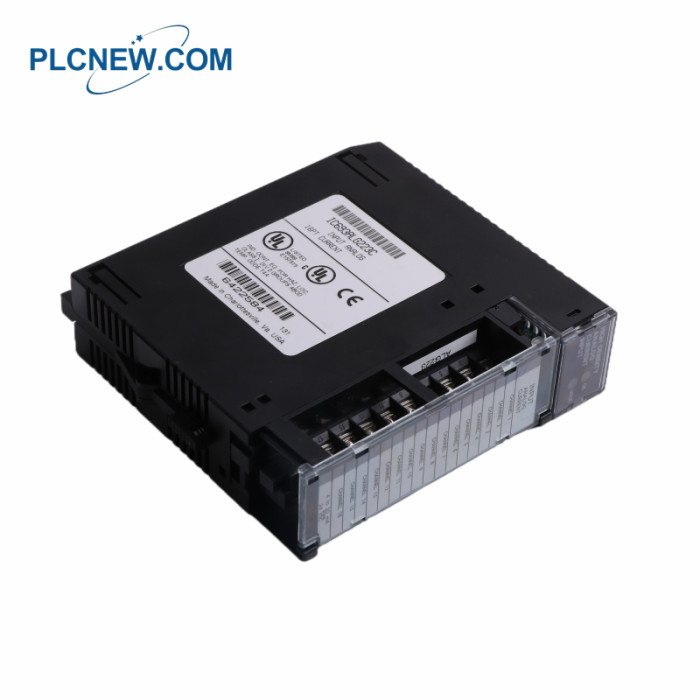

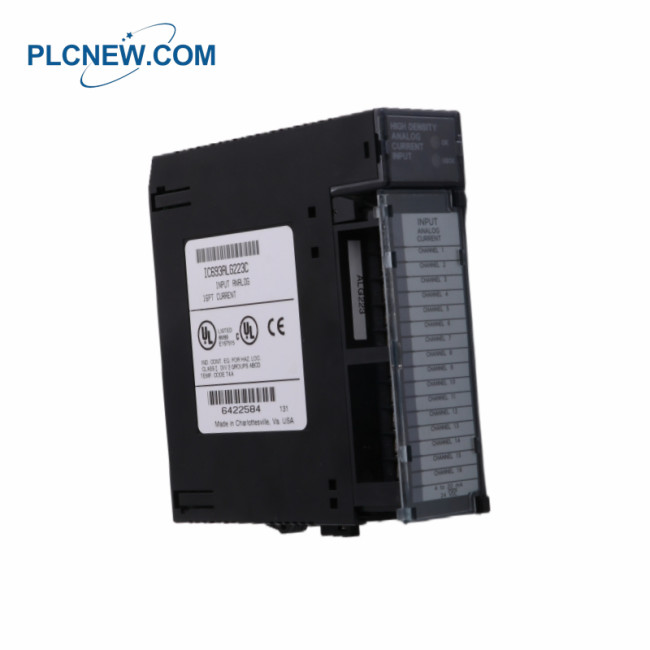

GE IC693ALG223 Analog Current Input 16 Channel Module
GE IC693ALG223 Specification
Part Number: IC693ALG223
Manufacturer: General Electric
Series: 90-30
Product Type: 16-Channel Analog Current Input Module
Range: 4-20 mA, 0-20 mA
Accuracy: 0.25% at 25 degree Celsius
External Power: 24 VDC
No of Channels: 16
Update Rate: 13 ms all channels
Resolution at 4-20 mA: 4 microamps
Resolution at 0-20 mA: 5 microamps
Input Impedance: 250 ohms
Isolation: 1500 volts
Internal Power Consumption: 120 mA
GE IC693ALG223 Description
IC693ALG223 is a 16-Channel Analog Current Input Module manufactured and designed by GE Mark II Series as part of the GE Speedtronic Gas Turbine Control Systems.The 16-Channel Analog Current Input module provides up to 16 single-ended input channels, each capable of converting an analog input signal to a digital value for use as required by your application. This module provides three input ranges: 4 to 20 mA 0 to 20 mA 4 to 20 mA Enhanced.
The default range is 4 to 20 mA with user data scaled so that 4 mA corresponds to a count of 0 and 20 mA corresponds to a count of 32000. The other ranges are selected by changing the configuration parameters using the IC641 configurator software or the Hand-Held Programmer. The range can be configured so that the input range is 0 to 20 mA with user data scaled so that 0 mA corresponds to a count of 0 and 20 mA corresponds to a count of 32000. Full 12-bit resolution is available over the 4 to 20 and 0 to 20 mA ranges. A 4 to 20 mA Enhanced range can also be selected. When this range is selected, 0 mA corresponds to a count of –8000, 4 mA corresponds to a count of 0 (zero) and 20 mA corresponds to a count of +32000.
