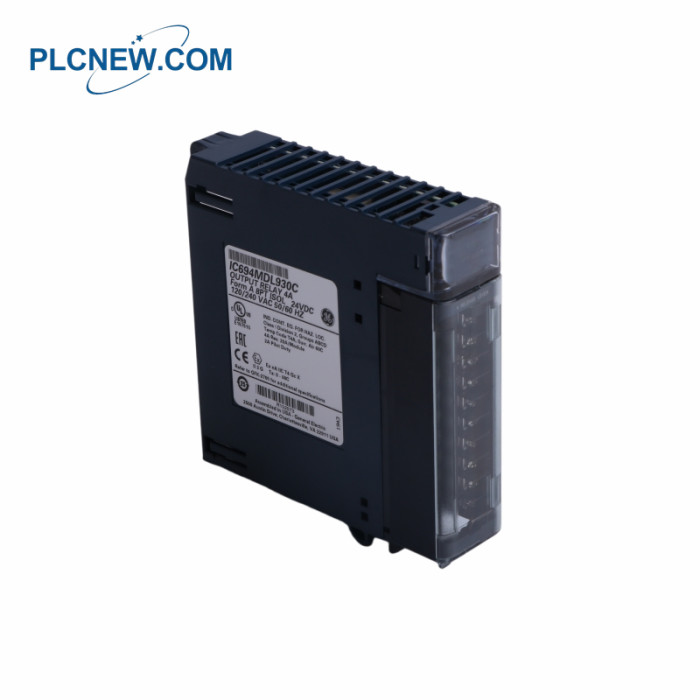

GE IC694MDL930 Output Module

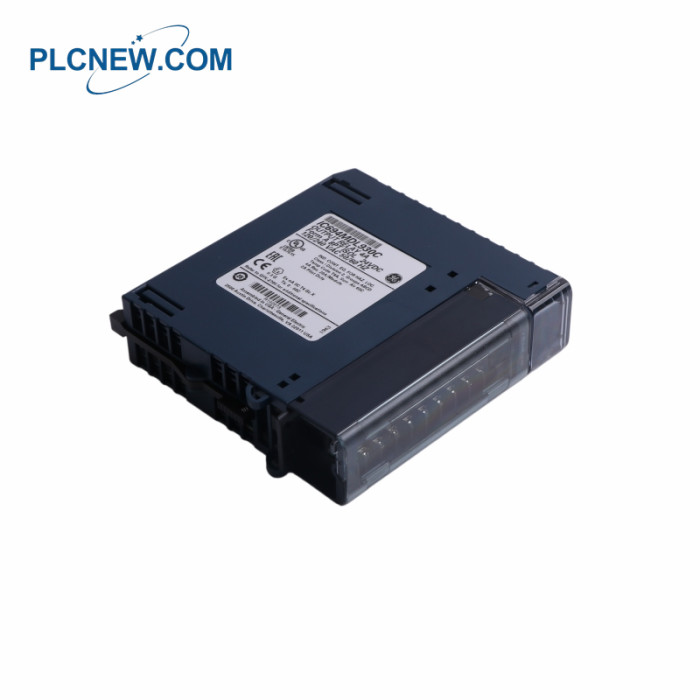

GE IC694MDL930 Output Module

Details of the module

Manufacturer: GE Fanuc
Product Line: RX3i PacSystem
Series: PACSystem RX3i
Part Number: IC694MDL930
Weight: 0.88 lbs (0.40 kg)
Product Description: Relay Output Module
Output Contact Form: Form A (Normally Open, N.O.)
Contact Form: Normally Open (N.O.) Form A contacts
Operating Voltage: 5 to 30 Volts DC or 5 to 250 Volts AC
Output Voltage Range: 5–250 VAC / 5–30 VDC
Nominal Output Voltage: 24 VDC; 120/240 VAC
Switching Current: 4.0 Amps per point
Minimum Output Current: 10 mA per point
Minimum Load: 10 mA
Max. Backplane Draw: 6.0 mA
LED Indicators: 32 Individually-Numbered LEDs
Response Time: 15 ms

The IC694MDL930 is part of the PACSystem RX3i mid-rangeProgrammable Controller (PAC) platform. This

module is specifically a relay output module featuring Eight (8) individually isolated Normally Open (N.O.) or

Form A contact outputs. Each output contact comes with a separate common and dry-contact in nature, allowing

different voltage types and levels to be wired to this module specifically, 5-30 VDC (24 nominal) and 5-250VAC

(120/240VAC nominal). Each output channel has current capacity of 4 Amperes per output when used with resistive

loads and 2 Amperes with pilot duty devices. The maximum load current that the module can withstand is 30 Amperes

for UL installations and varies according to ambient temperature. Conversely, the minimum load that the module

can accommodate is 10 mA. The output channels of the module have typical response time of 15 ms for both On and

Off switching while the module has maximum backplane current draw of 6mA with all outputs on from the 5 VDC bus

on backplane and 70mA with all outputs energized from relay 24VDC bus on backplane. This module also supports

installation to a Series 90-30 baseplate. It can function as a local output module, mounted along the Central Processing

Unit (CPU) rack or to an expansion, remote ofr distributed I/O station along with the appropriate communication adapter.

It is classified as a high-voltage module and comes with Eight (8) Status LED indicators for depicting the energization

state of each output channel. This module does not come with channel protection such as fuse or RC snubber circuit.

Frequently asked questions：
1.What is an IC694MDL930?
The IC694MDL930 is an 8-Point, 4 Amp, Isolated Relay, Output module from the GE Fanuc RX3i Series.
2.Does the IC694MDL930 come with individually isolated output channels?
Yes. Output channels are individually isolated channels.
3.What is the operating voltage range of the IC694MDL930 ?
The IC694MDL930 output contacts can be wired to 0-30 VDC and 0-250 VAC source voltage.
4.How many relay output channels does the IC694MDL930 have?
The IC694MDL930 has Eight (8) isolated relay channels.
5.Does the IC694MDL930 supports installation to as series 90-30 rack?
Yes. The IC694MDL930 can be installed to a series 90-30 baseplate from the RX3i baseplate.
