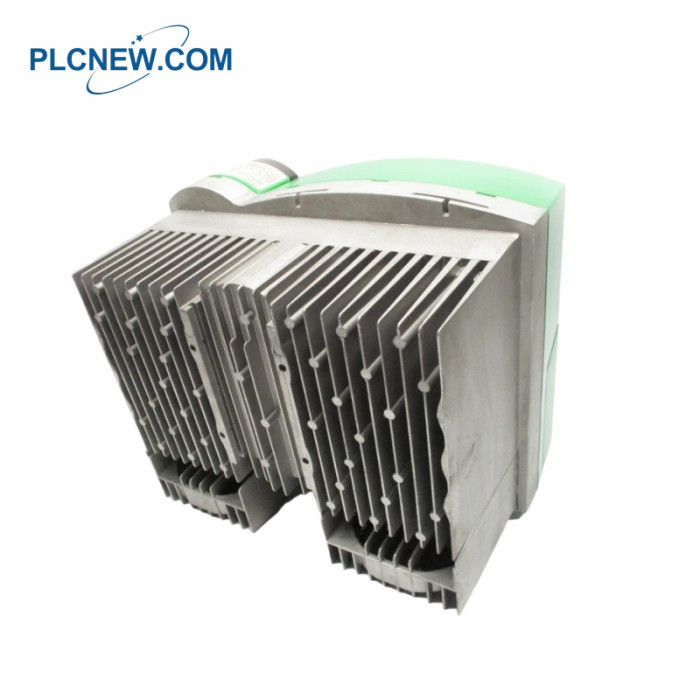

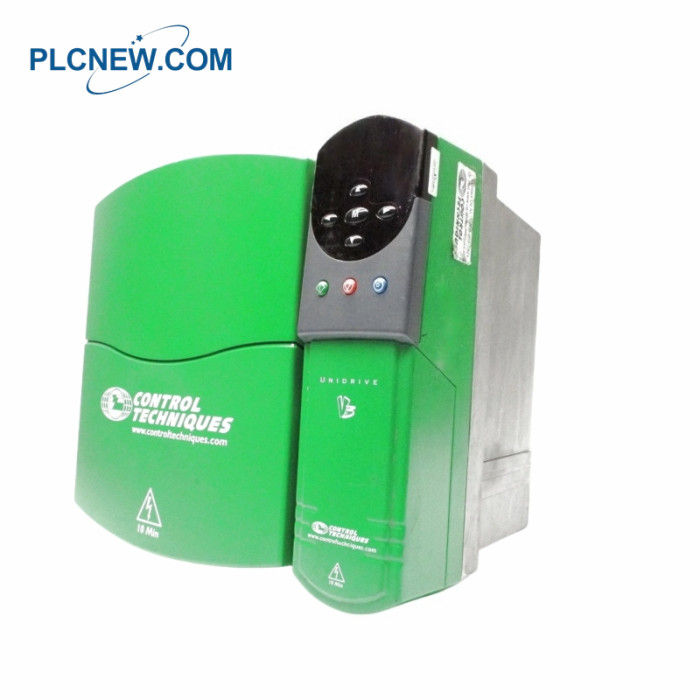

Control Techniques UNI3405 Advanced AC drive

Control Techniques UNI3405 Advanced AC drive

Control Techniques UNI3405 Specification

Manufacturer: Control Techniques
Product Line: Unidrive
Part Number: UNI3405
Weight: 65.00 lbs (29.48 kg)
Name: Universal Variable Speed AC Drive
Nominal Power Rating (kW): 37 kW
Nominal Power Rating (HP): 50 HP
Output Current: 70 A
Typical Input Current: 66 A
Operating Modes: Open Loop V/f, Open Loop Vector, Closed Loop Vector, Servo, Regen
Ambient Operating Temperature: 0 to 50 °C
Minimum Temperature at Power-Up: –10 °C
Humidity: 95% RH (no condensation)
Ambient Storage Temperature: -40 to 50 °C
Model Size Class: Size 3
Voltage Class: 400 V
Voltage Range: 380 to 480 VAC ±10%

Control Techniques UNI3405  Description

The Control Techniques UNI3405 functions as a universal variable speed AC drive. This model delivers robust performance

with a nominal power rating of 37 kW or 50 HP. It can produce an output current of 70A while drawing a typical input

current of 66A. Designed for a wide array of tasks, the drive allows operation in several modes: Open Loop V/f, Open

Loop Vector, Closed Loop Vector, Servo, and Regen.
In terms of dimensions, the unit weighs 22 kg (49 lbs) and is categorized as a Size 3 model. It operates efficiently

within an ambient temperature range of 0 to 50 °C. For initial power-up, it can function at temperatures as low

as -10 °C. The drive is also built to withstand environments with up to 95% relative humidity, provided there's

no condensation.

Frequently Asked Questions

Q1: What is the UNI3405?
A: The UNI3405 is an advanced AC drive from the Control Techniques Unidrive series, designed to provide precise

speed and torque control for medium- to high-power industrial motors.
Q2: What is the UNI3405 nominal power rating of the drive?
A: The UNI3405 drive is rated at 50 HP.
Q3: What is the output current?
A: The UNI3405 output current is 70 A, suitable for heavy-load applications.
