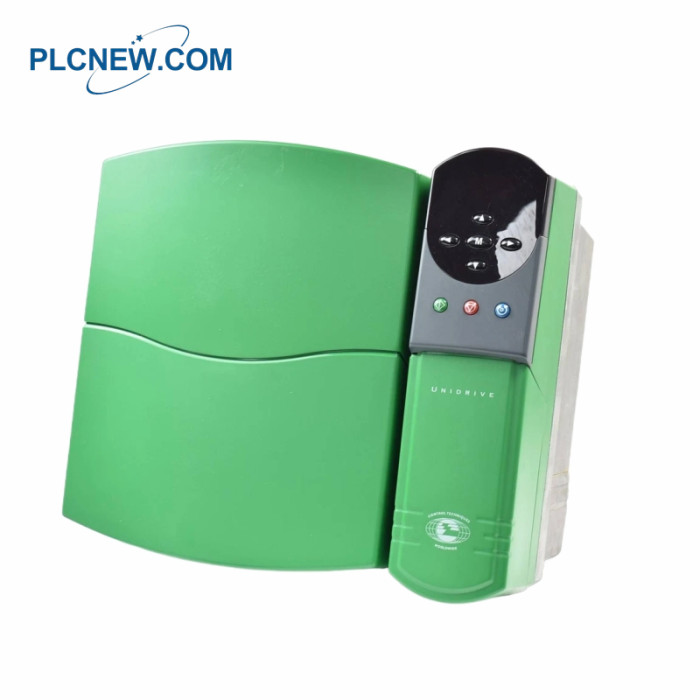

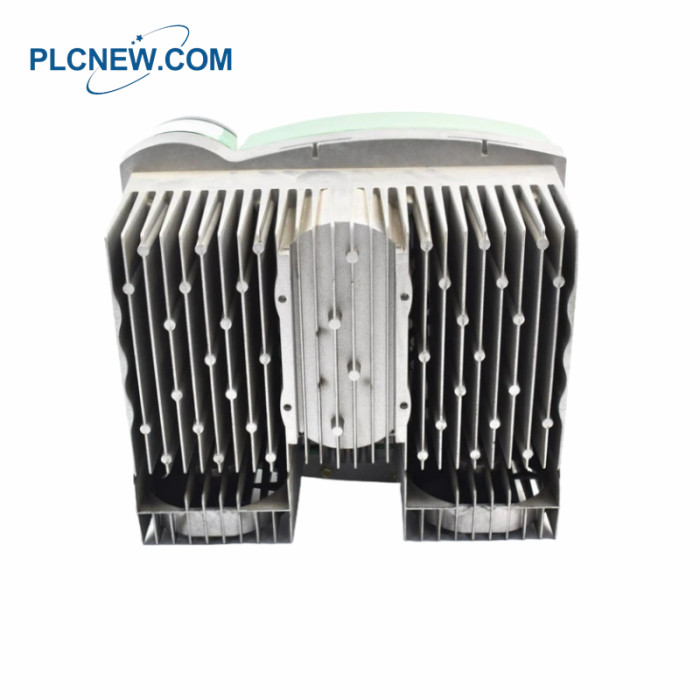

Control Techniques UNI3403 AC Drives

Control Techniques UNI3403 AC Drives

Control Techniques UNI3403 Specification

Manufacturer: Control Techniques
Product Line: Unidrive
Part Number: UNI3403
Weight: 56.50 lbs (25.63 kg)
Module: AC Variable Frequency Drive
Input Voltage: 380 to 480 VAC
Output Power: 40 HP (Normal Duty)
Output Current: 56 A (Normal Duty)
Enclosure Rating: IP20
Control Modes: Open/Closed Loop, V/Hz, Servo, Regenerative
Feedback Options: Incremental & Absolute Encoder
I/O Options: Configurable Digital & Analog I/O
Communication Options: Optional Modules

Control Techniques UNI3403 Description

The Control Techniques UNI3403 is an advanced AC variable frequency drive tailored for efficient motor control

across various applications. Operating with an input voltage range of 380 to 480 VAC, this module delivers a normal

duty output of 40 horsepower and supports an output current of 56 Amps. Its design allows for significant

operational flexibility, accommodating different control modes such as open loop, closed loop, V/Hz, servo, and regenerative.

Users can configure the drive to meet specific performance requirements and take advantage of the feedback options

 that include both incremental and absolute encoders. Additionally, the UNI3403 boasts flexible input/output capabilities

via configurable digital and analog I/O options that can be tailored to diverse tasks. The IP20-rated enclosure

ensures adequate protection for indoor applications while maintaining an overall weight of 25.7 kilograms (56.57 lbs).

Frequently Asked Questions

Q1: What is the UNI3403?
A: The UNI3403 is an AC drive from Control Techniques’ Unidrive series, designed for precise speed and

torque control of medium-power industrial motors.
Q2: What is the UNI3403 nominal power rating?
A: The drive is rated at 40 HP (Normal Duty).
Q3: What is the UNI3403 output current?
A: The output current is 56 A for normal-duty operation.
Q4: What is the UNI3403  input voltage range?
A: It operates on 380–480 VAC.
