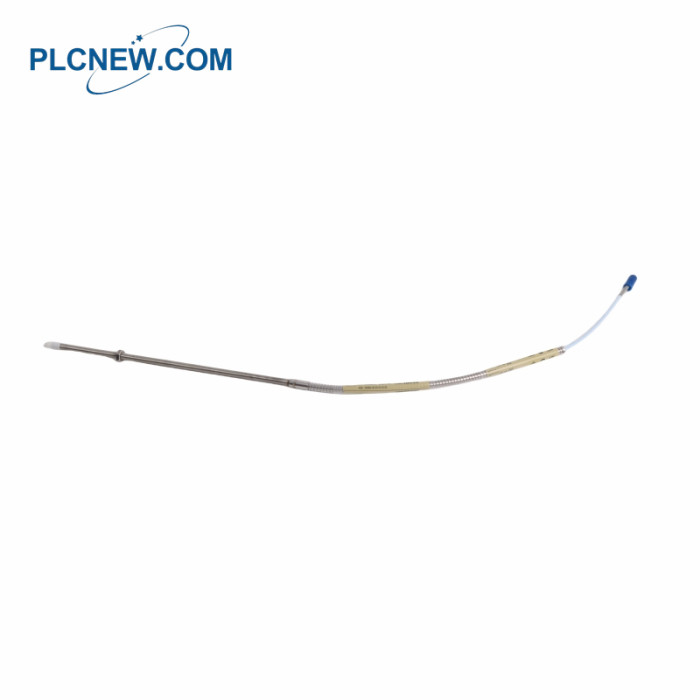

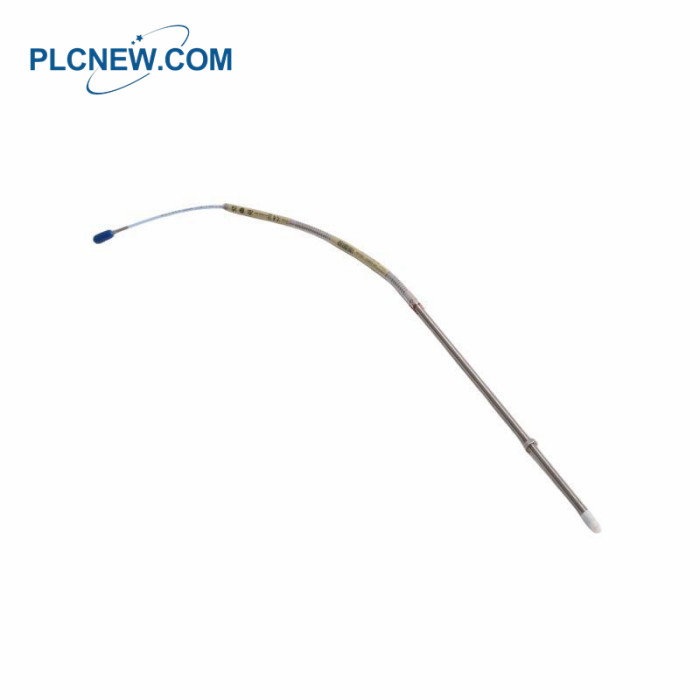

Bently Nevada 330902-00-15-10-02-05 Proximity Probes Cable

Bently Nevada 330902-00-15-10-02-05 Proximity Probes Cable

Bently Nevada 330902-00-15-10-02-05 Specification

Product Series: 3300 XL 8 mm
Model Number: 330902-00-15-10-02-05
Sensing Tip Diameter: 8 mm (0.315 in)
Case Length: 15 mm (0.59 in)
Cable Length: 10 meters (32.8 ft) integral
Thread Type: 3/8-24 UNF
Connector Type: Standard straight miniature coaxial connector
Tip Material: PEEK (Polyether ether ketone)
Housing Material: Stainless steel
Operating Temperature: –35°C to +177°C (–31°F to +350°F)

Bently Nevada 330902-00-15-10-02-05 Description

The Bently Nevada 330902-00-15-10-02-05 is a proximity probe with an integrated cable assembly, part of the reliable

3300 XL 8 mm series designed for non-contact vibration and position monitoring in critical rotating machinery. This

probe is specifically configured for high-accuracy displacement measurements, enabling reliable condition monitoring

in demanding industrial environments such as power plants, refineries, and manufacturing facilities.
This model includes a 15 mm case length, a 10-meter integral coaxial cable, and a 3/8-24 UNF threaded body with a

standard straight connector. When paired with a Bently Nevada Proximitor® sensor and extension cable, it forms a

complete proximity transducer system. It is widely used in shaft vibration, axial thrust, and phase reference applications.
