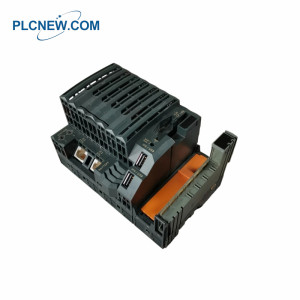

B&R X20CP1486 Central Processing Unit
Specifications
Manufacturer
B&R
Product Number
X20CP1486
Input Voltage
24 VDC -15% / +20%
Input Current
Max. 2.2 A
Nominal Output Voltage
24 VDC
Permissible Contact Load
10 A
Remanent Variables
Max. 256 kB
Shortest Task Class Cycle Time
200 µs
Typical Instruction Cycle Time
0.0034 µs
Line Length (Segment)
Max. 100 m between 2 stations
Transfer Rate
10/100 Mbit/s
Horizontal Mounting Temperature
0 to 55 °C, fanless: 0 to 45 °C
Vertical Mounting Temperature
0 to 55 °C, fanless not permitted
Dimensions (W×H×D)
150 mm × 99 mm × 85 mm
Intel Celeron 650 Performance with additional I/O processor
Ethernet, POWERLINK and USB onboard
1 slot for modular interface expansion
CompactFlash as removable application memory
Fan can be exchanged from the outside, tool-free
Extremely compact
The X20CP1486 is a high-performance CPU for the X20 System. This CPU can be used anywhere from high-end
applications in machine manufacturing to demanding tasks in process control.
Ethernet and USB are onboard. In addition, the CPU has a POWERLINK connection for real-time communication.
The only differences from the X20CP3486 are that the X20CP1486 only has one slot for interface modules and a smaller
width.
Product Applications
Power and metallurgy: Monitoring and controlling production processes.
Transportation and municipal engineering: Automated control of infrastructure.
Petroleum, chemical, and cement: Small process control stations in harsh industrial environments.
