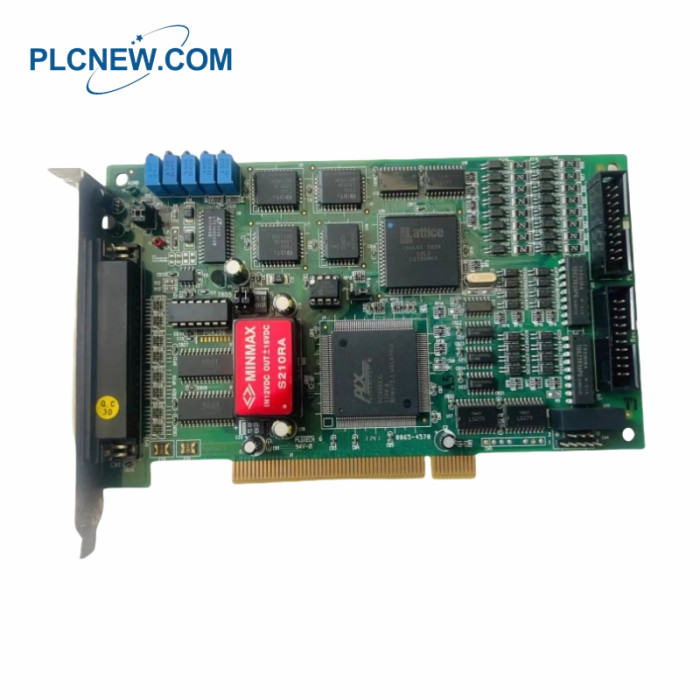

ADLINK PCI-9114A-DG Multi-Function DAQ Card
Product Details
Model: PCI-9114A-DG
Form Factor: PCI bus interface
A/D Resolution: 12-bit
Sampling Rate: Up to 250 kS/s (single-channel)
Analog Input Channels: 32 single-ended or 16 differential
Analog Input Range: ±5 V, ±10 V
Bus Compatibility: 5V PCI (32-bit)
Operating System Support: Windows 10/8/7, Linux
Driver & SDK Support: LabVIEW®, MATLAB®, Visual C++®, Visual Basic®
Power Consumption: +5V @ < 1 A
Operating Temperature: 0 °C to 50 °C
Storage Temperature: -20 °C to 70 °C
Humidity: 5% to 90%, non-condensing
ADLINK PCI-9114A-DG series are 32-CH, 16-bit, high resolution multi-function DAQ Cards. The PCI-9114 device
features flexible configurations on analog input. The devices are divided into 2 kinds: normal gain version and
high gain version. Both versions provide 4 programmable input ranges for bipolar and unipolar inputs. The A/D on
the PCI-9114DG device features a sampling rate of 100 kS/s with resolution at 16 bits, while PCI-9114A-DG/HG
device features a sampling rate of up to 250kS/s with resolution at 16 bits. The device supports automatic analog
input scanning, and offers a differential mode for 8-CH analog inputs and maximum noise elimination, as well as
single-ended modes for 16- CH analog inputs. The PCI-9114 also features 1-CH 16-bit general purpose timer/counter,
16-CH TTL isolated digital inputs and 16-CH TTL isolated digital outputs. ADLINK PCI-9114A-DG delivers cost-effective
and reliable data acquisition capabilities and is ideal for a broad variety of applications.
