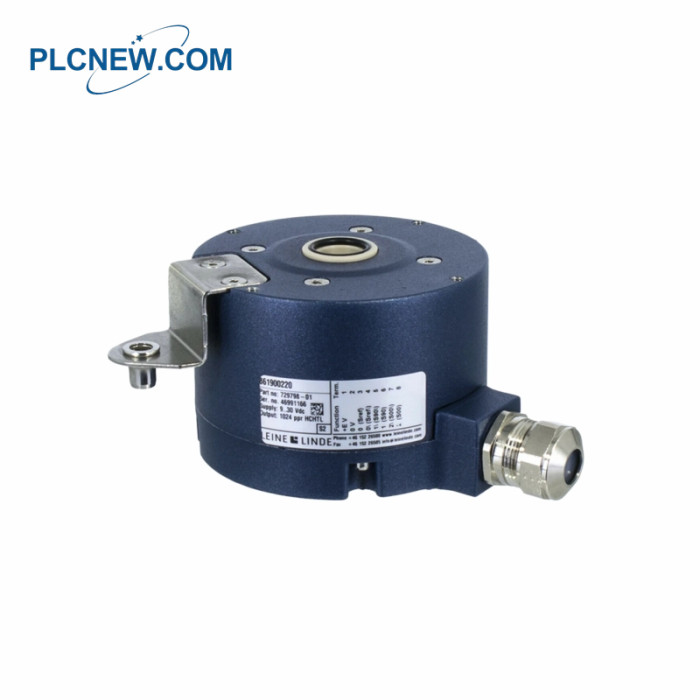

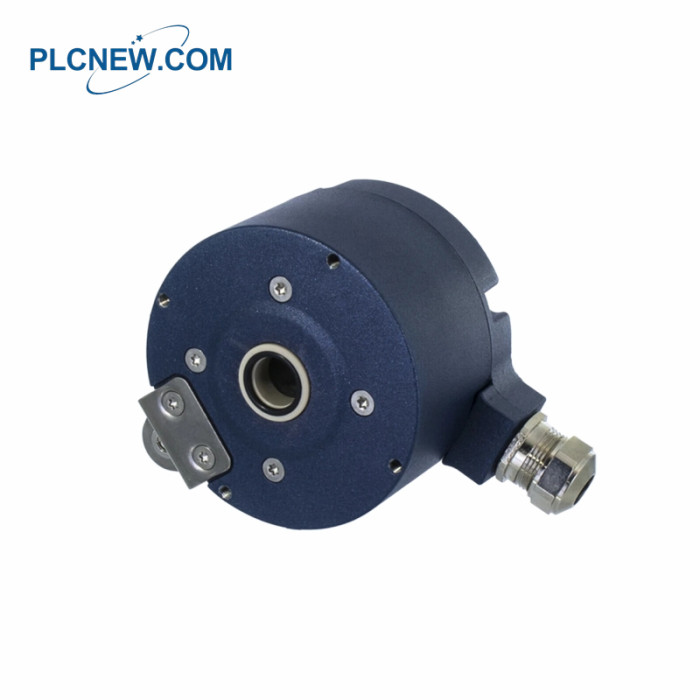

LEINE LINDE 729798-01 Rotary Encoder
Specifications
Part Number
729798-01
Series
XHI 861
Shaft Specification
016 mm blind hollow shaft
Resolution
1024 pulses per revolution (ppr)
Supply Voltage
9～30 VDC
Output Type
High Current HTL(HCHTL)
Signal Channels
6 Channel(S00,S00,S90,S90,Sref,Sref)
Cable Entry
Cable Gland (Radial direction)
Mount Flange
86-flange
Torque Arm
120° orientation
Operating Temperature
-20℃～+85℃
Vibration Resistance
≤20 g，55～2000 Hz（IEC 60068-2-64）
Shock Resistance
≤400 g，3.5 ms（IEC 60068-2-27）
Max Rotating Speed
6000 rpm
Max Incremental Output Load
±40 mA
Max Output Frequency
200 kHz
Max Cable Length
350 m @100 kHz
Phase Shift
90 ºel ± 25 ºel
729798-01 is a heavy-duty incremental hollow shaft encoder designed for demanding industrial applications requiring
precise speed and position feedback. The encoder features a rugged mechanical design with excellent resistance to
vibration, shock, dust, moisture, and harsh operating conditions, making it ideal for steel mills, mining equipment,
cranes, conveyors, marine systems, and other heavy industries.
The encoder utilizes a Ø16 mm blind hollow shaft and delivers a resolution of 1024 pulses per revolution (PPR). It
operates from a wide 9–30 VDC power supply and provides High Current HTL (HCHTL) output signals for reliable
long-distance transmission and superior noise immunity.
Product Applications
Iron and Steel & Metallurgical Industry: Widely used in rolling mills, continuous casting machines, and other
equipment, providing precise speed and position feedback. It can withstand extreme temperature changes and
severe mechanical vibrations.
Paper Making & Heavy Machinery: Due to its support for hollow shaft installation and high protection level, it is
suitable for paper machine drive roller conveyors and various large-scale conveyor systems.
Crane & Port Machinery: Used in cranes, winches, and port machinery for precise positioning and safety control of
hoisting and traveling mechanisms.
Mining & Heavy-Duty Motors: Capable of operating in dusty, high-impact environments such as ore mining and
material handling equipment.
