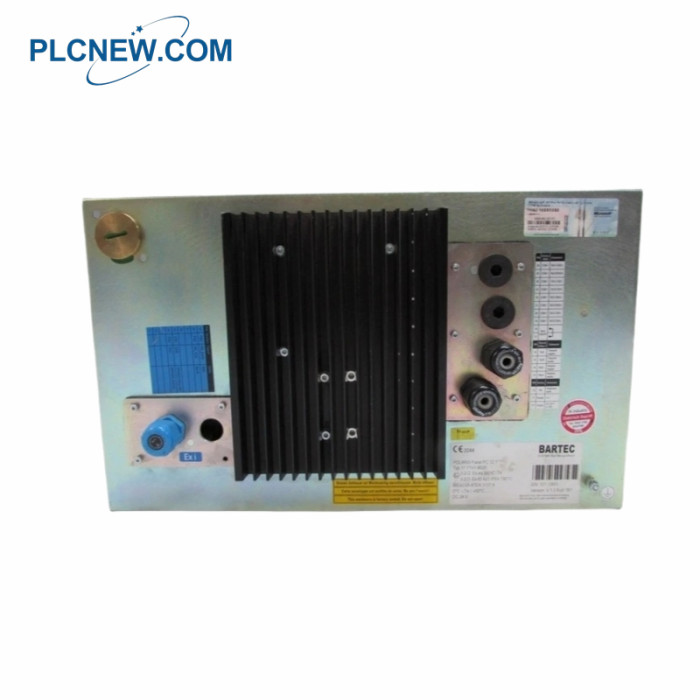

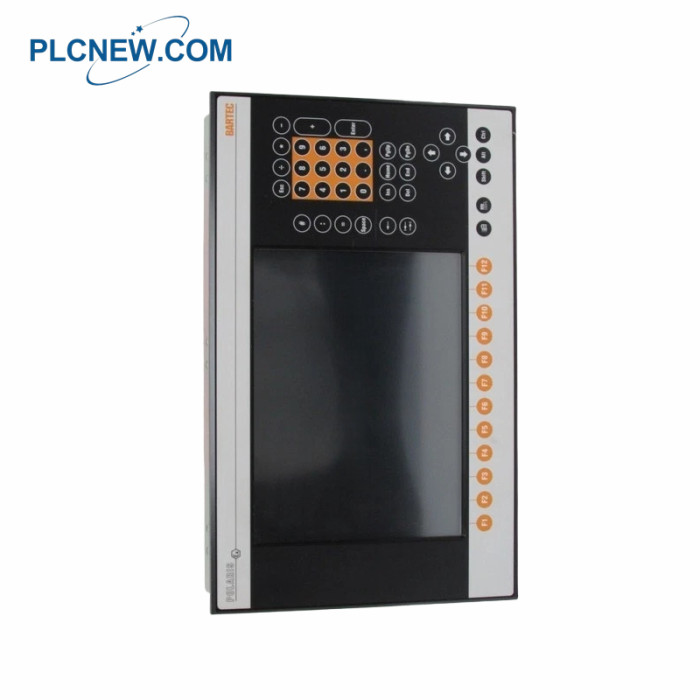

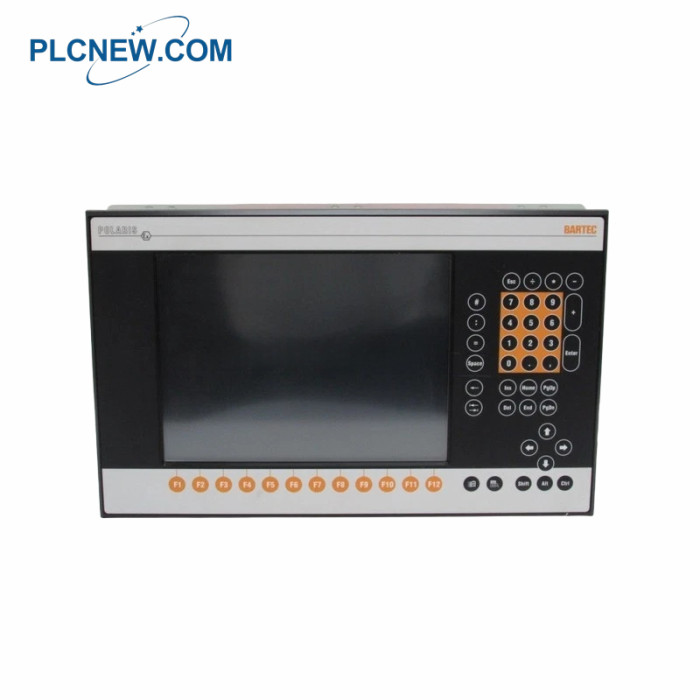

BARTEC POLARIS 17-71V1-8000U000 P1354D EX Touch Panel

BARTEC POLARIS 17-71V1-8000U000 P1354D EX Touch Panel

Product Parameters

The Ethernet interface can be used to connect individual computers or network devices, e. g. a printer, to an existing local network (LAN) (WLAN is also a possible option) or local networks can be set up completely wirelessly.  The wired electrical connections are realised via a terminal compartment of the “e” type of protection (increased safety). The state-of-the-art display technology guarantees an optimum contrast, even with large viewing angle. The Front-panel fitting assures easy installation.  An intrinsically safe USB interface is available for a USB Ex i memory stick. Intrinsically safe input devices can also be connected. The optional (intrinsically safe) touchscreen offers the optimum in operating comfort. Windows 7® Ultimate or Windows 10® IoT can be used as an operating system.

Power Supply: 24 V DC nominal (tolerance ±10%)
Power Consumption: Approx. 20–30 W
Operating System: Windows Embedded / industrial HMI software support
Interfaces: Ethernet, USB, RS232/RS485, and fieldbus compatibility
Memory: Sufficient RAM and flash storage for HMI applications
Operation: 0 °C ≤ Ta ≤ +50 °C (32 °F ≤ Ta ≤ +122 °F )
System solution with heating on request
Humidity Tolerance: 5% to 95% non-condensing
