ABB 3BHL000986P3012 5SDD2545L0001 IGCT Module

ABB 3BHL000986P3012 5SDD2545L0001 IGCT Module

Description

Device Type: Integrated Gate-Commutated Thyristor (IGCT)
Dimensions: 38*10*17cm
Weight: 1.38kg
Nominal Collector Current (Ic): ~2500 A (system-dependent)
Repetitive Peak Voltage (Vdrm/Vrrm): 4500 V
Gate Trigger Requirements: High-current gate pulse, typically 20–35 A for 5–10 µs
Turn-On Time: < 5 µs
Turn-Off Time: < 15 µs
Conduction Losses: Low voltage drop during steady-state operation (~1–1.5 V at rated current)
Thermal Resistance: Junction to case (RthJC) ~0.05 K/W
Maximum Junction Temperature (Tj max): 125–150 °C
Storage Temperature Range: –40 °C to +125 °C
Isolation Voltage: ≥ 2500 V RMS between gate and power terminals

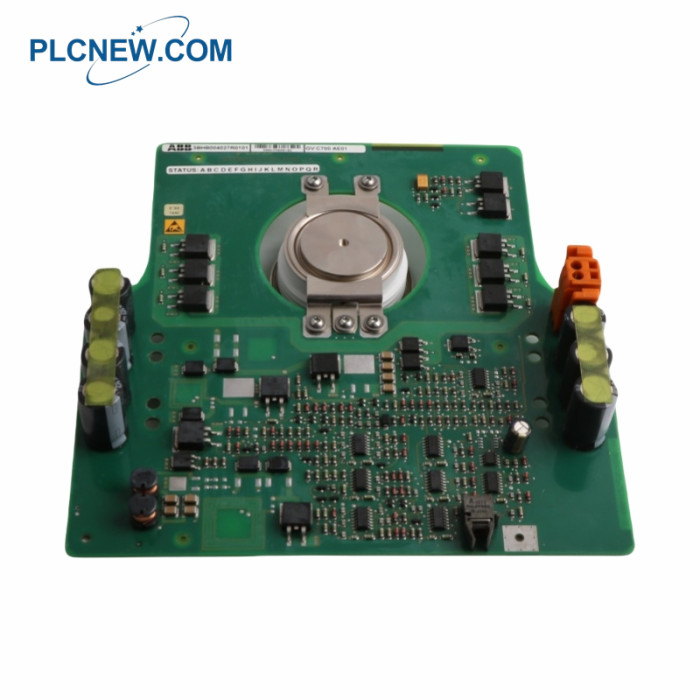

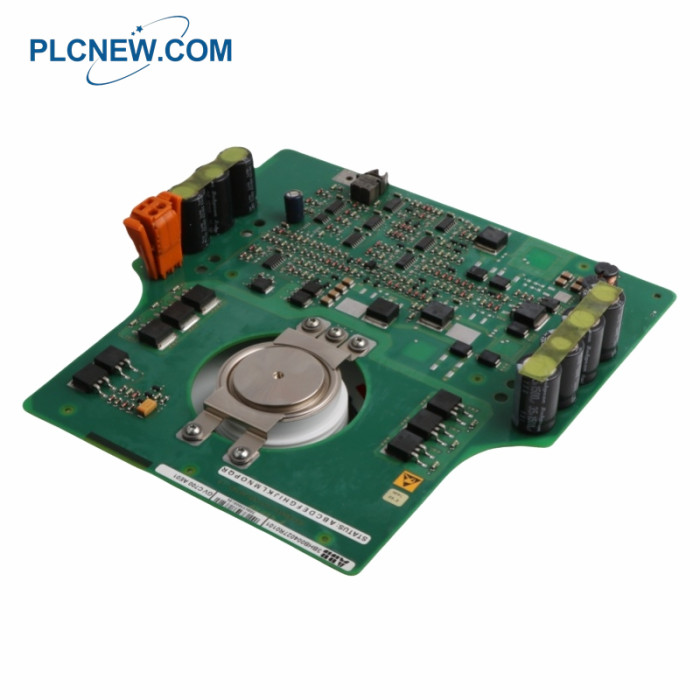

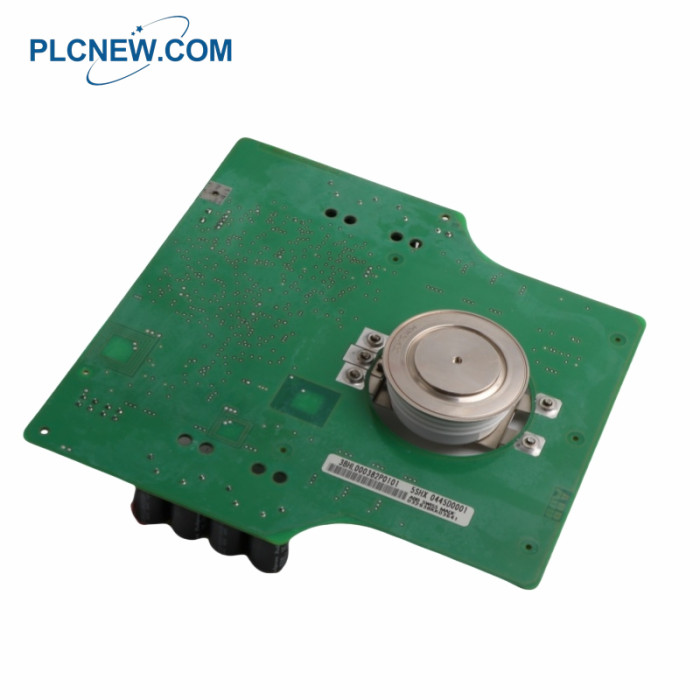

The ABB 3BHL000986P3012, also identified as 5SDD2545L0001, is a high-power Integrated Gate-Commutated Thyristor (IGCT) module designed for demanding industrial applications. Combining the high-current handling capability of conventional thyristors with fast switching performance similar to IGBTs, this module is ideal for medium- to high-voltage motor drives, industrial converters, and traction systems.
