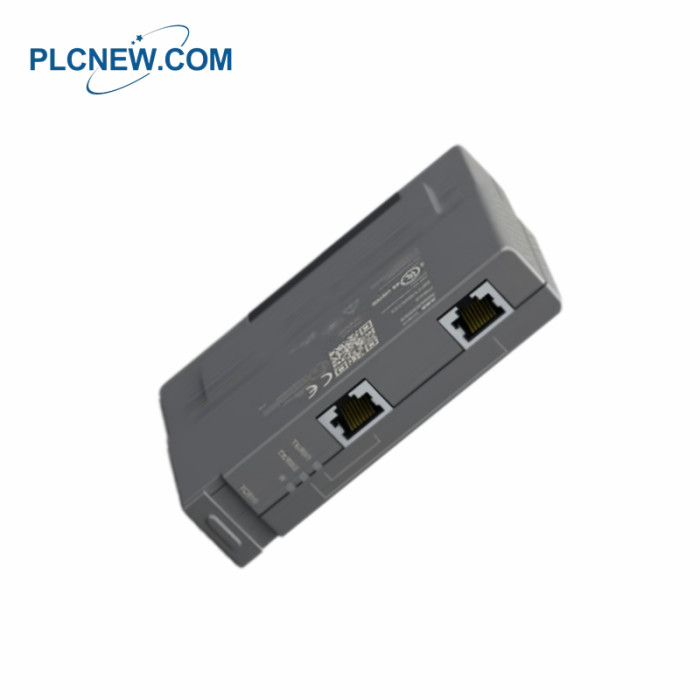

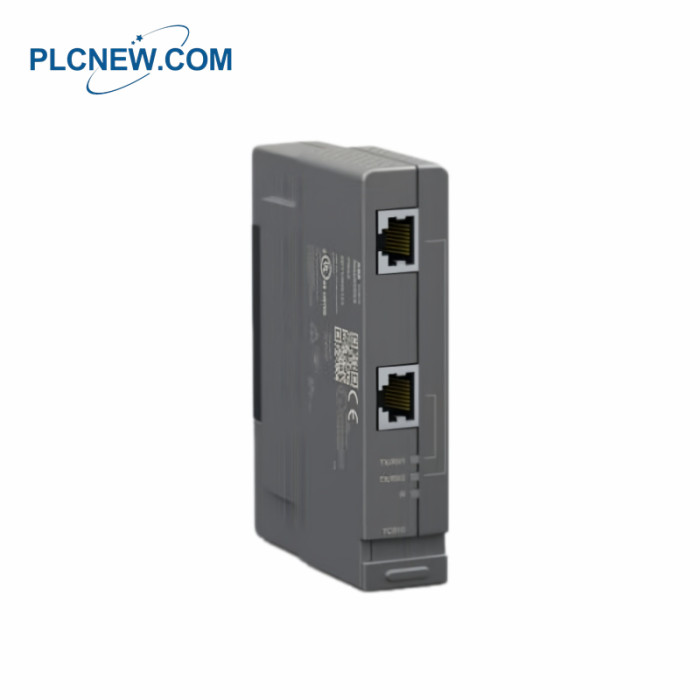

ABB TC810 3BSE076220R1 Ethernet Adapter
Specifications
|
Brand Name |
ABB |
|
Part Number |
TC810 3BSE076220R1 |
|
Mechanics |
Select I/O |
|
External Output Type |
100 Base-TX with RJ45 (8P8C) connector |
|
Number of External Ports |
2 |
|
Connecting Cable Type |
CAT 5, WG 22 or better |
|
Max. Cable Length |
100 m |
|
Power Dissipation |
0.8 W |
|
Typical 24 V Current Consumption |
60 mA |
|
Operating Temperature |
-40 °C (-40 °F) to +70 °C (158 °F) |
|
Storage Temperature |
-40 °C (-40 °F) to +85 °C (185 °F) |
|
Pollution Degree |
Pollution Degree 2 acc. to IEC 60664-1 |
|
Relative Humidity |
5–95 %, non-condensing |
|
Altitude |
-1000 to 5000 m (restrictions apply) |
|
Width |
25 mm |
|
Depth |
76.3 mm |
|
Height |
110 mm |
|
Weight (including base) |
105 g |
Select I/O is an Ethernet networked, single channel granular I/O system for the ABB Ability™ System 800xA platform.
Select I/O helps decouple project tasks, minimizes the impact of late changes, and supports standardization of I/O
cabinetry ensuring projects are delivered on time and under budget. A Signal Conditioning Module (SCM) performs
the necessary signal conditioning and powering of the connected field device for one I/O channel.
TC810 is an Ethernet Adapter for copper media with a built-in 2 port (RJ45) switch. For redundant configurations, two
Ethernet Adapters TC810s are required to be installed in the TU860 or TU865 Ethernet Field Communications Interface MTUs.
Product Applications
Oil & Gas: Integrated into DCS systems for safety data acquisition and remote I/O monitoring in high-temperature,
high-pressure, and hazardous explosion-proof areas.
Energy & Power Industry: Used in process control systems for power plants and substations, enabling millisecond-level
high-precision status monitoring and data transmission for critical equipment such as boilers and turbines.
Chemical & Pharmaceutical Industry: Processes large-scale instrumentation signals in complex chemical synthesis
and continuous production processes, ensuring absolute accuracy in formula control and batch tracking.
Water & Wastewater Treatment: Enables long-distance, distributed data acquisition and pump/valve control across vast
plant areas, ensuring uninterrupted system operation in humid or harsh climates.
Metallurgy & Heavy Industry: Adaptable to heavy industrial environments with high dust levels, strong
electromagnetic interference, and severe vibrations, ensuring stable and smooth operation of automated control
links in continuous casting machines, rolling mills, etc.
