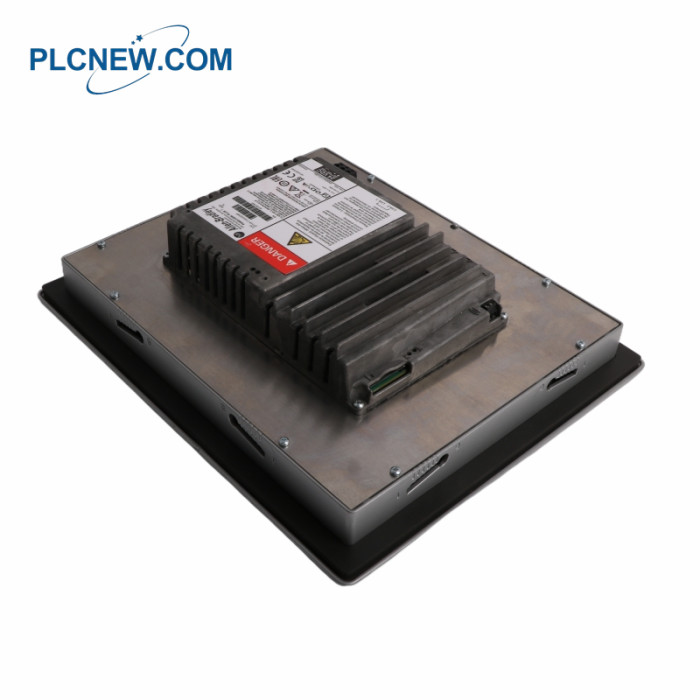

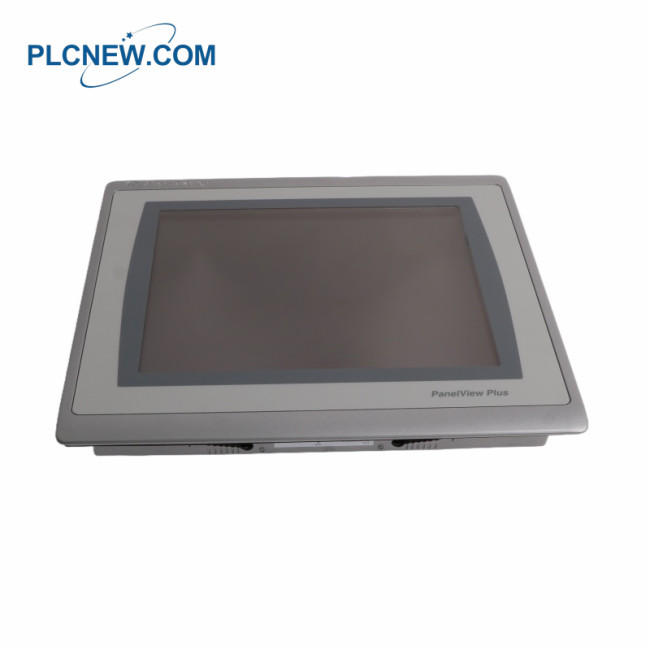

2711P-T10C22D9P Terminal panel
Product Details
Product Line: PanelView Plus 7
Part Number: 2711P-T10C22D9P
Product Family: PanelView Plus 7 Performance Graphic Terminals
Weight: 4.00 lbs (1.81 kg)
Display Size: 10.4 inches
Display Type: Color Active Matrix TFT LCD
Display Area: 211 x 158 mm (8.31 x 6.22 in)
Resolution: 800 × 600 SVGA, 18-bit
Backlight: CCFL, 50,000 hours minimum life
Operator Input: Touch
Touchscreen Type: Analog resistive touchscreen
Actuation Rating: 1 million presses
Operating Force: 100 grams
Application Memory: 512 MB RAM and 512 MB storage; User memory: 80 MB
Memory: 512 MB
Input Voltage Range: 18–30 VDC
Input Voltage: 24 VDC
This PanelView Plus 7 2711P-T10C22D9P is a touchscreen performance PanelView, used to input commands to a
network through its color TFT display with an 18-bit, 800 x 600 SVGA resolution. The white-light diode, solid state
LED backlight on this panelview has around 50,000 hours of life and CANNOT be replaced. It contains a single SD
card to allow for external storage which supports SD cards corresponding to the number 1784-SDx. It also has two
10/100 Base-T DLR Ethernet ports. In addition, it has a pair of Type A, high speed 2.0 USB ports and one high speed
2.0 device port. With 24 Volts of DC nominal supply voltage, this unit consumes at maximum 50 Watts of power and
supports (PELV) and (SELV) 24 Volt DC supplies. This unit weighs roughly 5.03 pounds (or 2.28 kilograms),
measuring approximately 9.92 x 11.69 x 2.74 inches (or 252 x 297 x 69.6 millimeters), with a 10.4-inch display screen.
A number of accessories can be purchased along with the 2711P-T10C22D9P, including a variety of protective overlays,
power terminal blocks, SD (Secure Digital) cards, and battery replacements, and it has several certifications including but
not limited to ATEX Zone 2, 22, CE (LVD), and the standard only EAC.
