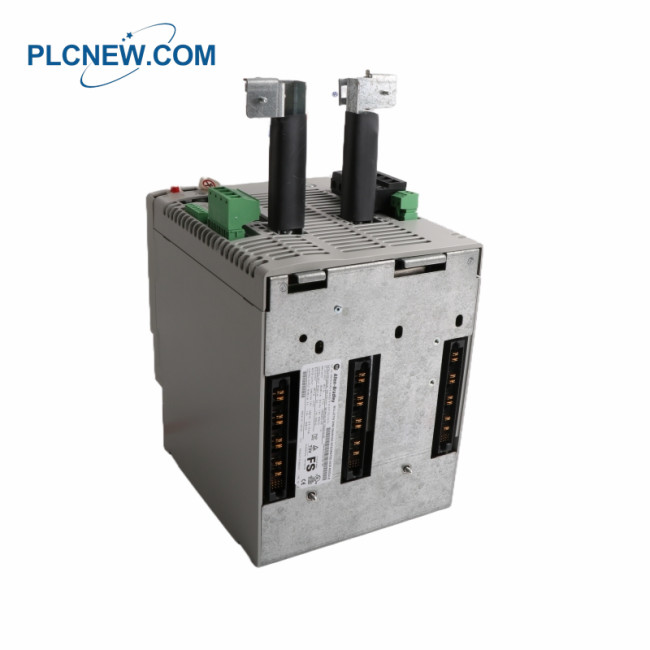

2094-BC04-M03-S Integrated Axis Power Modul

2094-BC04-M03-S Integrated Axis Power Modul

2094-BC04-M03-S Specification

Part Number / Catalog No.: 2094-BC04-M03-S
Operating Temperature: 32 to 122°F (0 to 50°C)
Power Dissipation: 94–255 W
Converter Section Output: 28 kW
Inverter Section Output Current: 30 A
Input Voltage Range: 400 / 460 VAC
Bandwidth:
Velocity Loop: 500 Hz
Current Loop: 1300 Hz
PWM Frequency: 4 kHz
Internal Shunt Continuous Power: 200 W
Internal Shunt Peak Power: 22.5 kW
Module Location: Leftmost of the Power Rail
AC Input Voltage: 324–528 V rms, 3-Phase (Nominal: 360–480 V)
AC Input Frequency: 47–63 Hz
AC Input Current (Nominal RMS): 44.0 A
AC Input Current (Max Inrush 0-Peak): 31.1 A
DC Input Voltage (Common Bus Follower): 458–747 V
DC Input Current (Common Bus Follower): 41.5 A
Internal Shunt Resistor: 28.75 Ω
Efficiency: 97%
Weight: 21.1 lbs (9.60 kg)

2094-BC04-M03-S Description

The 2094-BC04-M03-S is a module.   that is designed to function as an Integrated Axis Module for inverter.

This module has an output power rating of 53 Watts at 20% loading, 72 Watts at 40% loading, 93 Watts at 60%

loading, 116 Watts at 80% loading and 142 Watts at 100% loading.
This module has a converter and inverter section.   The converter section has an output rating of 28kW and 30

Ampere for inverter.   This module is also referred to as an AM power module.   It ships with a wiring plug connector

set for motor power (MP) and motor/resistive brake power (BC).   Connector kits Input and Output interfaces, safety,

and auxiliary feedback signals with catalog numbers 2090-K6CK-D44M and 2090-K6CK-D44S0 and motor feedback with

catalog number 2090-K6CK-D15M are not provided with this module.
