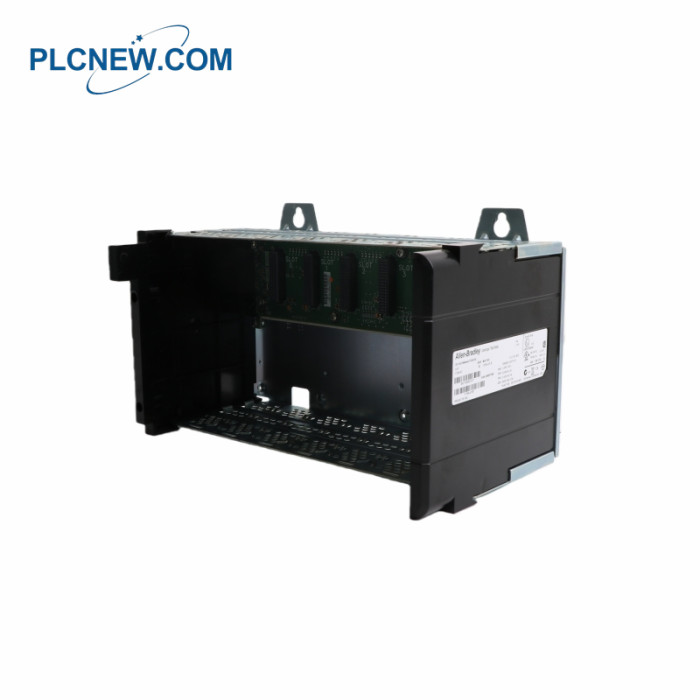

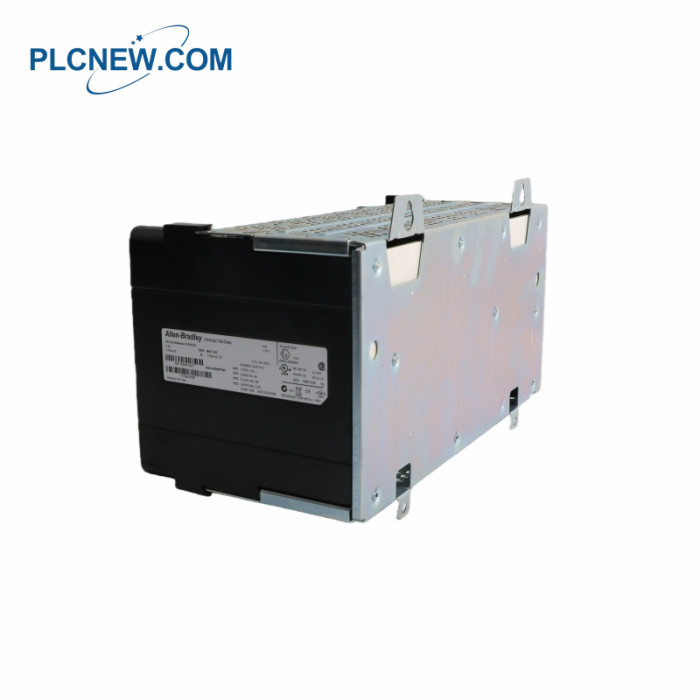

1756-A7 Slots Chassis
Details of the module
Part Number：1756-A7
Number of Slots：7 slots
Module Orientation：Horizontal
Mounting Type：Panel Mount
Number of Mounting Tabs：4
Enclosure Type：Open
Backplane Current @ 1.2 VDC：1.5 A (per chassis / per slot)
Backplane Current @ 3.3 VDC：4 A / 4 A
Backplane Current @ 5.1 VDC：15 A / 6 A
Backplane Current @ 24 VDC：2.8 A / 2.8 A
Backplane Current (5 VDC)：10 A
Backplane Current (24 VDC)：2.8 A
Power Dissipation (Max)：4.5 W
Operating Temperature (Series B)：0 °C to +60 °C
Operating Temperature (Series C)：–25 °C to +60 °C
Storage Temperature：–40 °C to +85 °C
Cabinet Size (Min, H×W×D)：50.8 × 60.9 × 20.3 cm
Weight：2.06 lbs (0.94 kg)
The 1756-A7 also hosts the mounting slot for the Power supply, located at the left most side of the chassis.
This chassis supports slim, standard and power supplies.
The 1756-A7 is mounted directly to the enclosure’s subpanel via the provided Four (4) mounting tabs. It has
physical dimensions of 50.8 x 60.9 x 20.3 cm (20 x 24 x 8 in.) and weighs approximately 1.10 kg (2.4 lb).
Depending on the type of power supply used, the overall dimension of the 17560A7 varies. This chassis is
also provided with a functional earth ground and protective earth ground terminals. Recommended wire type
and size for the functional earth is an 8.3 sq. mm (8 AWG) solid or stranded copper wire with insulation rating of
90 °C (194 °F) or greater while for protective earth terminal, appropriate wire size is 2.1 sq. mm (14 AWG) solid
or stranded copper wire with insulation rating of 90 °C (194 °F) or higher.
