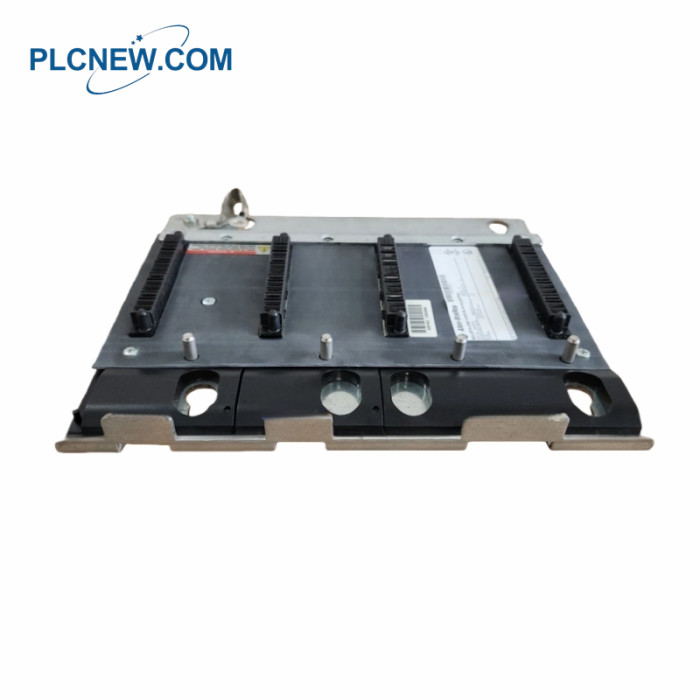

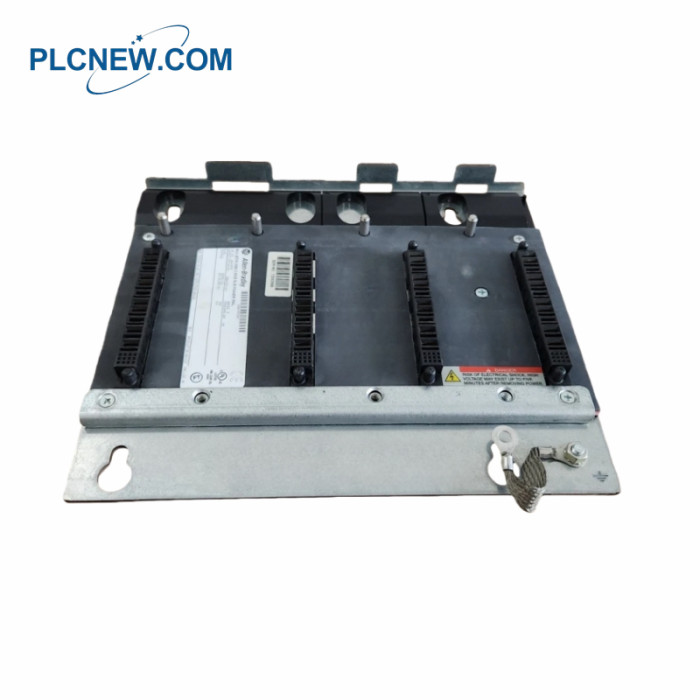

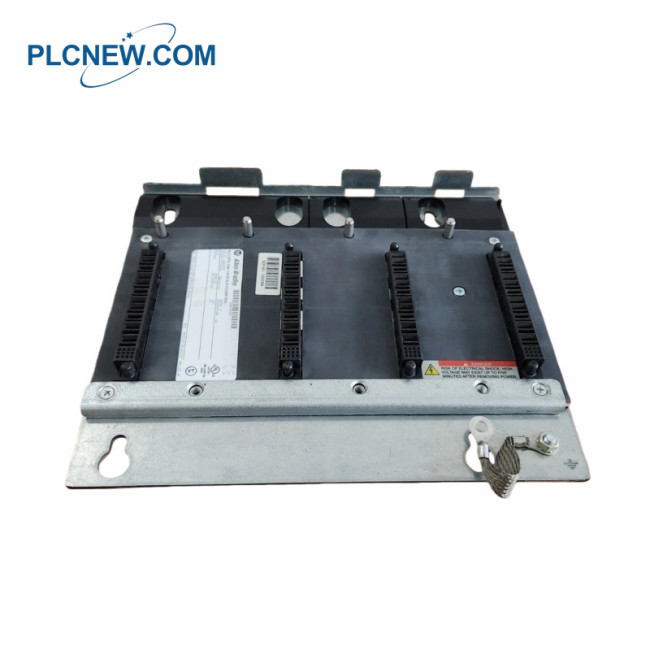

2094-PRS3 Power Rail
►Product Parameters
Category: Drives
Part Number: 2094-PRS3
Weight: 4.25 lbs (1.93 kg)
Applications: 230 or 460 Volt Drive Systems
Module Capacity: 1 IAM, 2 Additional
Number of Axes: 3-Axes
Compatible Voltage Class: 200 V / 400 V class drives
Compatible Drive Voltage: 230 VAC / 460 VAC
Bus Voltage: 325 VDC / 650 VDC
Peak Current: 70 Amperes
No. of Axis: 3-Axis
The 2094-PRS3 is a motion control system accessory module. This power rail is a 3-axis power rail that supports
the installation of a single bulletin 2094 Integrated Axis Module (IAM) and up to Two (2) additional drive modules
such as axis modules, shunt modules, and slot-filler modules. The left-most slot of the 2094-PRS3 and other power
rails is the converter slot which is intended for the installation of the IAM module. Other remaining slots are used by
the AM, IPIM, shunt module, and others. When installing modules to the power rail, it is recommended to install the
module with the highest current rating to the left-most side. Module current rating must be in decreasing order.
The 2094-PRS3 has an incoming bus voltage rating of 325 VDC / 650 VDC with a peak current of 70 Amperes.
