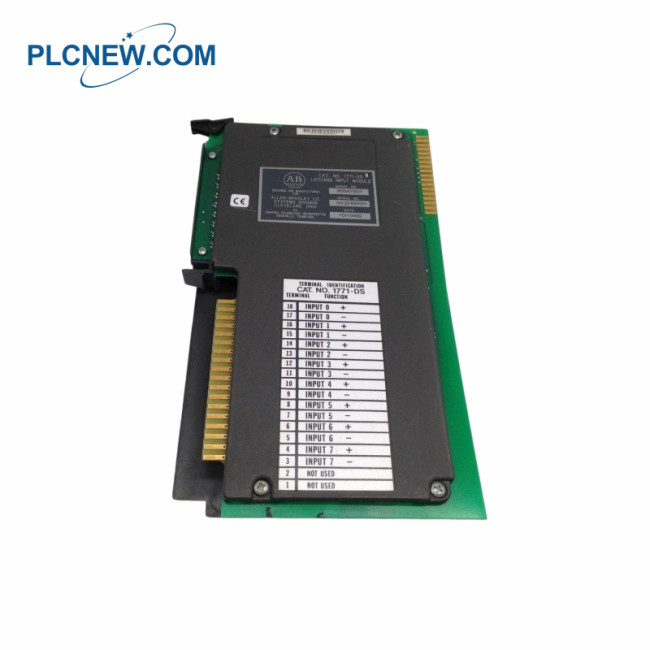

1771-DS Latching Input Module
Specifications
Part Number
1771-DS
Weight
1.06 lbs (0.48 kg)
Module Type
Latching Input Module
Number of Inputs
8 Digital Inputs
Input Voltage Range
10–27 Volts DC
Slots
1 Slot
Backplane Current
0.375 Amperes
Pulse Capture Time
50–9.999 Microseconds
The 1771-DS is a latching module with an input of 10-27V DC. It latches and detects pulses with a duration
of 0.1-5.0 ms. Using an input terminal, the module discovers pulses and puts a bit within a corresponding image
address table during the next I/O scan. The 1771-DS module responds to pulses by using an optical sensor which
has an isolated gate output and an isolated pulse output. This module’s input has two ways to operate. Unless
paired, this module operates independently, and when this module is paired, it either responds to a certain pulse
or it responds to the gate signal. The pulse that this module can capture is the minimum pulse width. With a pulse
capture time of 0.1ms, 0.5ms, 1.0ms, 2.5ms, or 5.0ms, you can select the pulses by measuring the duration of
some typical pulses. It is recommended that the usable capture time you select is the shortest in terms of using
the paired input. And in each pulse, the 1771-DS requires time to recover and this depends on the time that you
selected.
Product Applications
Manufacturing and Factory : For precise position monitoring in CNC machines, conveying systems, and material
handling.
Process Industry: In petrochemical, power plants, or water treatment plants, the 1771-DS series is used for
high-speed data acquisition tasks such as flow meters and rotational shaft speed monitoring.
Heavy Industry : For cement and steel production lines, which require highly reliable module control, the 1771-DS
series has strong anti-interference capabilities.
