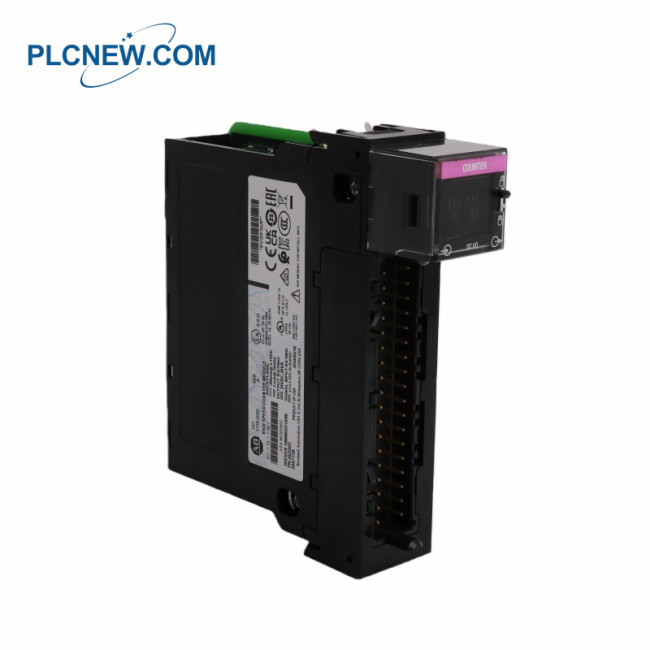

1756-HSC/B Counter module
►Product Parameters
Part Number: 1756-HSC/B
Weight: 0.50 lbs (0.23 kg)
Module Type: Counter Module
Location: Chassis (Any Slot)
Slot Width: 1
Inputs: 3 per counter
Outputs: 4-point
Backplane Current (5V): 300 milliamps
Backplane Current (24V): 3 milliamps
Power Dissipation (Max): 5.6 Watts at 60°C
The 1756-HSC/B is a counter module that is used to perform high-speed counting for industrial applications.
This 1756-HSC/B module has selectable modes such as the frequency mode, or the counter mode for processing
input signals. The 1756-HSC/B counter mode is set as the default mode which can update data every 2 milliseconds.
Users can change the storage of the count values because the 1756-HSC/B module uses the user-configured presets
to evaluate it against the count values. This gives the module a faster response time for activating outputs, compared
to when an evaluation is done in the controller. Preinstalled configuration tags are available with the 1756-HSC/B
module and these tags will decide whether the pulse that is counted will be an accumulated count, ranging from 1
to 16 million, or a positive or negative frequency, depending on the rotation’s direction.
