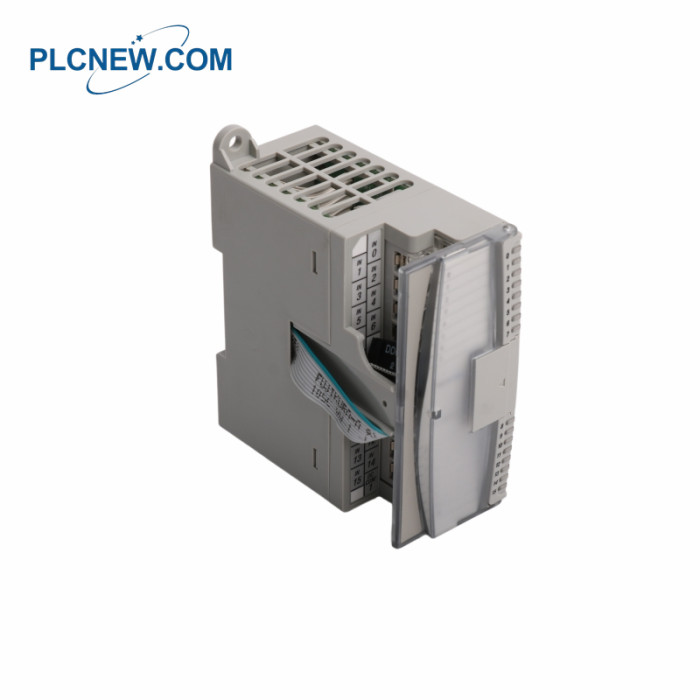

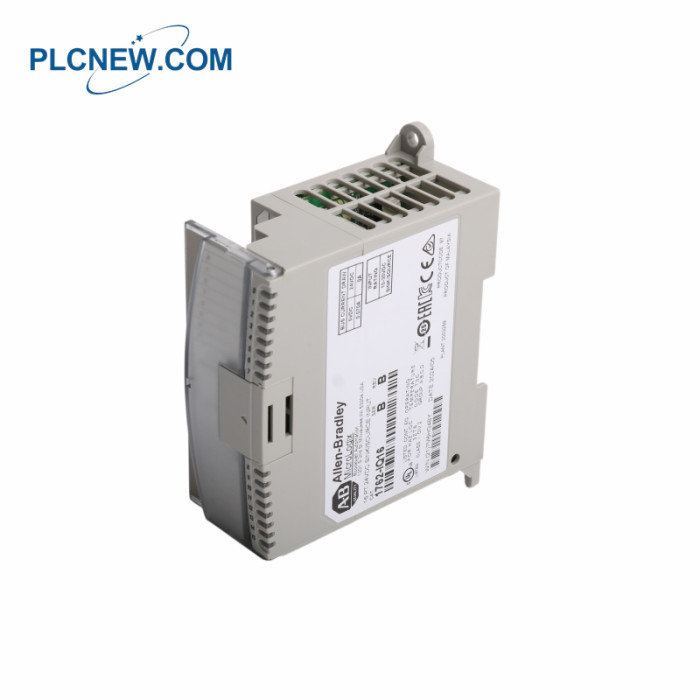

1762-IQ16 Discrete Input Module

1762-IQ16 Discrete Input Module

Details of the module

The 1762-IQ16 is a 16-point sink and source input module. It measures 90 x 87 x 40 millimeters, runs on 24 Volts DC

input power at a 10 to 30 Volt DC operating voltage. Its maximum heat dissipation is 3.7 Watts. The 1762-IQ16 enhances

the functionality controllers. It needs minimal space and it can be mounted on a DIN rail or a panel mount. The

1762-IQ16 module is a sinking and sourcing module that regulates the current flow between the input module and

the connected device. The devices on the negative side of the module are sinking field devices and the ones on the

positive side are sourcing field devices. The Source devices always provide current to the Sink devices. The 1762-IQ16

module has a single status LED that indicates power and helps identify the source of all the problems. The

module communicates and receives 10, 24, and 30 Volts of DC power via the 1762 bus interface. For wiring the input

terminal blocks, a finger-safe cover is included. The 1762-IQ16 uses bit positions 0 to 15 of word 0 for the input terminals.

The operation details of the module must be configured for each channel after installation.

Frequently asked questions：

Q1: What is the 1762-IQ16?
A1: The 1762-IQ16 is a discrete input module used in industrial systems to monitor digital input signals from field

devices such as switches, sensors, and push buttons.
Q2: What is the 1762-IQ16 input power requirement?
A2: The 1762-IQ16 module operates with an input power of 24 V DC, which is standard for many industrial control

systems.
Q3: What is the 1762-IQ16 operating voltage range?
A3: The 1762-IQ16 supports an operating voltage range of 10–30 V DC, with a typical operating range of

10–26.4 V DC.
Q4: What is the 1762-IQ16 signal delay time?
A4: The module has a signal delay of approximately 8.0 ms, allowing reliable detection of digital input signals.
Q5: What are the 1762-IQ16 off-state specifications?
A5: In the off state, the maximum voltage is 5 V DC and the maximum current is 1.5 mA.

Product Applications

Automobile manufacturing
Food and beverages
Warehousing logistics and material handling
Pharmaceuticals and Water Treatment
Mechanical manufacturing

Key Technical Features
Input Type: Sink/Source (flexible configuration).
Voltage Range: 24V DC nominal (operating range of 10 to 30V DC).
Capacity: 16 digital input points.
Mounting: Can be mounted on a DIN rail or directly to a panel.
Wiring: Includes a built-in, removable terminal block with a finger-safe cover for easier maintenance and safety.

Environmental & Safety Standards
Industrial Environments: Rated for use in clean, dry environments (Pollution Degree 2) and circuits not exceeding

Over Voltage Category II.
Hazardous Locations: Suitable for Class I, Division 2 applications when installed correctly.
Heat Dissipation: Maximum heat dissipation is 3.7 Watts.
