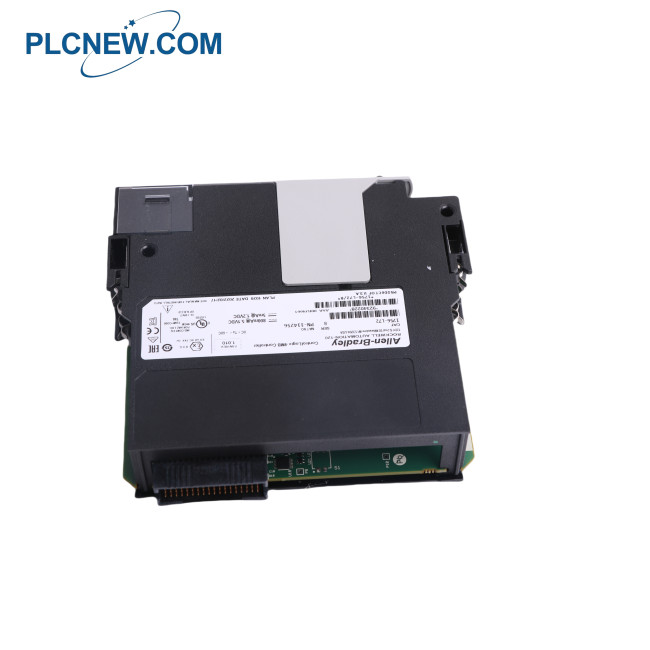

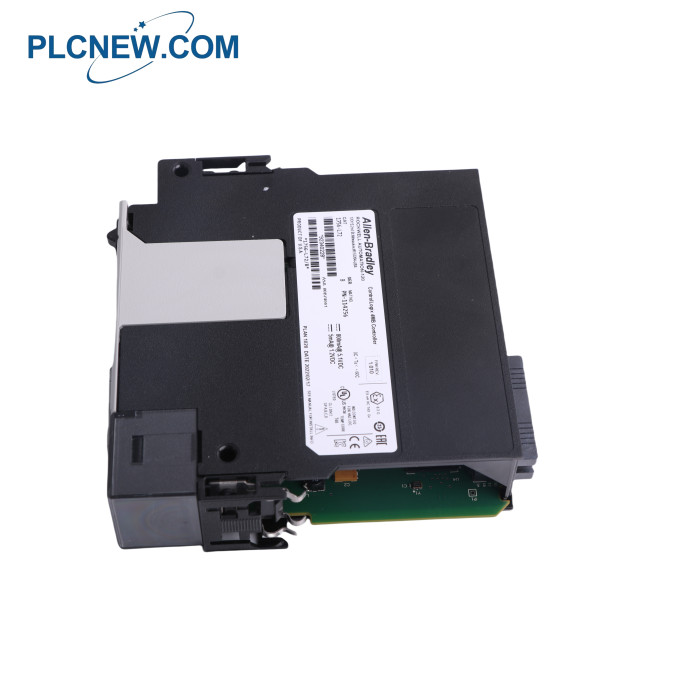

1756-L72 Controller Module

1756-L72 Controller Module

1756-L72 Specification

Part Number/Catalog No.：1756-L72
I-O Memory：0.98 MB
Module Type：Processor Module
User Memory：4 MB
Maximum I-O：128,000
Communication：1 port USB
Maximum Analog I-O：4,000
Maximum Digital I-O：128,000
Current Draw (1.2 Volts DC)：5 milliamps
Current Draw (5.1 Volts)：800 milliamps
User Memory：4MB
Power Dissipation：2.5 Watts
Backplane Current (1.2 Volts DC)：5 mA
Thermal Dissipation：8.5 BTU per hour
Backplane Current (5.1 Volts DC)：800 mA

1756-L72 Description

The 1756-L72 is a programmable automation controller (PAC) designed for

high-performance industrial applications. It features 4 MB of user memory for

data and logic, along with 0.98 MB of I/O memory. The controller includes a 1 GB

SD card (1784-SD1) for optional nonvolatile memory storage, with an upgrade option

to 2 GB via the 1784-SD2 card if additional capacity is needed. It is recommended to

use only manufacturer-approved SD cards, as they have been fully tested for compatibility.

Using other SD cards may result in data loss or corruption. These SD cards primarily store

diagnostic data, which is automatically recorded when faults occur and can be used for troubleshooting.

The 1756-L72 controller is equipped with three capacitor energy storage modules. The

1756-ESMCAP/1756-ESMCAPK is a removable module included in every controller. Another

removable option is the 1756-ESMNSE/1756-ESMNSEK, which does not provide residual

WallClockTime power backup. The 1756-ESMNRM/1756-ESMNRMK is a nonremovable module

designed to enhance security by preventing USB connections and SD card usage.
