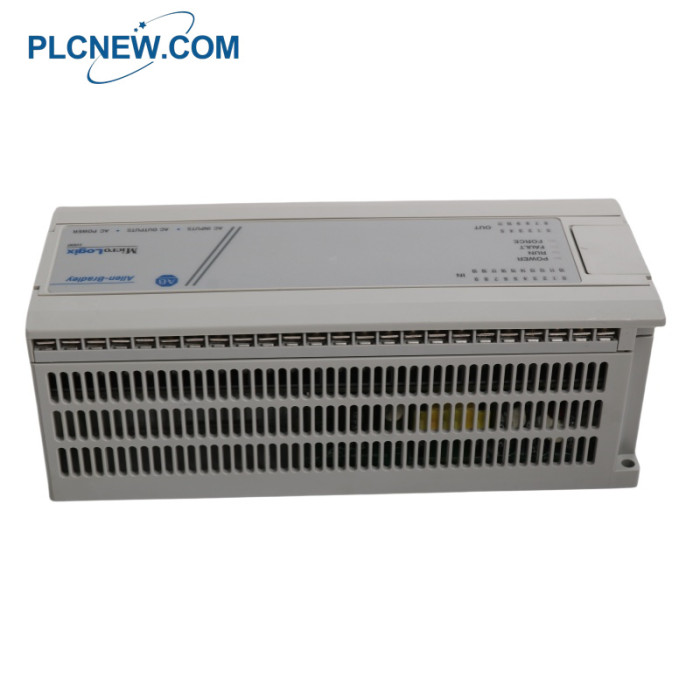

1761-L20AWA-5A Master Control Relay

1761-L20AWA-5A Master Control Relay

1761-L20AWA-5A specification

Part Number/Catalog No.:1761-L20AWA-5A
I/O Count:20 points
Input Type:120V ac
Communication port:RS232
Analog Circuits:4 Inputs, 1 Output
Protocol: DF1
Safety Feature:Master Control Relay
Product Type:Programmable Logic Controller (PLC)
Digital Outputs:8 Contact Outputs
No. of Discrete Inputs:Twelve (12)
Dimensions (L x D x H):7.87 x 2.87 x 3.15 inces
Input Voltage Type:120 Volts AC

1761-L20AWA-5A Description

The 1761-L20AWA-5A is a MicroLogix 1000 controller designed for AC power

supply applications. This controller features twelve (12) AC inputs, four (4)

 analog inputs, eight (8) relay outputs, and one (1) analog output. It also includes

a DF1 RS-232 communication port. The unit measures 7.87 x 2.87 x 3.15 inches and

is equipped with several LED indicators, including status LEDs, input LEDs, and output LEDs.

The controller offers 1K EEPROM memory with the capacity to handle up to 437 data-table

words and 737 instruction words. It supports a maximum of 40 timers and 32 counters.

The typical program scan time per Kword is 2 milliseconds, and the typical I/O scan time is 0.21

 milliseconds. It provides a 24 Volts DC sensor power with a maximum of 200 mA and supports

a maximum capacitive load of 200 µF. The line voltage for the controller is 120/240 Volts AC.

It consumes 12 Watts of real input power at 120 Volts AC and 13 Watts at 240 Volts AC, with

an apparent input power of 20 VA at 120 Volts AC and 27 VA at 240 Volts AC. The transformer

load available is 30 VA at 120 Volts AC and 33 VA at 240 Volts AC. The controller's digital input

 voltage is 120 Volts AC, with an input current range of 0 to 20 mA -1LSB and an input voltage

range of -10.5 to 10.5 Volts -1LSB.
