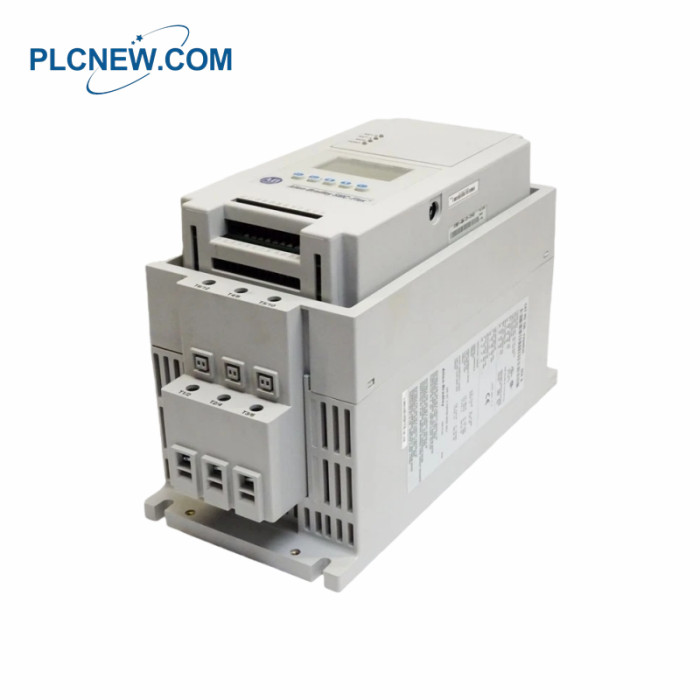

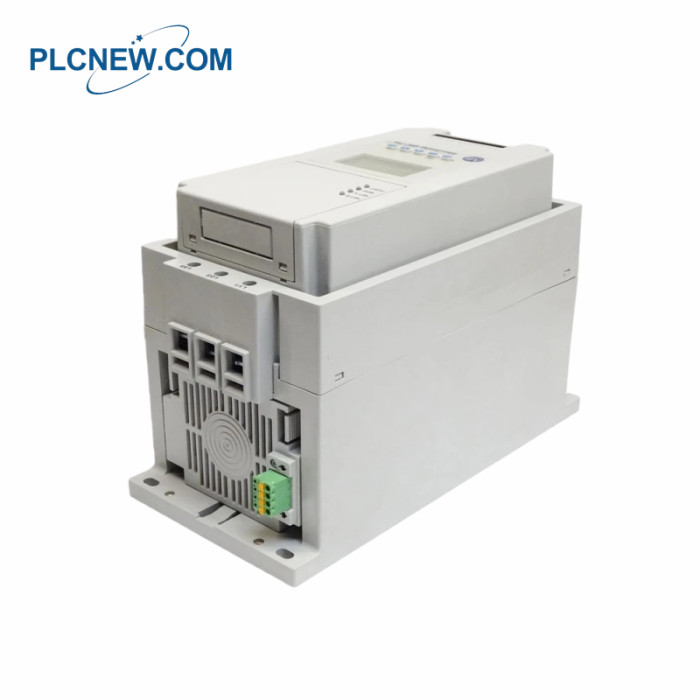

150-F43NBDD Motor Controller

150-F43NBDD Motor Controller

Details of the module

Category: Drives
Product Line: SMC-Flex
Part Number: 150-F43NBDD
Bulletin Number: Solid State Controller
Enclosure Type: Open
Weight: 12.00 lbs (5.44 kg)
Controller Rating: 480A, 400 HP at 460V AC
Rated Voltage: 500/575V AC
Control Voltage: 100-240V AC
Input Line Voltage: 200-460V AC
Control Option:Baking

The 150-F43NBDD Solid-State Controller is manufactured by under the SMC Flex series. The module comes

with an open enclosure and features 43 Amps, 30 Horsepower at 460 Volts AC controller ratings. The

150-F43NBDD’s rated voltage is 200 to 480 Volts AC for the input line voltage. The control voltage is 100 to

240 Volts AC which translates to 5 to 480 Amps Units. 150-F43NBDD SMC flex module is used to operate the

standard 3-phase squirrel cage induction motors. It also operates the Wye-Delta (6-Lead) motors efficiently.

The soft starter comes in combination and non-combination models. Each 150-F43NBDD controller features

has seven standard start modes that are used to control the resistive loads. In addition, it also comes with an

LCD feature that makes operating the 150-F43NBDD easier. The LCD and programmable keyboard indicate that

the 150-F43NBDD is easy to use, especially when being configured for an industrial setting.

Frequently asked questions：

Q1: What is the 150-F43NBDD?
A: The 150-F43NBDD is a motor controller designed for industrial motor management and protection.
Q2: What is the controller rating of the 150-F43NBDD?
A: The 150-F43NBDD has a controller rating of 480 A, 400 HP at 460 V AC.
Q3: What is the rated voltage of the 150-F43NBDD?
A: The 150-F43NBDD supports a rated voltage of 500/575 V AC.
Q4: What is the control voltage of the 150-F43NBDD?
A: The 150-F43NBDD operates with a control voltage of 100–240 V AC.

Product Applications
Pumping & Water Treatment
Material Handling & Conveyors
HVAC & Refrigeration
Heavy Machinery

Core Features
Integrated Braking Control: The "D" suffix in the part number indicates the inclusion of Smart Motor Braking (SMB),

which is used for applications requiring rapid deceleration or precise positioning.
Flexible Starting Modes: Supports various modes including Soft Start, Selectable Kickstart, Current Limit Start, and

Dual Ramp Start.
Internal Bypass: Features a built-in SCR bypass that closes once the motor reaches full speed, reducing heat generation

during normal operation.
Diagnostics & Protection: Includes electronic motor overload protection, under/overvoltage protection, and fault diagnostics

via a built-in LCD display and keypad.
