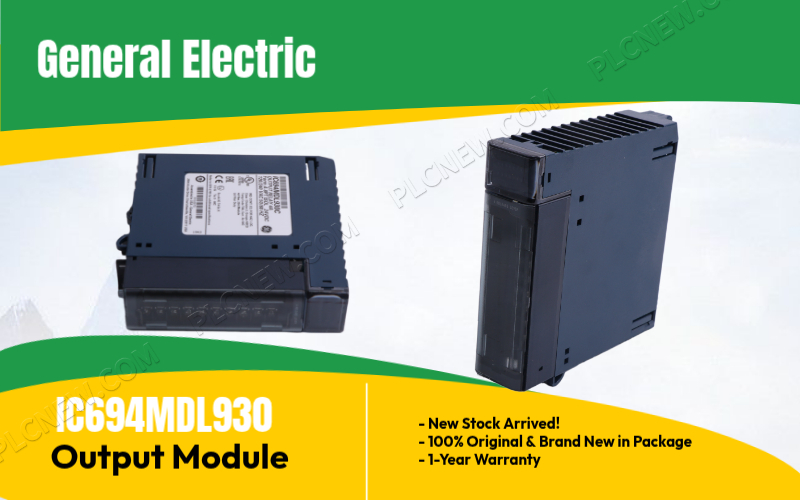

What is the GE IC694MDL930 output module?
The IC694MDL930 Output Module is an AC/DC output module manufactured as part of the RX3i PACSystems series. It is an 8-channel relay output module manufactured by GE Fanuc as a member of the RX3i PACSystems discrete I/O PLC product line. The IC694MDL930 Output Module is intended to provide the interface between external output devices like the motor starters, solenoids, and indicators and the RX3i PLCs. It comes with 8 individually-isolated and normally-open relay outputs. Each of these outputs can be used to switch loads of 4 Amps at maximum, with each of the output points equipped with a distinct common output terminal. The GE Fanuc IC694MDL930 Output Module uses an external power supply for its operation. The users can use it with a DC or AC power module with power ratings of 24 Volts DC or 120 to 240 Volts AC for powering the connected field devices.
The GE Fanuc IC694MDL930 AC/DC Output Module operates on a voltage ranging from 5 to 250 Volts AC or 5 to 30 Volts DC at a frequency rate of 50 to 60 Hertz. The point-to-point output isolation rating of this unit is 1500 Volts AC for 60 seconds or 250 volts AC continuous. This output module features 8 individually-isolated normally-open relay type outputs with an all-out output current load of 4 Amps per point and or 20 Amps per module. The GE Fanuc IC694MDL930 AC/DC Output Module comes with 6.0 milliamps of maximum backplane current at 5.0 Volts DC. It also has 10.0 milliamps of minimum output load per point. It has 5 Amps of maximum inrush current rating and 10 milliseconds of response time for switching on and switching off.
Technical Specifications of IC694MDL930
Manufacturer: General Electric
Part Number: IC694MDL930
Weight: 0.88 pounds (0.40 kilograms)
Series: PACSystem RX3i
Product Description: Relay Output Module
Number of Channels: Sixteen (16), each channel is independently isolated
Description: AC/DC Voltage Output Module
Output Contact Form: A-shaped (Normally Open, N.O.)
Operating Voltage: 5 to 30 volts DC or 5 to 250 volts AC
Contact Form: Normally Open (N.O.) A-shaped Contacts
Output Voltage Range: 5 - 250 volts AC / 5 - 30 volts DC
Switching Current: 4.0 amperes per point at rated output voltage: 120 to 240 volts AC; 24 volts DC
Rated Output Voltage: 24 volts DC; 120/240 volts AC
Minimum Output Current: 10 milliamps per point
Relay Contact Life: 150,000 to 1,000,000 operations maximum. Response Time: 10.0 milliseconds
External Power Supply Voltage: 5 - 250 volts AC / 0 - 30 volts DC
What is the importance of IC694MDL930 in industry?
In modern environments, reliable signal control is crucial for maintaining efficient operation. The IC694MDL930 module achieves this goal by providing stable and precise digital output control.
One of the main advantages of this module is its ability to manage multiple devices through a multi-channel configuration. This reduces wiring complexity and saves valuable cabinet space. Additionally, the module's design provides consistent electrical performance, which is crucial for preventing equipment from unexpected shutdowns.
Industrial facilities typically require reliable modules that can operate continuously under harsh conditions. The IC694MDL930 is designed for critical tasks and, considering its durability and stability, makes it a reliable key component.
Where is the GE IC694MDL930 output module commonly used?
The IC694MDL930 module is widely used in industries that rely on PLC control systems. Due to its compatibility with the 90-30 series controllers, it can be integrated into various architectures.
Typical application environments include:
Manufacturing production lines
Packaging and material handling systems
Water and wastewater treatment plants
Energy power generation facilities
Oil and gas processing systems
When should the IC694MDL930 be chosen as the output module for your PLC system?
Choosing the appropriate output module depends on system requirements, such as voltage levels, the number of output channels, and the type of load being controlled. When the system needs to provide reliable digital outputs for multiple field devices within a compact PLC rack, the IC694MDL930 is an ideal choice.
It is typically selected in the following scenarios:
Newly installed PLC systems
Expansion of existing systems
Replacement of aging or deactivated modules
System upgrades requiring stable output control
How does the IC694MDL930 help improve system efficiency?
The IC694MDL930 helps enhance overall system efficiency by providing fast response times and reliable output switching. Its design ensures that instructions issued by the PLC processor can be accurately delivered to the field devices, minimizing machine operation delays.
