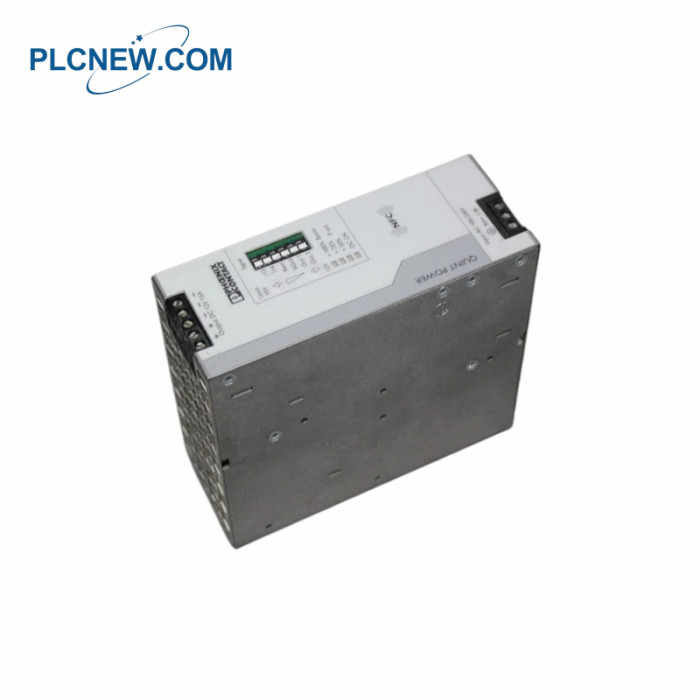

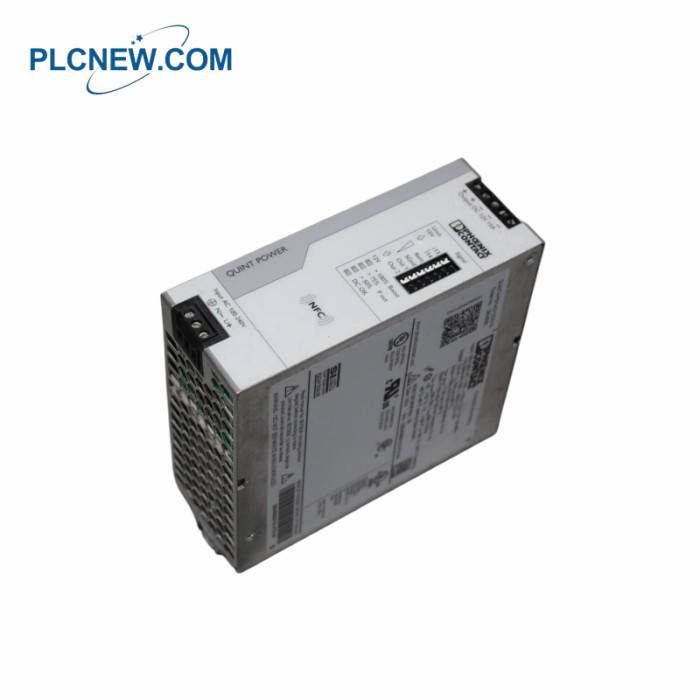

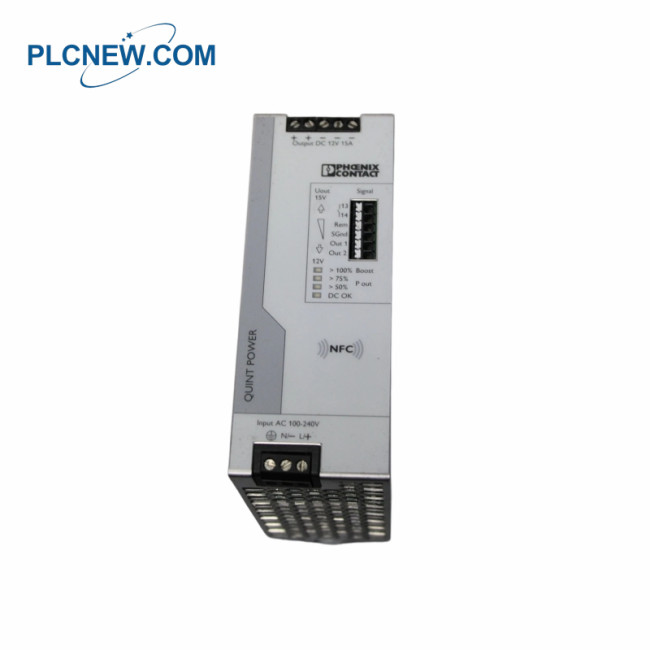

Phoenix Contact QUINT4-PS/1AC/12DC/15 Power supply
Specifications
|
Product Model |
QUINT4-PS/1AC/12DC/15 |
|
AC Operation |
|
|
Nominal Input Voltage Range |
100 V AC ... 240 V AC |
|
Input Voltage Tolerance Range |
100 V AC ... 240 V AC -15 % ... +10 % |
|
Max Electric Strength |
300 V AC for 60 s |
|
Typical National Grid Voltage |
120 V AC / 230 V AC |
|
Supply Voltage Type |
AC |
|
Typical Inrush Current (25 °C) |
15 A |
|
Inrush Current Integral (I2t) |
< 0.6 A²·s |
|
Inrush Current Limitation |
15 A (after 1 ms) |
|
AC Frequency Range |
50 Hz ... 60 Hz -10 % ... +10 % |
|
Rated Frequency Range (fN) |
50 Hz ... 60 Hz -10 % ... +10 % |
|
16.7 Hz (acc. to EN 50163) |
|
|
Mains Buffering Time |
Typ. 55 ms (120 V AC) |
|
Typ. 56 ms (230 V AC) |
|
|
DC Operation |
|
|
Nominal Input Voltage Range |
110 V DC ... 650 V DC |
|
Input Voltage Tolerance Range |
110 V DC ... 250 V DC -18 % ... +40 % |
|
Supply Voltage Type |
DC |
|
Current Consumption |
2.2 A (110 V DC) |
|
1 A (250 V DC) |
|
|
Output Data |
|
|
Nominal Output Voltage |
12 V DC |
|
Output Voltage Setting Range (USet) |
12 V DC ... 15 V DC (constant capacity) |
|
Nominal Output Current (IN) |
15 A |
|
Static Boost Current (IStat.Boost) |
17.5 A |
|
Dynamic Boost Current (IDyn.Boost) |
20 A (5 s) |
|
Selective Fuse Breaking Current (ISFB) |
60 A (15 ms) |
|
Magnetic Circuit Breaker Tripping Type |
A1...A6 / B2...B6 / C1...C2 / Z1...Z6 |
|
Temperature Derating |
> 60 °C ... 70 °C (2.5 %/K) |
|
Feedback Voltage Resistance |
≤ 25 V DC |
|
Output Overvoltage Protection (OVP) |
≤ 18 V DC |
The fourth generation of the high-performance QUINT POWER power supplies ensures superior system availability by
means of new functions. Signaling thresholds and characteristic curves can be individually adjusted via the NFC interface.
The unique SFB technology and preventive function monitoring of the QUINT POWER power supply increase the availability
of your application.
Product Applications
Industrial mechanical equipment: Suitable for single-phase AC input power supply, providing a stable 12V-15V DC
adjustable output voltage.
Heavy industry / harsh environment: Its metal casing design makes it suitable for high-interference and high-voltage
stability-demanding working environments.
Shipbuilding / ship application: With its strong anti-interference and high stability, it meets the special power
supply requirements of high-demand industries such as ships.
Power / communication system: Easily trigger circuit breakers through SFB technology to effectively protect the DC
load side, widely used in distribution cabinet control units.
