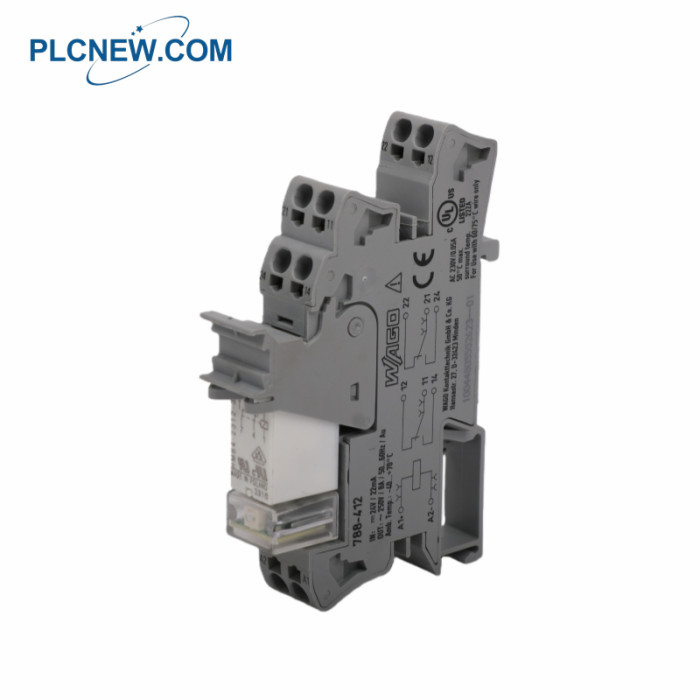

WAGO 788-412 Relay Module
Your Partner is Listening
Sales Manager: Frida
Phone/WhatsApp: +86-18965196563 Email:sales17@amikon.cn
Product Parameters
Dimensions (W x H x D): 15 x 86 x 54 mm
Weight: 47.6g
Conductor Range: 0.34 ... 2.5 mm² / 22 ... 14 AWG
Strip Length: 9 ... 10 mm
Nominal Input Voltage: 24 VDC
Input Voltage Range: ±10 %
Nominal Input Current: 17 mA
Contact Configuration: 2 Changeover
Max. Switching Current: 8 A
Max. Switching Voltage: 250 VAC
Rated voltage: 250V
Rated impulse withstand voltage:4kV
Recommended minimum load:5 V / 2 mA / 50 mW
Pull-in time (typ.):7ms
Drop-out time (typ.):3ms
Bounce time (typ.):6ms
Electrical Life: 100 x 10⁶ operations
Mechanical Life: 30 x 10⁶ operations
Operating Temperature (Standard): -40 ... +70 °C
Operating Temperature (UL): -40 ... +50 °C
Storage Temperature: -40 ... +70 °C
Processing Temperature: -25 ... +50 °C
Connection Cable Temperature: ≥ (Tambient + 20 K)
Product Notes
▲Reinforced insulation between coil and contacts.
▲To prevent damaging the gold layer, 30 VDC switching voltages and 50 mA currents must not be exceeded.
Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing may reduce service life.
▲To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
▲A separator plate (e.g., 209-191) must be used for voltages exceeding 250 V between adjacent relay modules
and to comply with reinforced insulation requirements.
