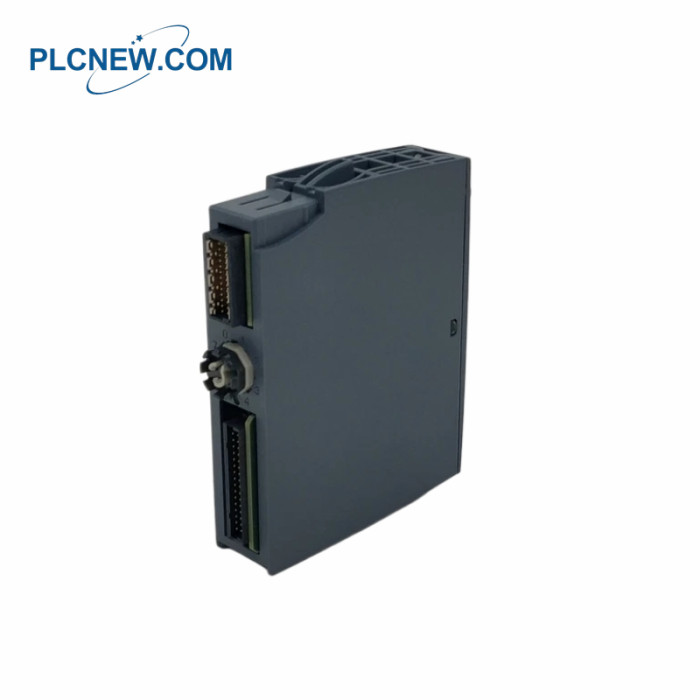

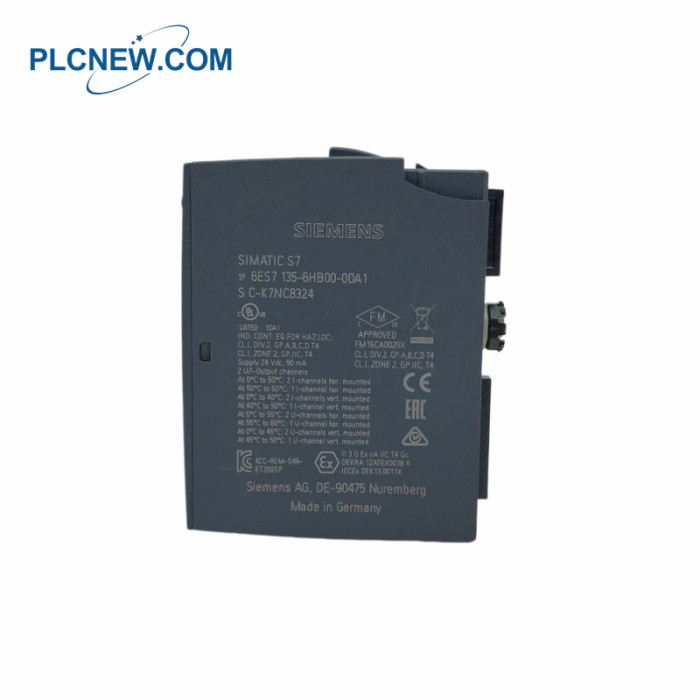

Siemens 6ES7135-6HB00-0DA1 Analog output module
6ES7135-6HB00-0DA1 Specifications
Product model：6ES7135-6HB00-0DA1
Rated Value (DC)：24 V
Valid Range (Low Limit, DC)：19.2 V
Valid Range (High Limit, DC)：28.8 V
Current Consumption (Rated Value)：45 mA (No Load)
Power Loss (Typical)：0.9 W
Values per Cycle (Max)：16
Voltage Outputs (Load Resistance, Min)：2 kΩ
Voltage Outputs (Capacitive Load, Max)：1 µF
Current Outputs (Load Resistance, Max)：500 Ω
Current Outputs (Inductive Load, Max)：1 mH
Output Voltage (Max)：30 V
Operating Temperature (Horizontal Installation)：0 °C to +60 °C
Operating Temperature (Vertical Installation)：0 °C to +50 °C
6ES7135-6HB00-0DA1 Description
The Siemens part number 6ES7135-6HB00-0DA1 refers to an analog output module called AQ 2xU/I HS, which
is part of the SIMATIC ET 200SP series. This 6ES7135-6HB00-0DA1 module is designed for use in industrial
systems, particularly in the areas of process control and monitoring.
Frequently asked questions：
Q1: What is the 6ES7135-6HB00-0DA1?
A1: The 6ES7135-6HB00-0DA1 is a Siemens analog output module used to generate analog signals for
controlling field devices in industrial systems.
Q2: What is the 6ES7135-6HB00-0DA1 rated supply voltage?
A2: The rated supply voltage is 24 V DC.
Q3: What is the 6ES7135-6HB00-0DA1 permissible voltage range?
A3: The 6ES7135-6HB00-0DA1 module operates within a valid range of 19.2 V to 28.8 V DC.
Q4: What is the 6ES7135-6HB00-0DA1 current consumption?
A4: It draws approximately 45 mA (no load).
Q5: What is the 6ES7135-6HB00-0DA1 typical power loss?
A5: The 6ES7135-6HB00-0DA1 module has a typical power loss of 0.9 W.
Product Applications
Automobile manufacturing: Used to control the precise displacement and speed of servo drives, proportional
valves or robot arms on the production line, ensuring high-precision synchronization in welding, assembly and
other processes.
Food processing and packaging: In filling machines or packaging equipment, by taking advantage of its
high-speed isochronous mode feature, precisely control the action time of the actuators to enhance production
efficiency.
Logistics and warehousing: In sorting systems or conveyor belt control, quickly adjust the motor speed based on
sensor feedback to achieve smooth acceleration and deceleration.
Process industry: Applicable to factory environments that require precise pressure and flow regulation, by
outputting 0-10V or 4-20mA signals to drive various proportional regulating valves.
Technical Specification Highlights
Ultra-fast Response: Supports synchronous mode at 125 µs, ideal for closed-loop control tasks with extremely
high real-time requirements.
Flexible Output: A single channel can be configured as either voltage (U) or current (I) output, meeting the
signal requirements of different actuators.
Diagnostic Function: Provides channel-level diagnostics, including short-circuit monitoring, open-circuit detection,
and value status (Value Status) feedback, facilitating rapid troubleshooting of on-site faults in the factory.
Compact Design: 15mm width saves control cabinet space, suitable for distributed I/O installation environments.
