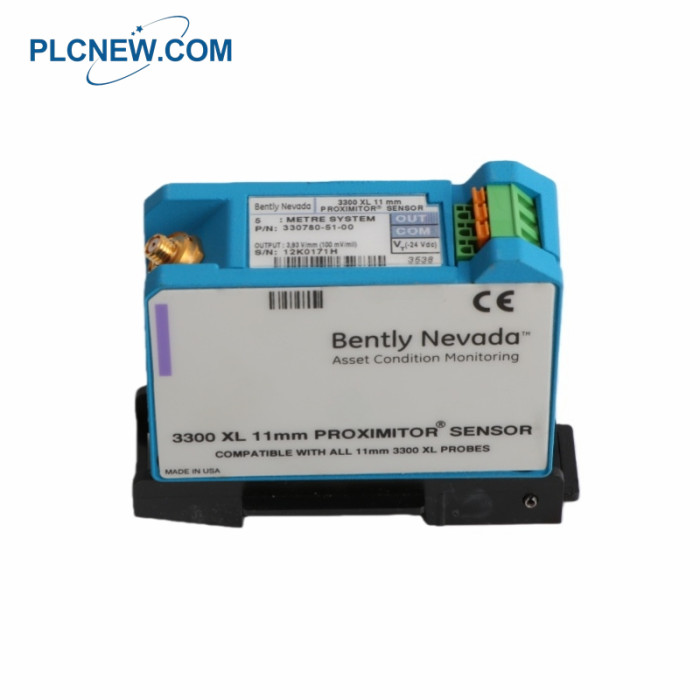

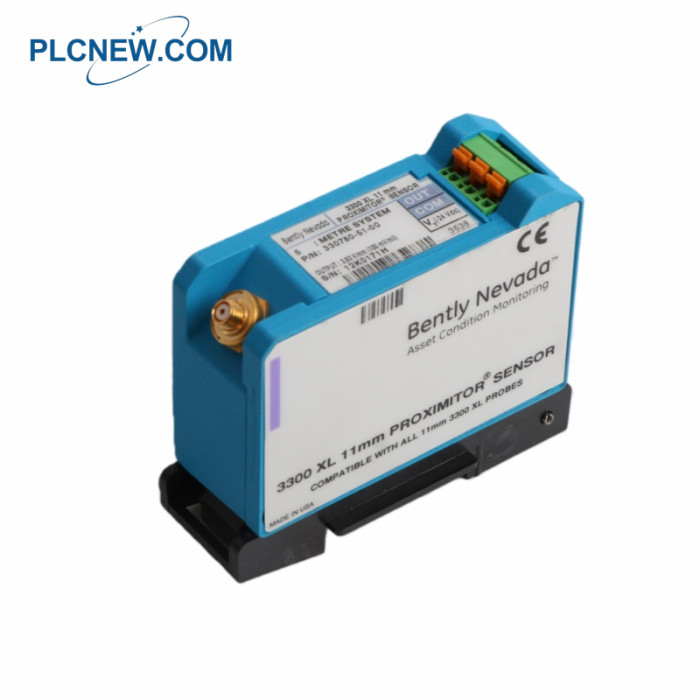

Bently Nevada 330780-51-00 Proximitor Sensor

Bently Nevada 330780-51-00 Proximitor Sensor

Quote at the Same Day

Sales Manager: Frida

Phone/WhatsApp: +86-18965196563       Email:sales17@amikon.cn

Product Parameters

AA: Total Length and Mounting Option = 51 → 5.0 meter (16.4 feet) system length, DIN rail mount
BB: Agency Approval Option = 00 → Not required (No specific hazardous area certifications)
Power Supply: Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption.

Operation with barriers requires -23 Vdc to -26 Vdc.
Output Resistance: 50 Ω
Output Scale Factor: 3.94 V/mm (100 mV/mil) ±10% for a complete system.
Dimensions (DIN Mount):
Height: 70.8 mm (2.79 in)
Depth: 89.4 mm (3.52 in) - An additional 3.05 mm (0.120 in) clearance is required to remove the DIN rail.
Weight: 255 g (9 oz) typical.
Linear Range: 4.0 mm (160 mils), from 0.5 mm to 4.5 mm from the target.
Recommended Gap Setting: 2.5 mm (100 mils)
Frequency Response: 0 to 8 kHz, +0, -3 dB typical, with up to 305 meters (1000 feet) of field wiring.
Deviation from Straight Line (DSL): Less than ±0.10 mm (±4 mils) over the standard range.
Environmental:
Operating Temperature: -52°C to +100°C (-62°F to +212°F)
Storage Temperature: -52°C to +105°C (-62°F to +221°F)

Attention Before Use

1. Voltage: Stay within specified range.   Exceeding -23.5 Vdc reduces linear range.
2. Wiring: Use 16-24 AWG shielded triad cable.   Max length 305 m (1000 ft).
3. Mounts on standard 35 mm DIN rail.   Ensure clearance for installation/removal.
4. Accuracy requires AISI 4140 steel target, min. 31 mm (1.2 in) diameter.
5. For smaller shafts: risk of cross-talk and scale factor change.   Maintain min. tip separation (e.g., 64 mm axial).
6. Take ESD precautions.
7. SpringLoc terminals allow tool-free, robust field wiring.
