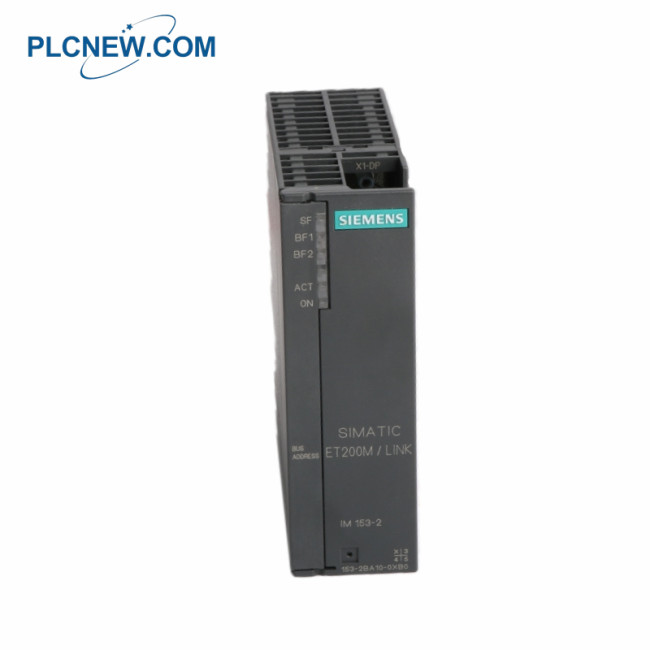

SIEMENS 6ES7153-2BA10-0XB0 Slave Interface Module

SIEMENS 6ES7153-2BA10-0XB0 Slave Interface Module

Get Your Best Offer Now - Frida will help you

Phone/WhatsApp: +86-18965196563

Email: sales17@amikon.cn

Address:GUOMAO BUILDING, HUBIN SOUTH ROAD, SIMING DISTRICT, XIAMEN, Fujian, China.

Product Specifications

Firmware Version: V6.0.0
Function: PROFIBUS DP Slave Interface Module for ET200M Distributed I/O Station with redundancy capability
Max.  Number of Modules: 12 S7-300 I/O modules
PROFIBUS DP Transmission Rate: Up to 12 Mbit/s
PROFIBUS DP Functions: SYNC, FREEZE, Direct Data Exchange (slave-to-slave)
Supply Voltage: 24 VDC (20.4 V to 28.8 V range)
Current Consumption (max.): 650 mA @ 24 VDC
Backplane Bus Current (5V DC, max.): 1.5 A
Power Loss (typical): 5.5 W
Address Space: 244 bytes for inputs and 244 bytes for outputs
Time Stamping: Accuracy of 1 ms (up to 8 modules) or 10 ms (up to 12 modules);  supports up to 128 digital inputs
Interface: 9-pin sub-D socket (RS-485)
Operating Temperature: 0 °C to 60 °C (horizontal);  0 °C to 40 °C (vertical)
Protection Rating: IP20
Dimensions (W x H x D): 40 mm x 125 mm x 117 mm
Weight: approx.  360 g

This is a high-feature interface module that connects an ET200M distributed I/O station to a PROFIBUS DP network as a slave.

It supports up to 12 S7-300 I/O modules and offers advanced functions like redundancy, time stamping, and direct data exchange

between slaves. The module is designed for robust industrial use with a wide range of power input and comprehensive

international certifications. It enables flexible and high-performance integration of modular I/O into systems.
