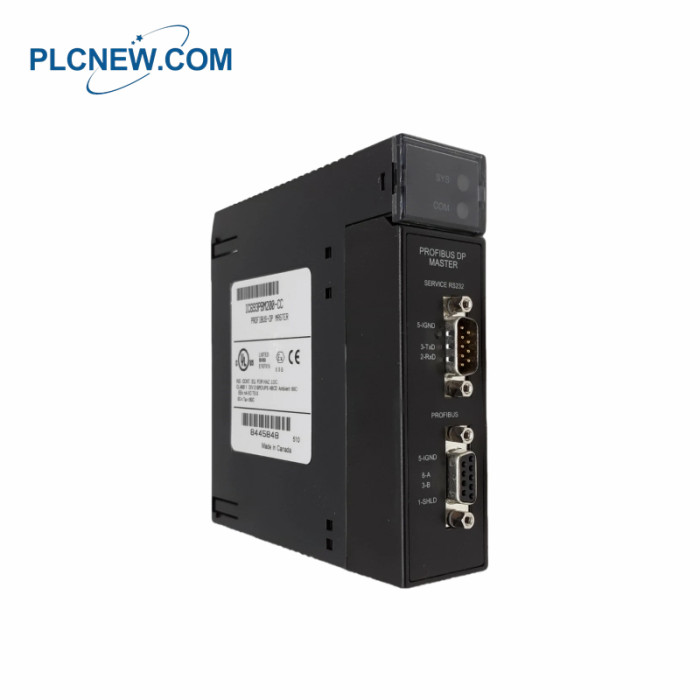

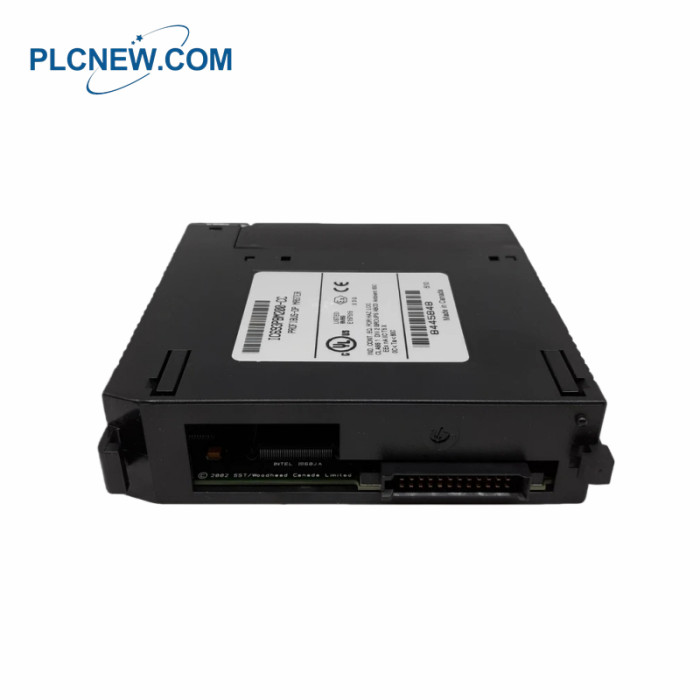

GE IC693PBM200 Master module

GE IC693PBM200 Master module

Product Details

Manufacturer：GE Fanuc
Product Line：Series 90-30
Part Number：IC693PBM200
Communication Protocol：Profibus DP
Communication Interfaces：
1 × RS-232 Service Port
1 × Profibus Master Port
Number of Supported DP Slaves：Up to 125
Data Rates：All standard Profibus DP data rates supported
Input Data Capacity：244 Bytes
Output Data Capacity：244 Bytes
Backplane Current Consumption：450 mA at 5 VDC (typical)
Operating Temperature：0 to 60°C (32 to 140°F)
Weight：0.44 lbs (0.20 kg)

The IC693BPM200 is a Profibus Master Module that is part of the Series 90-30 controller platform previously

from GE Fanuc, now acquired by Emerson Automation. This module is an option communications module that

support Profibus communication protocol. It comes with One (1) Profibus Master port that supports communication

to Profibus network in daisy chain topology and another RS232 service port that can be used for downloading

configuration and firmware upgrade. The IC693BPM200 is a single slot module that installs to the CPU baseplate,

expansion or remote baseplate. It supports communication of up to 125 Profibus DP slaves, enabling implementation

of Remote I/O architecture and communication to other devices such as gateways, HMI, SCADA and other devices. For

Remote I/O functionality, each Profibus slave is able to receive 244 Bytes of input data and send 244 Bytes of output

data. It supports Synch and Freeze configuration and configurable to all Profibus standard transmission rates ranging

from 9600 Kbaud to 12MBaud. It follows Daisy-chain topology as this protocol is derived from RS485 electrical standard

with both ends, specifically, node 1 and the last node of the network, closed by means of a terminating resistor.
