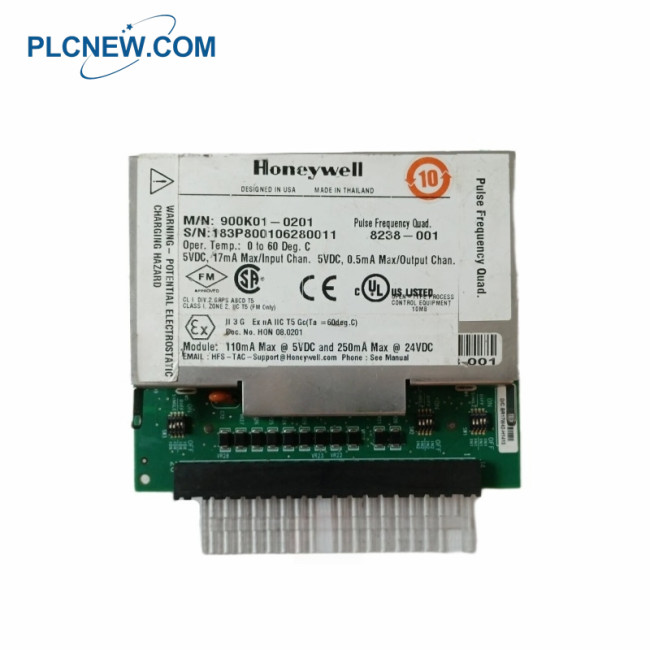

HONEYWELL 900K01-0201 4 Channel Pulse/Frequency/Quadrature Module

HONEYWELL 900K01-0201 4 Channel Pulse/Frequency/Quadrature Module

Start Your Order Today

Sales Name: Frida

/WhatsApp:+86-18965196563

:sales17@amikon.cn

Detailed Information

The 4 Channel Pulse/Frequency/Quadrature Module provides four different functionalities in the form of Pulse Input,

Frequency measurement, Quadrature encoder input and Pulse Output. Each of these channels can be configured for

any one of these four functions; with the exception that quadrature encoder input  (A and B pulses) can be applied

to only Channels 1 and 2 respectively. When configured for quadrature, the other two channels will still be

available for use. The Pulse Output functionality uses the digital output available on the module for outputting pulses.

A green blinking status LED on the module indicates when the module is being scanned.  An amber blinking status

LED indicates when channels are forced and a red status LED when module diagnostics exist.

Dimension: 137mm H x 35.6mm W 5.4” H* x 1.4" W

Weight: 360g
Inputs per Module: 4
Outputs per Module: 4
Input Voltage Range: 0 VDC to 24 VDC
ON Voltage Level: 3.0 VDC minimum
OFF Voltage Level: 1.0 VDC maximum
Input Impedance: 25K ohm
Maximum Frequency: 10 KHz
Minimum Pulse Width: 3 μsec
Pulse Counter: 32 bits
Digital Output Range: 5 to 24V
Digital Output Current: 30mA max
Power Supply Loading @5V: 110mA max
Power Supply Loading @24V: 250mA max (with Encoder)
Power Supply Loading @24V: 100mA max (without Encoder)
Preset Value: Configurable within 32-bit range
Counter HOLD: Supported via function block
Counter RESET: Via function block OFF to ON transition
