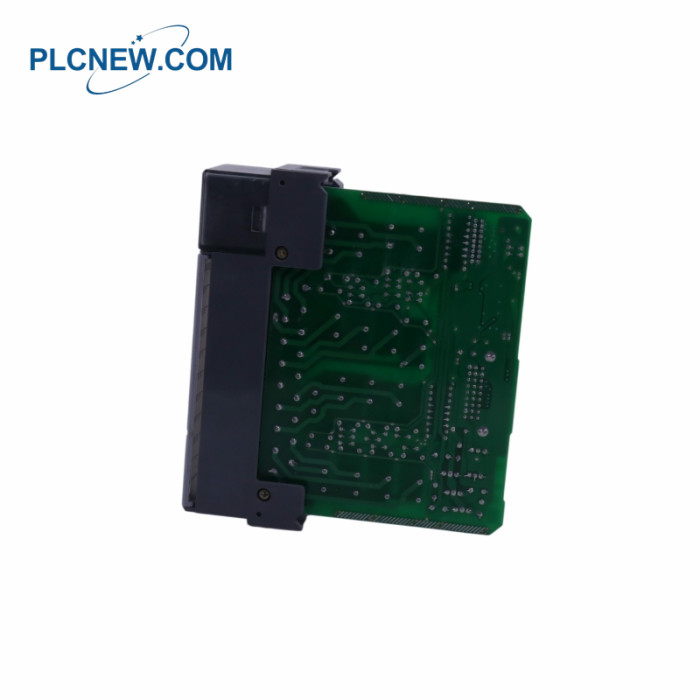

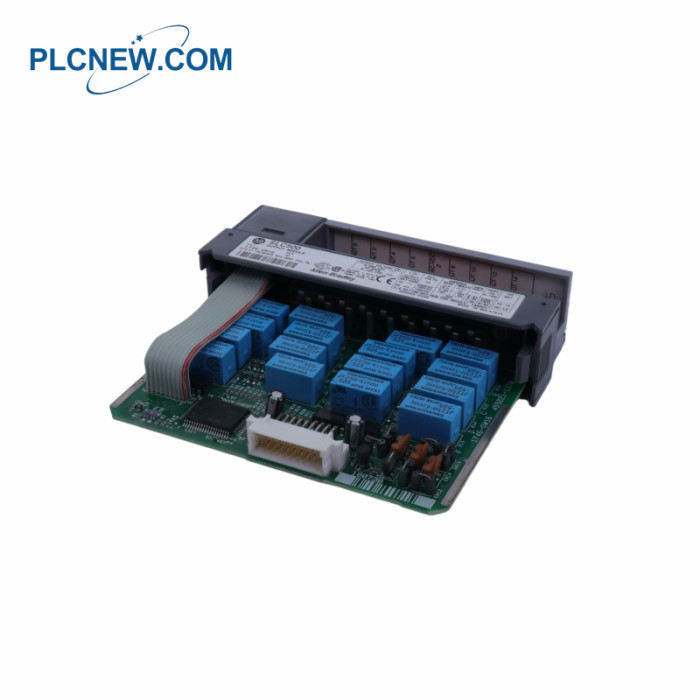

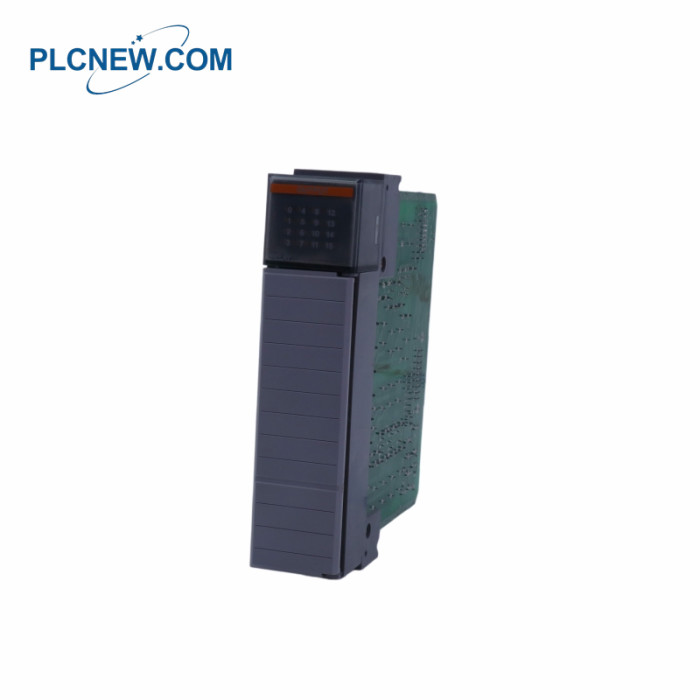

1746-OW16 Digital output module
Specifications
Part Number
1746-OW16
Weight
1.00 lbs (0.45 kg)
Total Output Points
16 points
Points per Common Group
8 points/common
DC Operating Range(5V rated)
5～125 V
AC Operating Range(24V rated)
5～265 V
Min Load Current @5VDC
10 mA
Backplane Current @5VDC
0.170 A
Backplane Current @24VDC
0.180 A
Max Off-State Leakage Current
0 mA
Max Signal Delay (Resistive Load)
ON: 10 ms；OFF: 10 ms
Power Consumption per Channel
0.033 W
Minimum Total Module Power
5.170 W
The part 1746-OW16 is classified as a digital output module within , providing essential capabilities for and control tasks.
It supports a total of 16 outputs, with each section divided into groups of 8 points for common connections. This
configuration allows for efficient use in control strategies involving multiple devices. Operating under Normally
Open conditions, the module is versatile in creating desired circuit configurations.
The module operates with a voltage range at 5 volts DC from 5 to 125 volts, while it can manage a voltage range of 5
to 265 volts DC under 24 volts, which enables broad compatibility with various systems.
For load handling, the 1746-OW16 requires a minimum load current of 10 mA at 5 volts DC, ensuring it can activate
connected devices effectively. The backplane current consumption ratings are 0.170 Amps at 5 volts DC and 0.180 Amps
at 24 volts DC, representing efficient power usage.
Product Applications
Metals & Mining: Used for controlling solenoid valves in conveyor belts, crusher starters, and ore sorting gates, as well as
high-decibel alarms and status indicator lights in control areas.
Oil & Gas: In oil and gas pipeline monitoring and tank farm control, due to its strong electrical isolation between channels
and to the backplane, it is commonly used for remotely driving safety valves, shut-off valves, solenoid valves, and pump
start relays in control panels.
Water & Wastewater: Widely used in pump stations, chemical dosing systems, and filter backwashing systems,
controlling various electric valves, bar screens, and contactor switches for chemical dosing pumps.
Power Generation: In power plants and substations, in peripheral auxiliary control systems (such as fan control, cooling
water circulation, and lighting control), its wide voltage adaptability allows direct connection to control loops of
different voltage levels.
Pulp, Paper & Printing: Pneumatic/hydraulic solenoid valves, clutch control coils, and conveyor belt diversion mechanisms
used in large equipment such as paper rollers, paper cutters, and printing presses.
