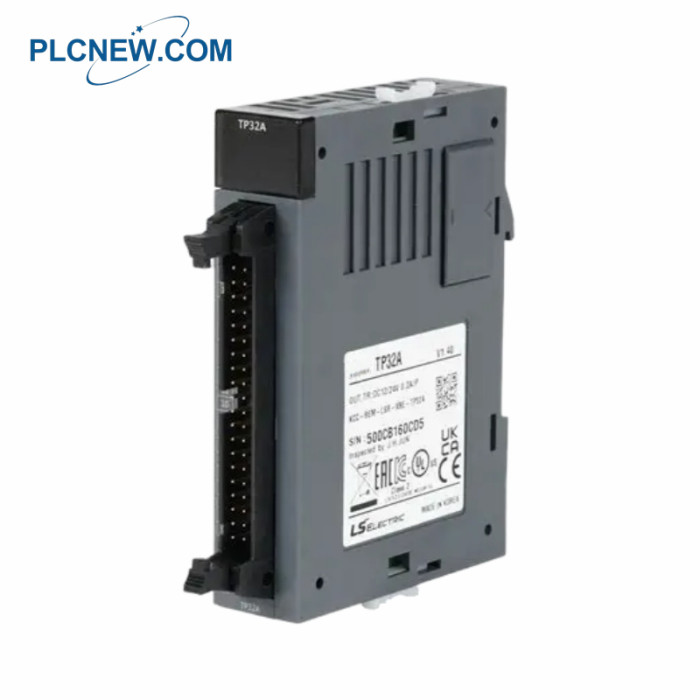

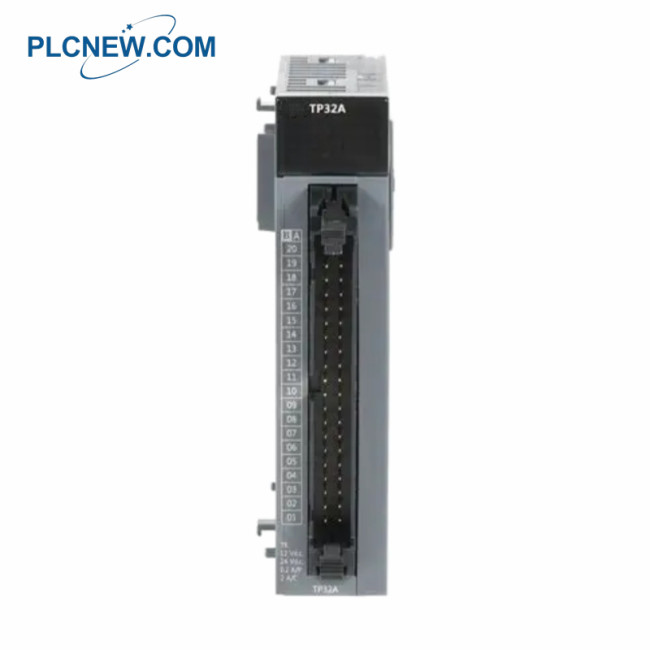

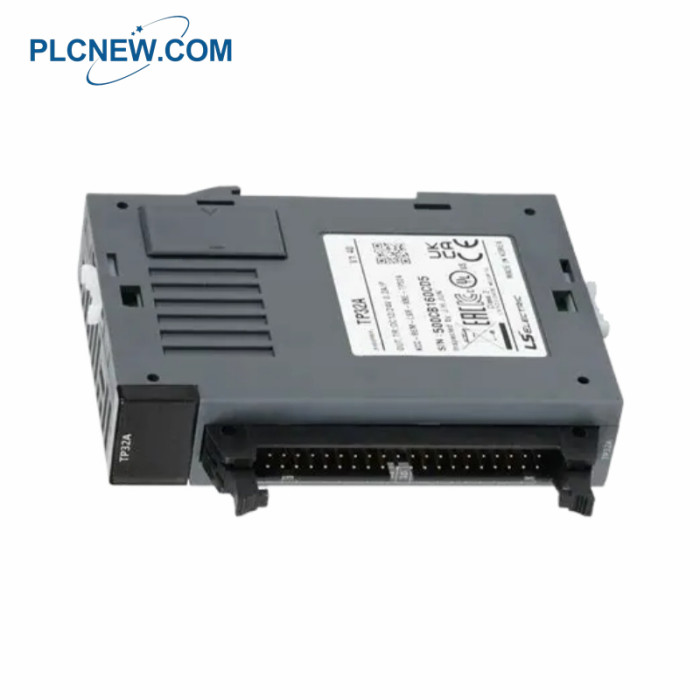

HONEYWELL MLE-TP32A Transistor Output Module

Specification

Feature

Output Points: 32 transistor outputs (open collector, source type)
Rated Load Voltage: DC12/24V
Load Voltage Range: DC10.2V ~ 26.4V
Maximum Load Current:
0.2A per point
2A per common
Off Leakage Current: ≤ 0.1mA
Maximum Voltage Drop (On): DC0.4V
Response Time:
Off → On: ≤ 1ms
On → Off: ≤ 1ms (under rated resistive load)
Common Method: 32 points / 1 common
Internal Current Consumption:
DC24V connection: 120mA
Operating Voltage: DC12/24V ±10% (ripple voltage ≤ 4V peak-to-peak)
Current Consumption:
DC24V: 20mA or less
External Connection Method: 11-pin terminal block

High Output Density: 32 transistor outputs for multi-point low-power control, reducing the number of modules and saving space in control cabinets.
Fast Switching: ≤1ms response time for both Off→On and On→Off transitions, ideal for rapid signal applications.
Reliable Photo-Coupler Isolation: Ensures stable signal transmission and minimizes interference from external electrical noise.
Broad Voltage Compatibility: Supports DC12/24V rated voltage with DC10.2–26.4V operational range for flexibility with industrial devices.
Stable Current Handling: 0.2A per output point, 2A per common, with off leakage ≤0.1mA, ensuring consistent operation for light-load applications.
