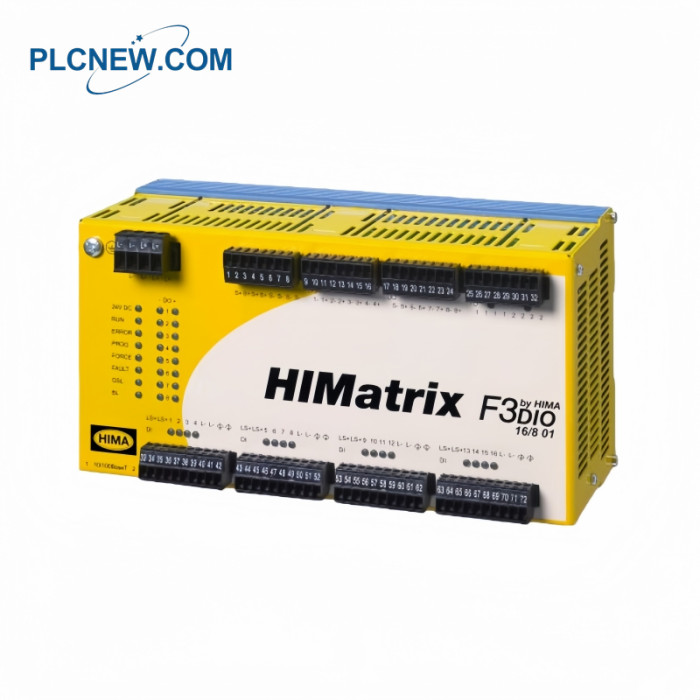

HIMA HIMatrix F3 DIO 16/8 01 Remote I/O Module
-Product Parameters-
Response Time: ≥ 10 ms
Operating Temperature: 0 … +60 °C
Storage Temperature: –40 … +85 °C
Ports: 2 × RJ‑45
Low-Level Voltage / Current Input:
• 15–30 V DC, ≥ 2 mA at 15 V
• Max. 5 V DC, max. 1.5 mA (1 mA at 5 V)
Switching Point (typical): 7.5 V
Switching Time: 250 µs
Leakage Current (low level): max. 1 mA at 2 V
Number of Outputs: 2 (non‑galvanically separated)
Output Voltage: ≥ L+ – 4 V
Output Current: approx. 60 mA
DO Voltage Drop: max. 1.5 V at 2 A
Total Permissible Current: max. 8 A
Switching Time: ≤ 100 µs
Behavior upon Overload: 2 × ≥ 19.2 V, short-circuit current 60 mA at 24 V
Lamp Load Max. : 25 W
Inductive Load Max. : 500 mH
The safety-related F3 DlO 16/8 01 remote l/0 is a compact system in a metal housing with16 digital inputs, 8 2-pole
digital outputs and 2 pulsed outputs. The 2-pole outputs consist of2 switches connected in series, one switching to L+
and the other switching to L-. The remote l/0 is available in various model variants for SlLworX and ELOP ll Factory, seeTable 4.
Remote l/Os are connected to individual HlMax or HlMatrix controllers via safeethernet. Theyare used to extend the l/O
level, but are not able to run any user program by themselves.
The remote l/O is suitable for mounting in Ex-zone 2, see Chapter 4.1.6.
The device is TÜV-certified for safety-related applications up to SIL 3 (lEC 61508, IEC 61511and lEC 62061), Cat. 4 and
PLe (EN ISO 13849-1) and SIL 4 (EN 50126, EN 50128 andEN 50129). Further safety standards, application standards and
test standards are specified in thecertificates available on the HlMA website.
