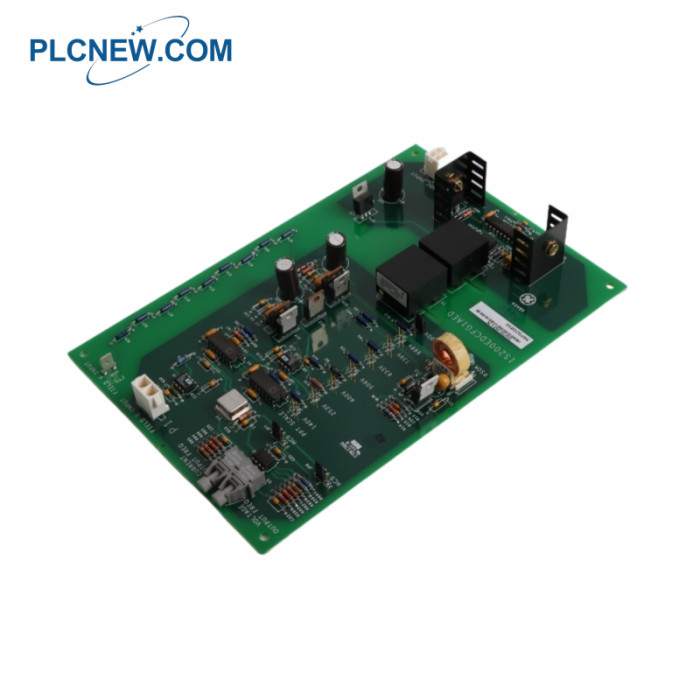

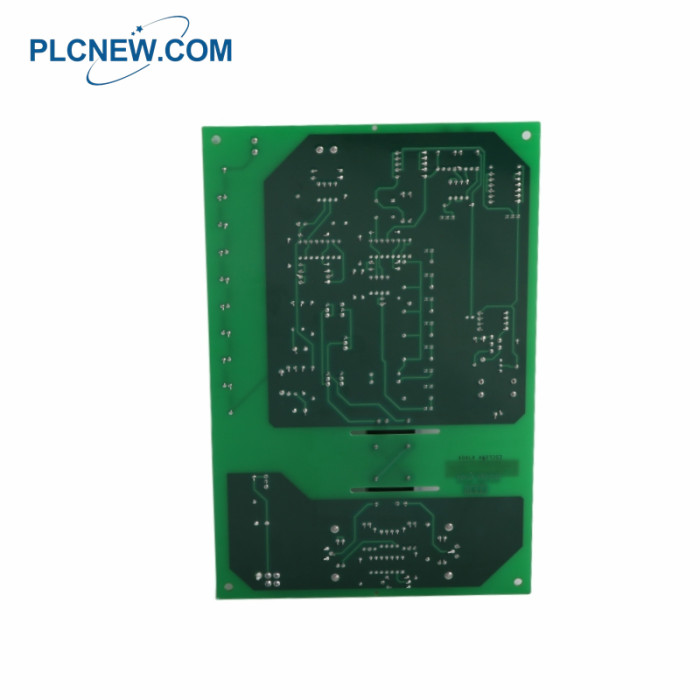

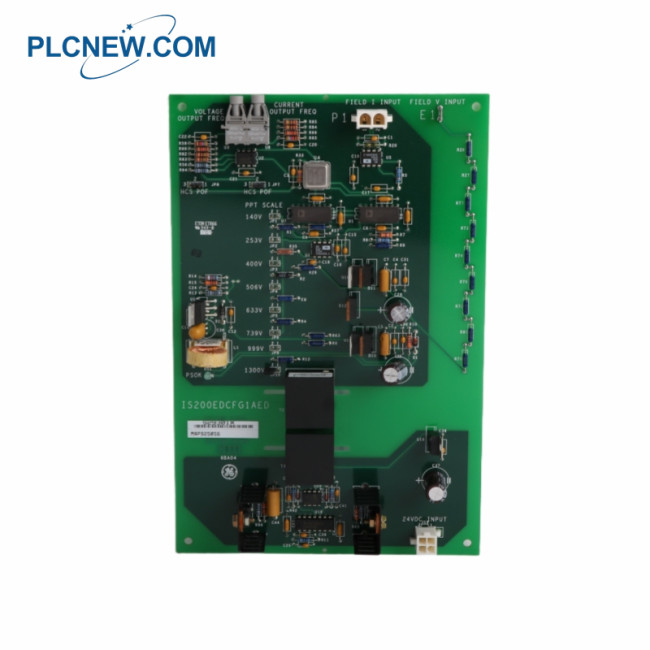

General Electric IS200EDCFG1AED Exciter DC Feedback Board
Product Parameters
IS200EDCFG1AED is an Exciter DC Feedback Board developed by GE. It is a part of the EX2100 control system.
The board performs precise measurements of field current and voltage at the SCR bridge, critical parameters for excitation control systems.
Utilizing a high-speed fiber-optic link, the board establishes communication with the EISB board in the control panel,
ensuring rapid and reliable data transmission.
|
Series: EX2100 |
|
Size: 17.8 cm high x 33.02 cm wide |
|
Input Voltage: 24 V DC |
|
Regulated Output Voltages: +15 V DC, –15 V DC, +5 V DC |
|
Status Indicator: Green PSOK (Power Supply OK) LED illuminates when ±15 V outputs are within specification. |
|
Supported Fiber Types: |
|
Plastic fiber: up to 10 meters |
|
Hard-clad silica fiber: up to 90 meters |
|
Minimum Bending Radius: 1.5 inches (for both fiber types) |
|
Connectors: |
|
J16: 24 V DC power input connector |
|
P1: Voltage input across field current shunt |
|
E1: Field voltage input (stab-on connector type) |
|
Field Current Measurement: Via DC shunt (signal up to 500 mV) |
|
Link Type: High-speed fiber-optic communication to EISB board |
|
Noise Immunity: High immunity to electromagnetic interference (EMI) |
|
Field Voltage Measurement: Across negative bridge terminal and positive current shunt terminal; scaled using jumper-selected resistors |
|
Voltage Scaling: Seven selector settings available to scale bridge voltage based on application |
|
|
