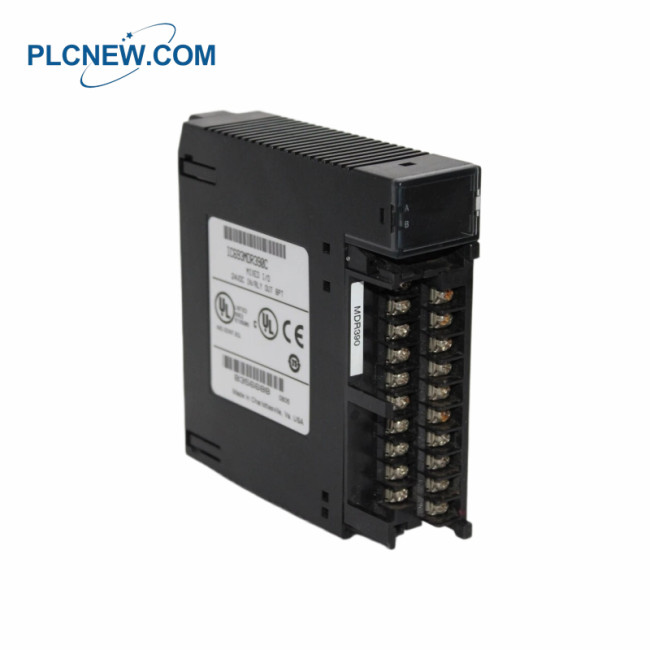

GE IC693MDR390 DC Input/Output Relay Module

Bently Nevada 330104-00-05-10-12-05 Proximity Probes

Details of the module

Manufacturer：GE Fanuc
Product Line：Series 90-30
Part Number：IC693MDR390
Weight：0.69 lbs (0.31 kg)
Input Rated Voltage：24 VDC
Input Voltage Range：–30 to +32 VDC
Nominal Input Voltage：24 VDC
Input Current：7.5 mA at Rated Voltage
Input Channels：8 (24 VDC Inputs)
Inputs per Module：8
Output Channels：8 Normally Open (N.O.) Contact Outputs
Outputs per Module：8
Output Rated Voltage：24 VDC; 120/240 VAC
Output Operating Voltage：5–30 VDC; 5–250 VAC, 50/60 Hz
Output Operating Voltage Range：5–30 VDC; 5–250 VAC
Output Nominal Voltage：24 VDC; 120/240 VAC
Maximum Load per Output：2 A
Maximum Load per Common：4 A
Maximum Load：2 A Maximum
Input On/Off Response Time：7 ms
Output On/Off Response Time：15 ms

The IC693MDR390 is a Series 90-30 PLC platform component module that functions as a combination of discrete input

and output modules. This module features Eight (8) discrete input channels that are designed to accept input signal

voltage ranges of -30 to +30 VDC with rated or nominal voltage of 24 VDC while the typical input current is 7.5 mA at

rated voltage. It also has Eight (8) discrete output channels in the form of Normally Open (N.O.) relay contacts designed

for voltage ranges of 5 to 30 VDC, 5-250 VAC along with a 50/60 Hz frequency with each output contact capable of 2

Amperes maximum load current and 4 Amperes, maximum current per common. The IC693MDR390 is a single slot

module that is installed to any I/O slot of a series 90-30 baseplate. It can be used with any Central Processing Unit

(CPU) modules such as embedded and modular CPUs. It may be installed in a local I/O baseplate, where the CPU is

installed, or to an expansion or remote I/O baseplate. The IC693MDR390 input channels have an On-state voltage

of 15-32 VDC and an On-state current of 4 mA while the Off-state voltage range is 0-5 VDC and an Off-state current

of 1.5 mA. The input channels have a typical response time of 7 ms for both On and Off signal transitions. Conversely,

the output channels have a typical response time of 15 ms for both signal transitions. This module has a backplane

current consumption of 80 mA when all IO is active and 70 mA with all output energized.

Frequently asked questions：

1.How many input and output channels does the IC693MDR390 have?
The IC693MDR390 has Eight (8) discrete inputs and Eight (8) Normally Open (N.O.) contact outputs.
2.What is the backplane current consumption of the IC693MDR390?
The IC693MDR390’s backplane current consumptions are 80 mA when all IO are active and 70 mA with all

output energized.
3.Does the IC693MDR390 supports installation to a baseplate with embedded CPU?
Yes. The IC693MDR390 supports all types of Series 90-30 baseplate and CPUs.

Product Applications
1. Power Generation Plants
2. Steel and Metallurgy Factories
3. Automotive Manufacturing Plants
4. Petrochemical and Oil & Gas Plants
5. Packaging and Material Handling Factories

Features and Usage
Typical Applications: Used to interface with pushbuttons, limit switches, solenoids, motor starters, and indicators.
Indicators: Features two rows of green LED status indicators on the front to show the ON/OFF state of each I/O point.
Mounting: Can be installed in any I/O slot of a Series 90-30 5-slot or 10-slot baseplate.
Protection: This module does not contain internal fuses; field devices must be powered by a user-supplied external source.
