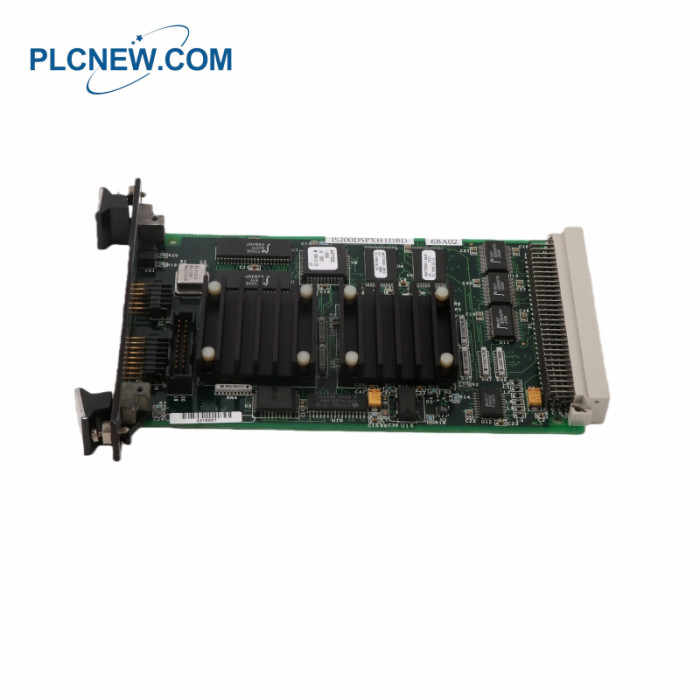

GE IS200DSPXH1DBD Printed Circuit Board

GE IS200DSPXH1DBD Printed Circuit Board

Details of the module

Part No: IS200DSPXH1DBD
Manufacturer: General Electric
Size: 33.0 cm high x 17.8 cm wide
Technology: Surface mount
OperatingTemperature :-30 to 65 oC
Product Type: DSP Control Board

The IS200DSPXH1DBD is a printed circuit board component manufactured and originally distributed by GE as part

of their Mark VI Speedtronic line. The Mark VI was created as a control system for gas and steam industrial turbine

systems, often used for energy systems. The IS200DSPXH1DBD specifically is used in Innovation Series drives and

EX2100 exciters. This IS200DSPXH1DBD printed circuit board product offering's greater Mark VI Series, as you might

have been able to deduce solely based off of its full extended product series title, exists as a significant functional

upgrade upon the previous industry-standard Mark V Turbine Control System Series of more or less the same full

extended product series title, as the Mark VI Series added the wind turbine-focused possible application onto the

gas and steam-based turbine environments established previously through this IS200DSPXH1DBD device's prior Mark V

Series mentioned before. This IS200DSPXH1DBD PCB's Mark VI Series is also seen as desirable due to its status as one

of the final-developed Mark Series utilizing the patented Speedtronic control system technology across a number of

product offerings.

Frequently asked questions：

1.What isIS200DSPXH1DBD?
It is a DSP control board developed by GE under the EX2100 series.
2.What functions does the P1 connector on the board support?
The P1 connector provides memory-mapped process bus address space with four chip select signals for interfaces

to bridge and customer I/O. It also includes controls for a standard UART serial interface, along with two additional

proprietary ISBus serial interfaces for ACL or local expansion functions.

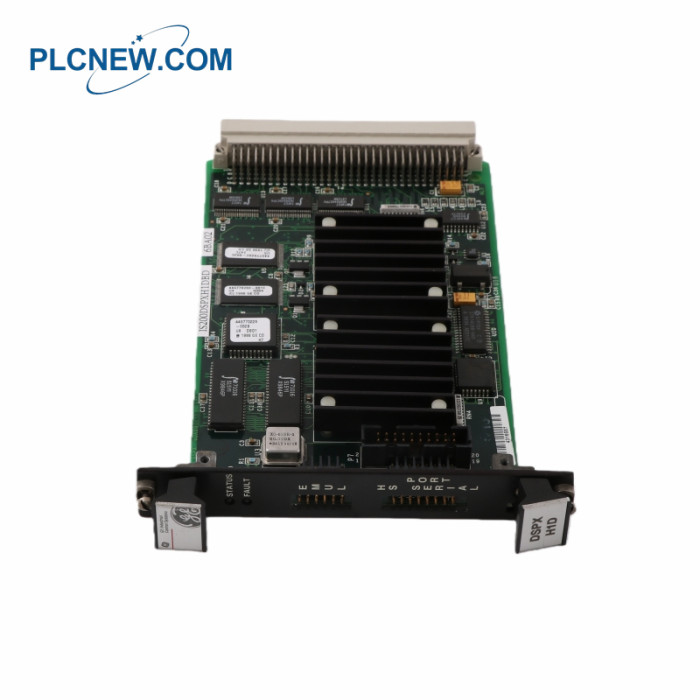

3.What is the role of the p5 emulator port located on the board's front panel?
The P5 emulator port acts as an interface to the TI emulator port, enabling emulation similar to JTAG and facilitating

FLASH programming for efficient memory programming.
