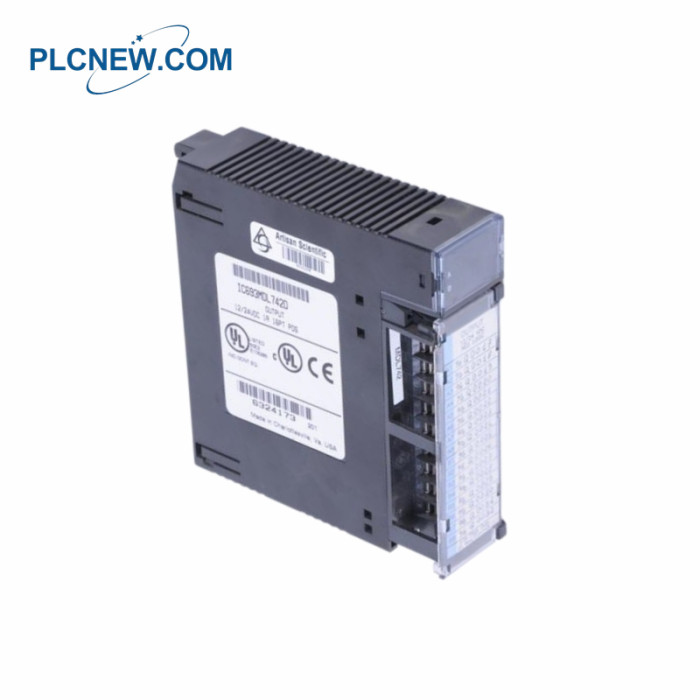

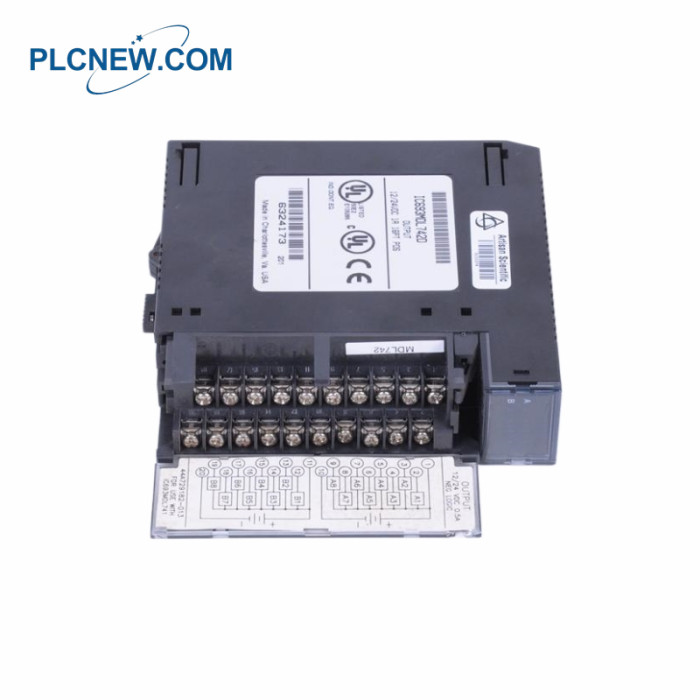

GE IC693MDL742 Positive Output Module

GE IC693MDL742 Positive Output Module

Details of the module

Manufacturer: GE Fanuc
Product Type: Digital I/O
Part Number: IC693MDL742
Product Description: Discrete output module
Number of Channels per Group: Eight (8)
Number of Output Groups: Two (2)
Output Signal Range: 12–24 VDC (+20%, –15%)
Output Voltage Range: 12–24 VDC with (+20%, –15%)
Nominal Input Voltage: 12 / 24 VDC
Nominal Output Voltage: 12 / 24 VDC
Peak Output Voltage Drop: 1.2 Volts
Output Voltage Drop (Max): 1.2 Volts
Current Draw: 130 mA (all outputs active)
Maximum On Response Time: 2 ms
Maximum Off Response Time: 2 ms
Off-State Leakage Current: 1 mA maximum
Relative Humidity: 5–95%

The IC693MDL742 is a Series 90-30 component module. This module is specifically a discrete output module with

integral Electronic Short Circuit Protection (ESCP). This module supports Positive logic wiring configuration and delivers

an output voltage range of 12-24 VDC, +20%, -15%. Similarly, it has output current ratings of 1 Ampere per point,

maximum; Maximum of 4 Amperes per group when operated at 50 Degree Celsius, and 3 Amperes per group at 60

Degree Celsius. The IC693MDL742 is installed to a Series 90-30 Baseplate. It occupies a single slot and may be installed

to any vacant slot except the Power Supply, CPU, and specialty module designated mounting location. There is no specific

limit to the number of allowed module instances. The actual limit depends on the supported I/O capacity of the host

processor, memory size, and the available baseplate slot. It can be used to energize loads such as motor starters,

solenoid-actuated devices, indicating lamps, relays, and similar devices. It comes with individual channel indicators that

depict the energization state of the output channel. The embedded Electronic Short Circuit Protection (ESCP) of this

module is designed to monitor the common signal of each group.

Frequently asked questions：
1.Does the IC693MDL742 come with individual output protection?
No. External fusing is not available to this module.
2.What is the purpose of the built-in Electronic Short Circuit Protection (ESCP)?
The IC693MDL742’s ESCP is used to monitor short circuit among output groups and protect the module from damage.
3.What is the rated output current of each of the module’s channels?
The module’s rated output current is 1 A.
4.Does the IC693MDL742 comes with an electronic short circuit protection?
Yes. The IC693MDL742 is provided with an electronic short circuit protection that protects the entire module

and provides indication.
5.How many baseplate slots does the IC693MDL742 occupy?
The IC693MDL742 occupies a single slot of the baseplate.
